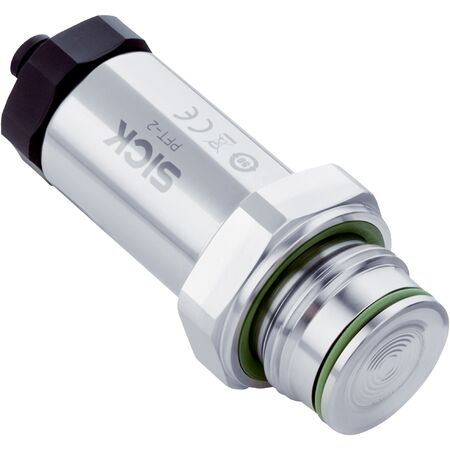

Pressure Transmitter PFT-23QEM | 0-2.5 Bar Range | 4-20 mA Output | IP66 & IP67 Rated | by SICK
The PFT-23QEM Pressure Transmitter is designed for precise gauge pressure measurement in both liquid and gaseous media, with a measuring range of 0 to 2.5 bar. Built for industrial applications, it features a robust stainless steel housing and offers a fast response time of approximately 15 ms. With an IP66 and IP67 enclosure rating, this sensor ensures reliable performance in harsh environments, making it ideal for process control and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar
- Measuring range: 0 bar to 2.5 bar (0 psi to 36.3 psi)
- Process temperature range: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Protection class III certified
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 bar to 2.5 bar (0 psi to 36.3 psi)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts made of 316L stainless steel with silicone oil internal transmission fluid
- Housing made of stainless steel 316L with IP66 and IP67 enclosure rating
- Overvoltage protection up to 39 V DC and dielectric strength of 500 V AC
- High accuracy of ≤ ±0.5% of span according to DIN EN 60770-1
- Fast response time of approximately 15 ms
- Long-term stability with less than 0.15% drift per year
- Wide ambient operating temperature range from -40°C to +70°C
- Shock and vibration resistant according to IEC standards
- Protection class III certified
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical connections to ensure safety and accuracy.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Use in environments with temperatures from -40°C to +100°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PFT-23QEM Pressure Sensor is available for immediate purchase, ideal for industrial process control and monitoring applications.
