Pressure Transmitter PFT-23QIM | 0-25 Bar Range | High Accuracy | IP66/IP67 Rated | by SICK

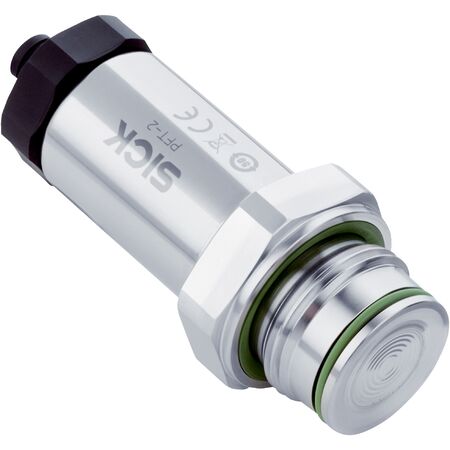

The PFT-23QIM Pressure Transmitter measures gauge pressure in both liquid and gaseous media, with a range of 0 to 25 bar and an impressive accuracy of ≤ ±0.5% of span. Designed for industrial process control and automation systems, this robust sensor features a stainless steel housing and is IP66/IP67 rated, making it perfect for harsh environments. With a fast response time of approximately 15 ms, it ensures reliable pressure monitoring in hydraulic and pneumatic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 25 bar (0 psi to 362.6 psi)
- Process temperature range: –40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class: III
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +70 °C
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 25 bar (0 to 362.6 psi)
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- M12 round 4-pin connector for electrical connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical connections to ensure safety and accuracy.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste through extended product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-23QIM Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable gauge pressure measurement.
