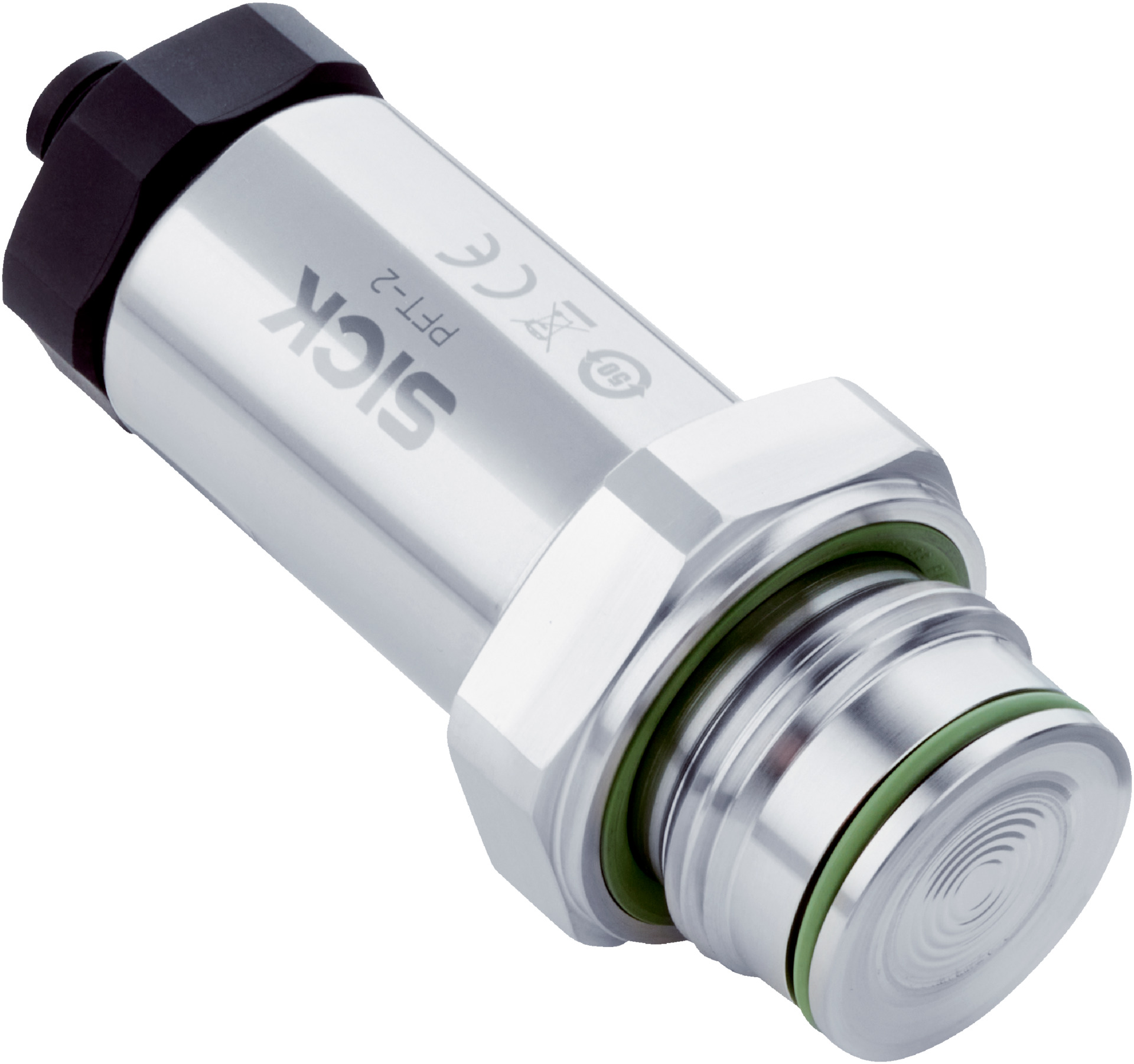

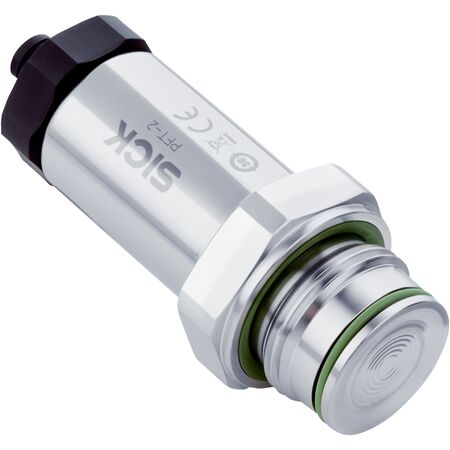

Pressure Transmitter PFT-23QKM | 0-60 Bar Gauge Pressure | High Accuracy | IP66/IP67 Rated | by SICK
The Pressure Transmitter PFT-23QKM measures gauge pressure from 0 to 60 bar, making it ideal for industrial process control of liquid and gaseous media. With a high accuracy of ≤ ± 0.5% of span and a fast response time of approximately 15 ms, this robust sensor is perfect for hydraulic and pneumatic systems monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 60 bar (0 psi to 870.2 psi)
- Process temperature range: -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Accuracy: ≤ ± 0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: < 0.15% within nominal measuring range
- Operating ambient temperature: -40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 60 bar
- Suitable for liquid and gaseous media
- High accuracy of ≤ ± 0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- Wide operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Hydraulic and pneumatic systems monitoring
- Pressure measurement in manufacturing and automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFT-23QKM Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise pressure measurement.
