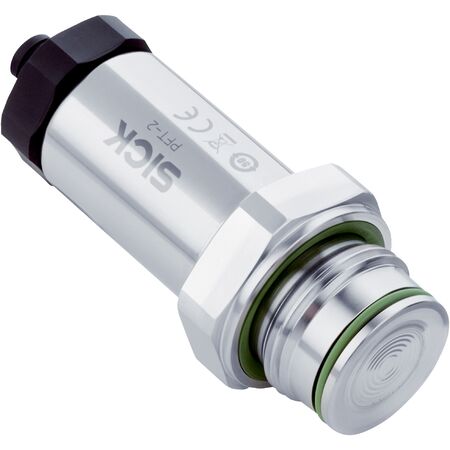

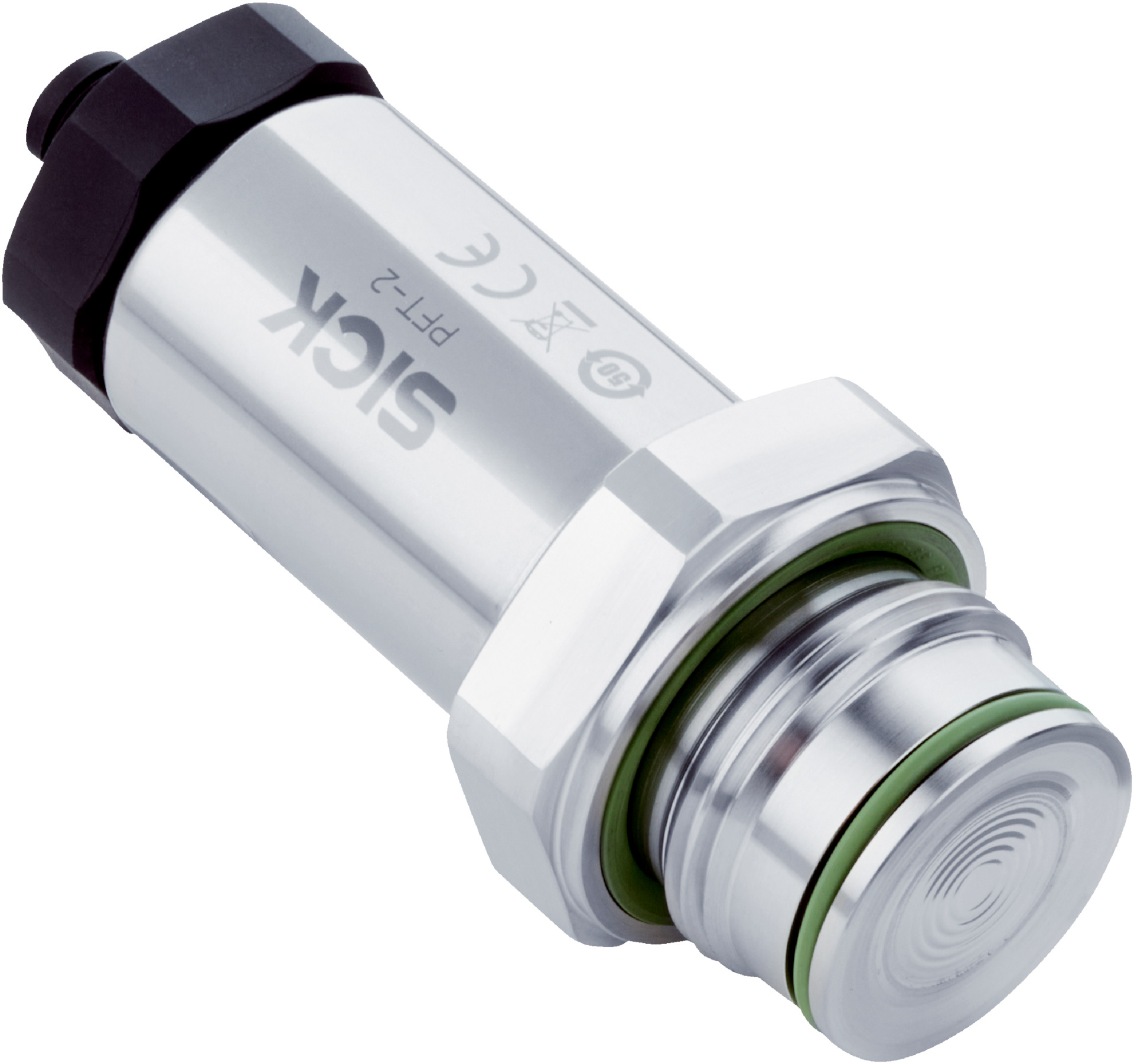

Pressure Transmitter PFT-2C5CM | 0-0.4 Bar Gauge Pressure | High Accuracy | IP66/IP67 Rated | by SICK
The PFT-2C5CM Pressure Transmitter measures gauge pressure from 0 to 0.4 bar, making it ideal for both liquid and gaseous media. With a high accuracy of ≤ ±0.5% of span and a fast response time of approximately 15 ms, this sensor is perfect for industrial process control and monitoring. Its robust stainless steel housing ensures durability, while the IP66/IP67 rating provides excellent protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Process temperature range: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class: Class III
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10%-90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- M12 round 4-pin connector for electrical connection
- Temperature range from -40 °C to +100 °C for process temperature
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical connections to ensure safety and accuracy.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Environmental and laboratory pressure measurements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-2C5CM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
