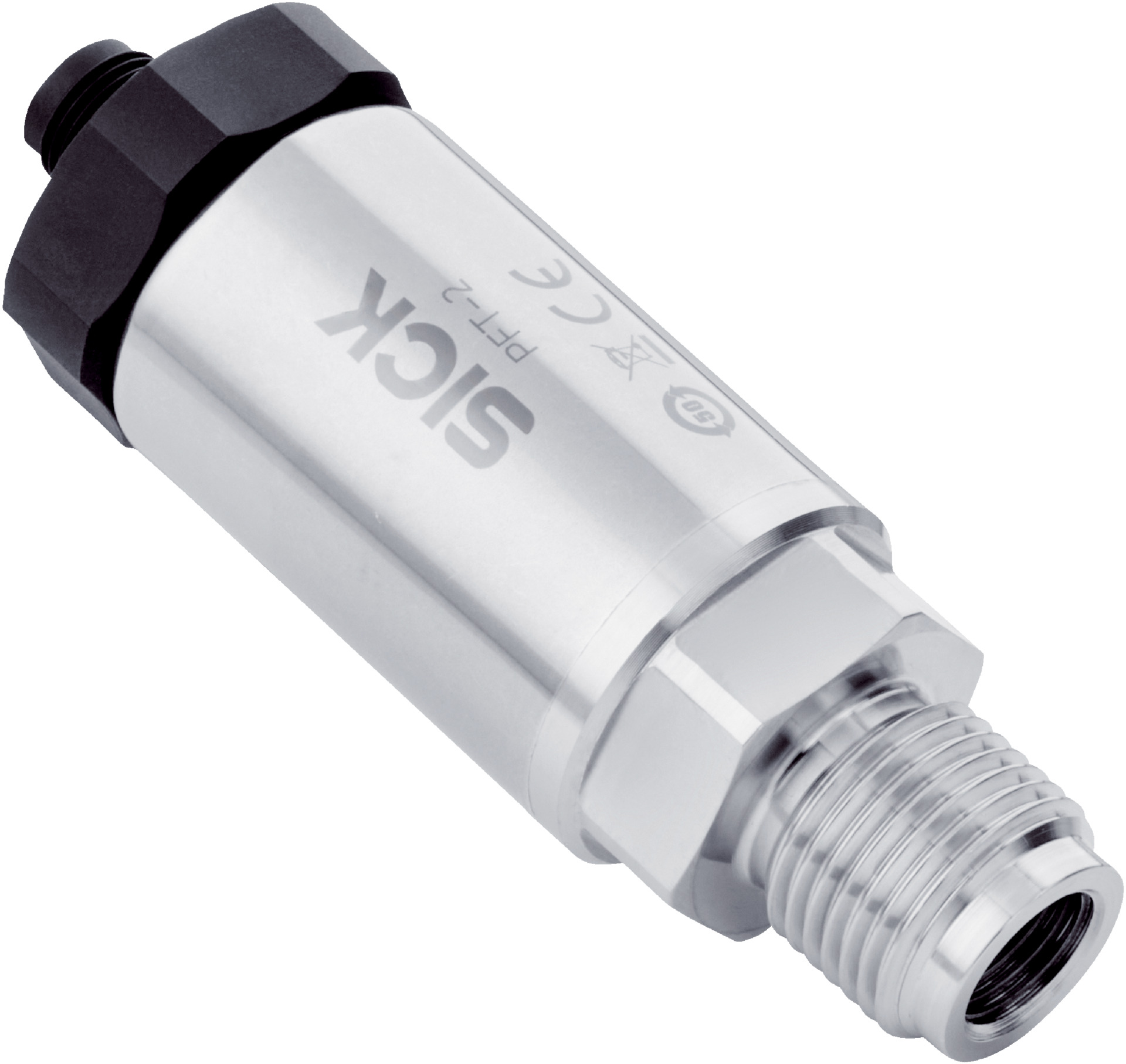

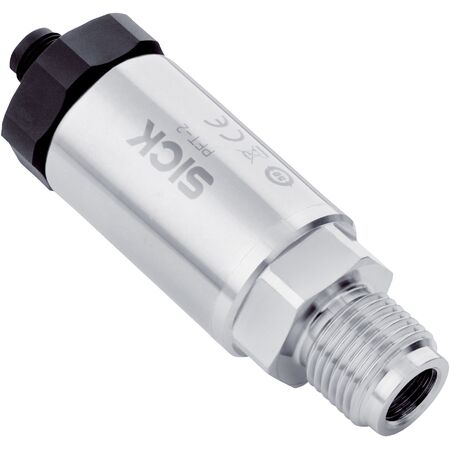

Pressure Transmitter PFT-2DNCM | 0-0.4 Bar Gauge Pressure | High Accuracy | IP66/IP67 Rated | by SICK
The PFT-2DNCM Pressure Transmitter is designed for precise gauge pressure measurement in both liquid and gaseous media, with a measuring range of 0 to 0.4 bar. Built for industrial applications, it features a robust stainless steel housing, high accuracy of ≤ ±0.5% of span, and a fast response time of approximately 15 ms. Ideal for process control and monitoring, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Process temperature range: -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Process connection: G ½ external + G ¼ internal (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class: III
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +70 °C
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- M12 round 4-pin connector for electrical connection
- Wide operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical connections to ensure safety and accuracy.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control and monitoring
- Hydraulic and pneumatic systems
- Environmental and laboratory pressure measurements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 12 V DC to 35 V DC supply voltage
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-2DNCM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
