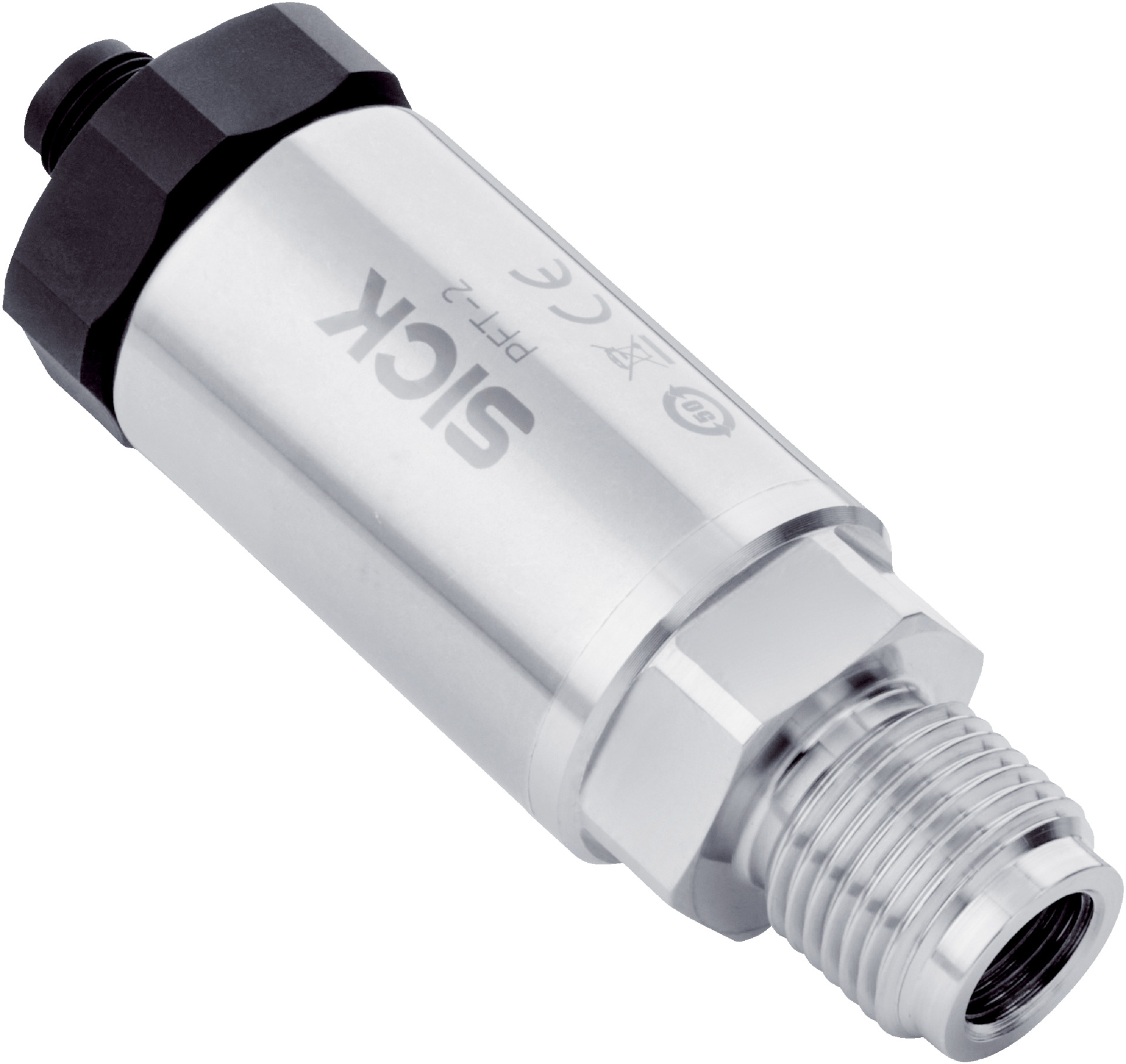

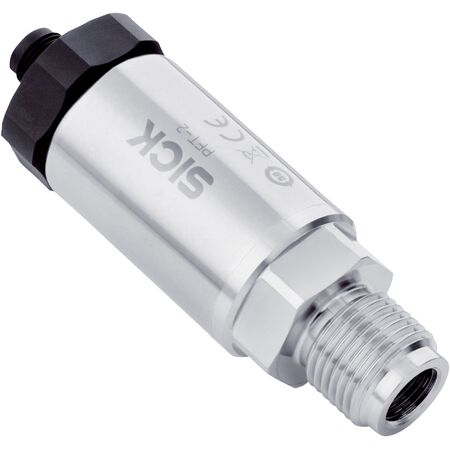

Pressure Transmitter PFT-2DNEM | 0-2.5 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2DNEM Pressure Transmitter measures gauge pressure in both liquid and gaseous media, with a range of 0 to 2.5 bar. Designed for industrial process control and automation, it features a robust stainless steel housing, high accuracy of ≤ ± 0.5% of span, and a fast response time of approximately 15 ms. Ideal for hydraulic and pneumatic systems, this sensor ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 2.5 bar (0 psi to 36.3 psi)
- Process temperature: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ external + G ¼ internal (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class: III
- Accuracy: ≤ ± 0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +70 °C
- Storage temperature: -40 °C to +70 °C (flush-mounted membrane and cooling element -20 °C to +100 °C)
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Pressure range from 0 to 2.5 bar (0 to 36.3 psi)
- Process temperature range from -40 °C to +100 °C
- Output signal 4 mA to 20 mA, 2-wire
- High accuracy ≤ ± 0.5% of span
- Fast response time approx. 15 ms
- Robust stainless steel 316L housing and wetted parts
- IP66 and IP67 rated enclosure for harsh environments
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control
- Hydraulic and pneumatic systems
- Automation and monitoring systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS to limit hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK PFT-2DNEM Pressure Sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise pressure measurement.
