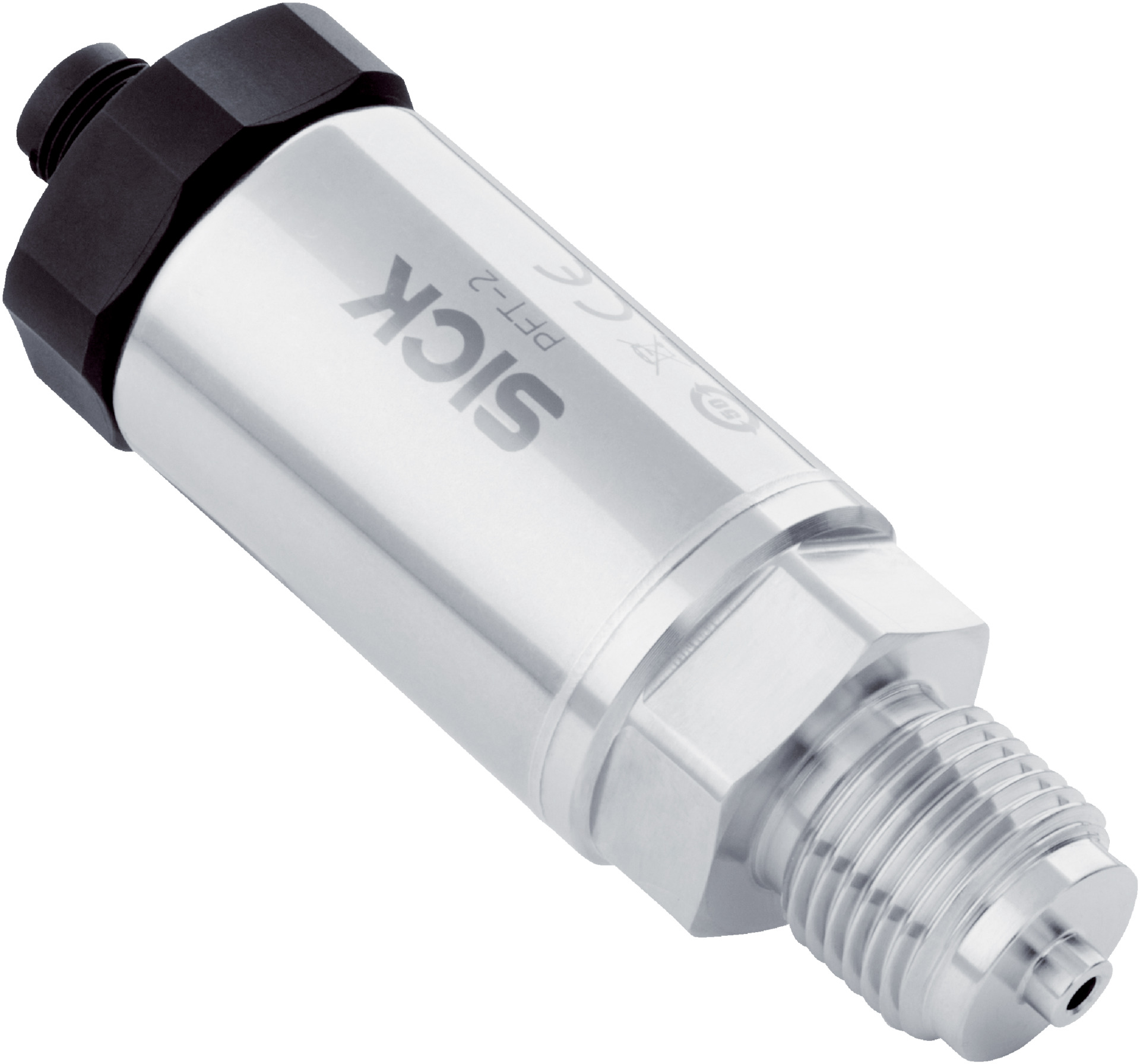

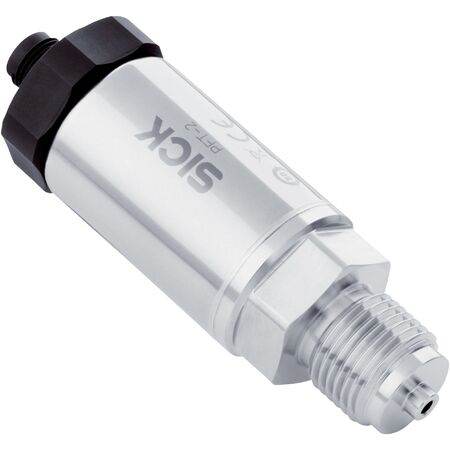

Pressure Transmitter PFT-2DUCM | 0-0.4 Bar Gauge Pressure | 4-20mA Output | IP66/IP67 Rated | by SICK
The PFT-2DUCM Pressure Transmitter is designed for precise gauge pressure measurement in liquid and gaseous media, with a measuring range of 0 to 0.4 bar. Built for industrial process control, it features a robust stainless steel housing and a fast response time of approximately 15 ms, ensuring reliable performance in demanding environments from -40°C to +100°C. Ideal for applications requiring high accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 0.4 bar (0 psi to 5.8 psi)
- Process temperature range: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ B (EN 837)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67
- Protection class III
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Shock load: Class 6M4 IEC 60721-3-6 (50 g, 2.3 ms)
- Vibration load: Class 4M8 IEC 60271-3-4 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ B (EN 837) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L with silicone oil internal transmission fluid
- Supply voltage range: 12 V DC to 35 V DC with overvoltage protection at 39 V DC
- High accuracy ≤ ±0.5% of span (DIN EN 60770-1)
- Fast response time approx. 15 ms
- Long-term stability with less than 0.15% drift per year
- Enclosure rating IP66 and IP67 for robust protection
- Shock and vibration resistant according to IEC standards
- Certified with CE, UK, ACMA, Moroccan, China-RoHS, cULus, and RoHS compliance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor wiring and calibration to ensure accurate and safe operation.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Environments with temperature range from -40°C to +100°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 2-wire 4-20 mA output
- Compliant with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFT-2DUCM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise gauge pressure measurement.
