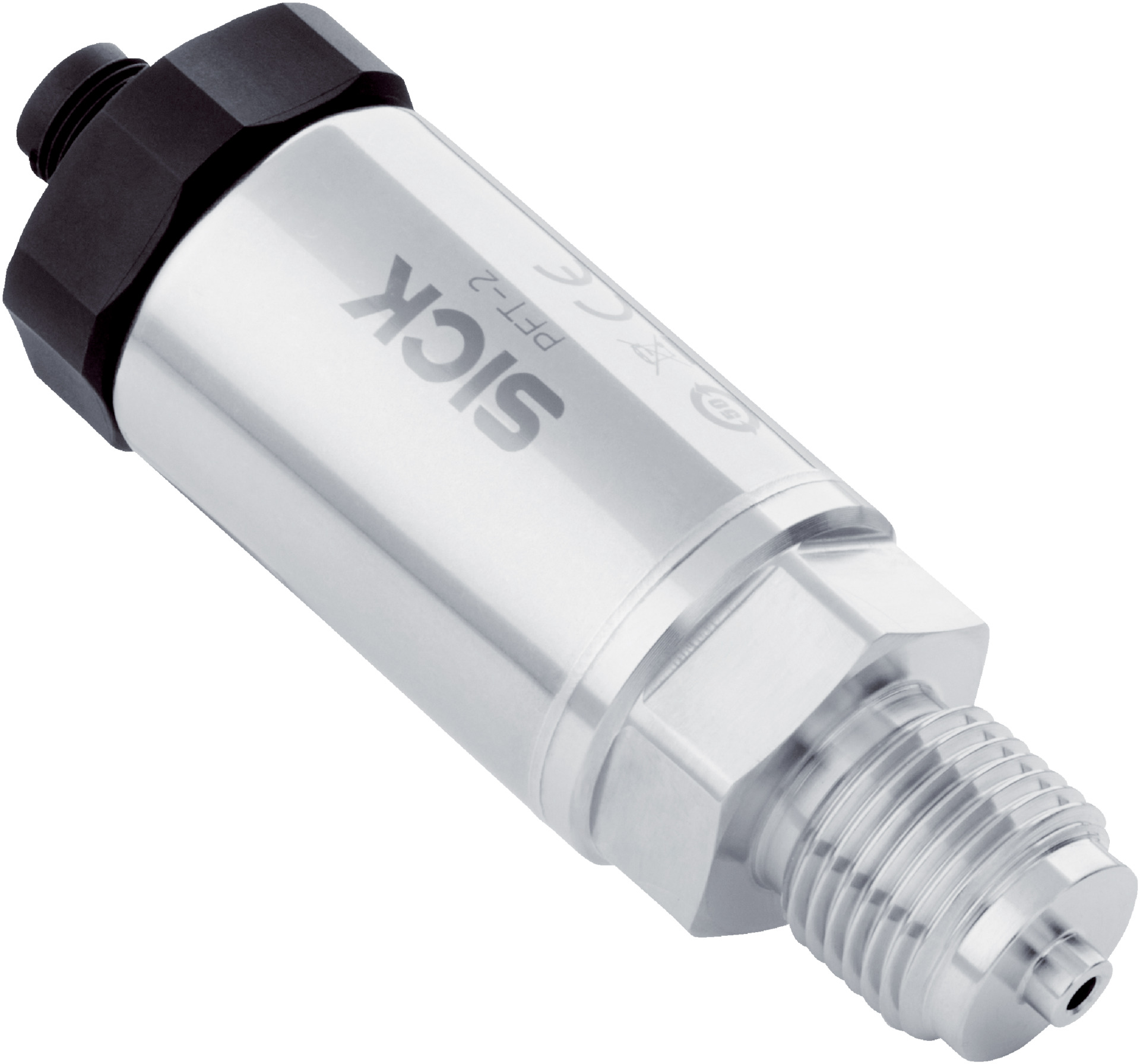

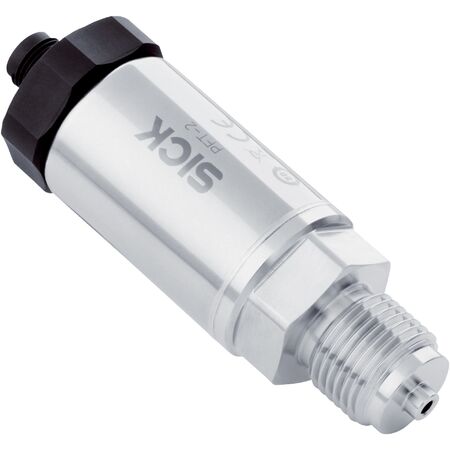

Pressure Transmitter PFT-2DUIM | 0-25 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2DUIM Pressure Transmitter measures gauge pressure from 0 to 25 bar, making it ideal for industrial process monitoring of both liquid and gaseous media. With a high accuracy of ≤ ±0.5% of span and a fast response time of approximately 15 ms, this robust sensor features a durable 316L stainless steel housing and is rated IP66 and IP67 for dust and water protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar (0 psi to 362.6 psi)
- Medium: Liquid and gaseous
- Pressure type: Gauge pressure
- Process temperature range: –40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Process connection: G ½ B (EN 837)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Connection type: M12 round connector, 4-pin
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% per 10 K
- Operating ambient temperature: –40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- Wide operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial process monitoring for liquid and gaseous media
- Pressure measurement in hydraulic and pneumatic systems
- Use in environments requiring robust and accurate gauge pressure sensing
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 61326 for EMC requirements
Environmental Benefits
- Durable stainless steel construction reduces waste through extended product life
- Low power consumption with 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFT-2DUIM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring reliable pressure measurement.
