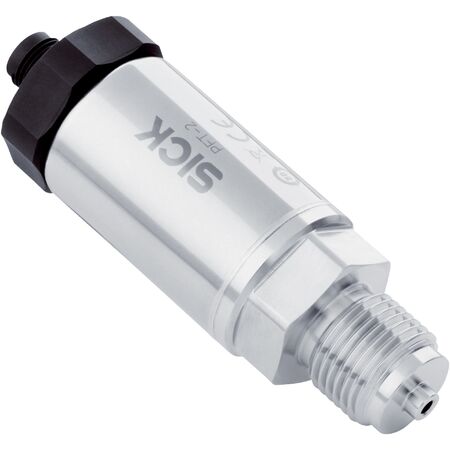

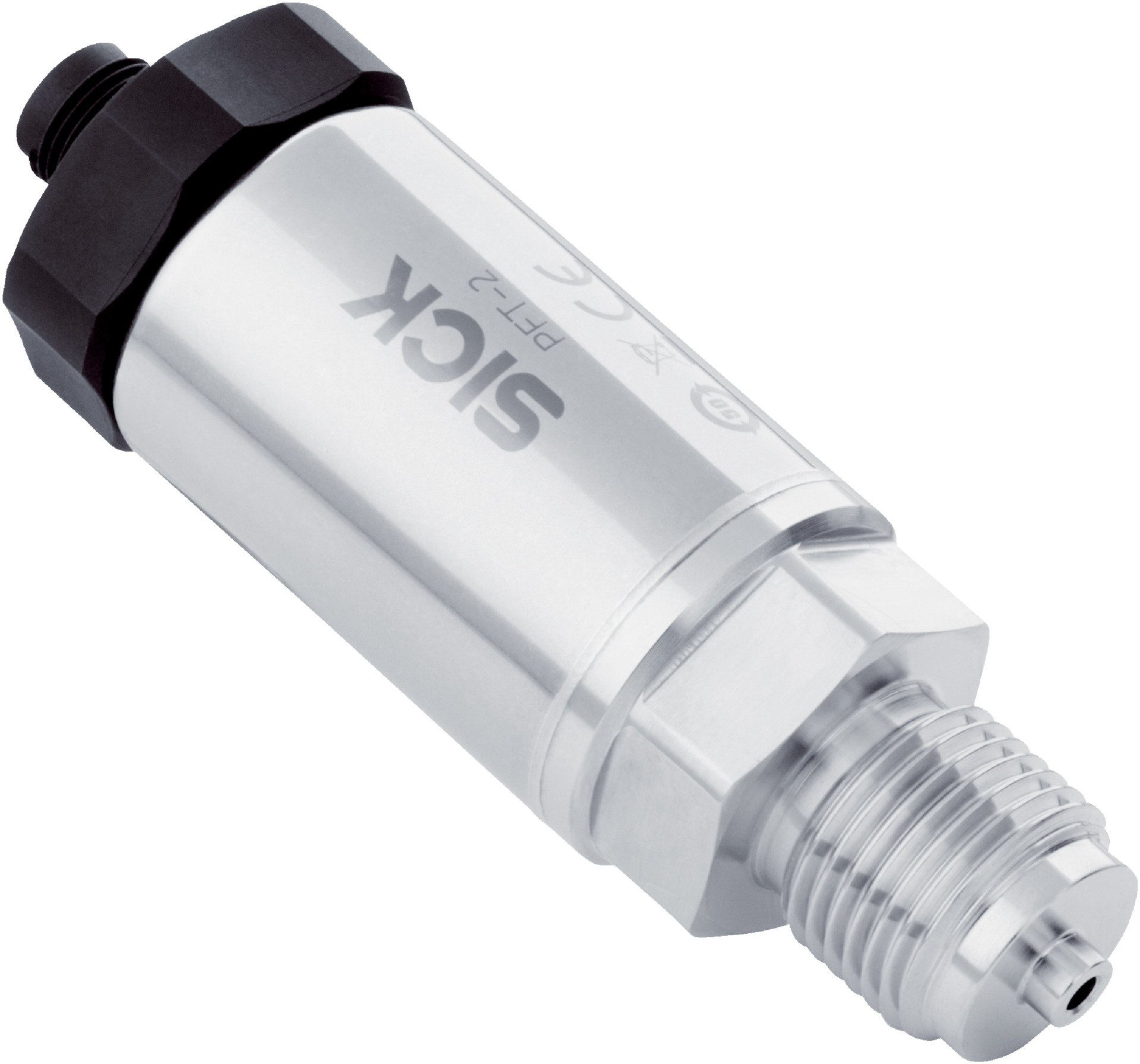

Pressure Transmitter PFT-2DUKM | 0-60 Bar Gauge Pressure | 4-20mA Output | IP66 & IP67 Rated | by SICK
The Pressure Transmitter PFT-2DUKM is designed for precise gauge pressure measurement from 0 to 60 bar, making it ideal for industrial process control of liquids and gases. With a robust stainless steel housing and an IP66/IP67 rating, it ensures durability and reliability in demanding environments. Featuring a 4-20mA output signal, this sensor is perfect for hydraulic and pneumatic systems requiring high accuracy and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 60 bar (0 psi to 870.2 psi)
- Process temperature range: -40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + – 12 V) / 0.022 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ B (EN 837)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Protection class III
- Accuracy: ≤ ± 0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 60 bar
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ B (EN 837)
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 316L
- Overvoltage protection up to 39 V DC
- Enclosure rating IP66 and IP67 for dust and water resistance
- High accuracy ≤ ± 0.5% of span
- Fast response time approx. 15 ms
- Long-term stability with less than 0.15% drift per year
- Wide operating temperature range from -40 °C to +70 °C
- Shock and vibration resistant according to IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Use in environments requiring high accuracy and durability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFT-2DUKM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
