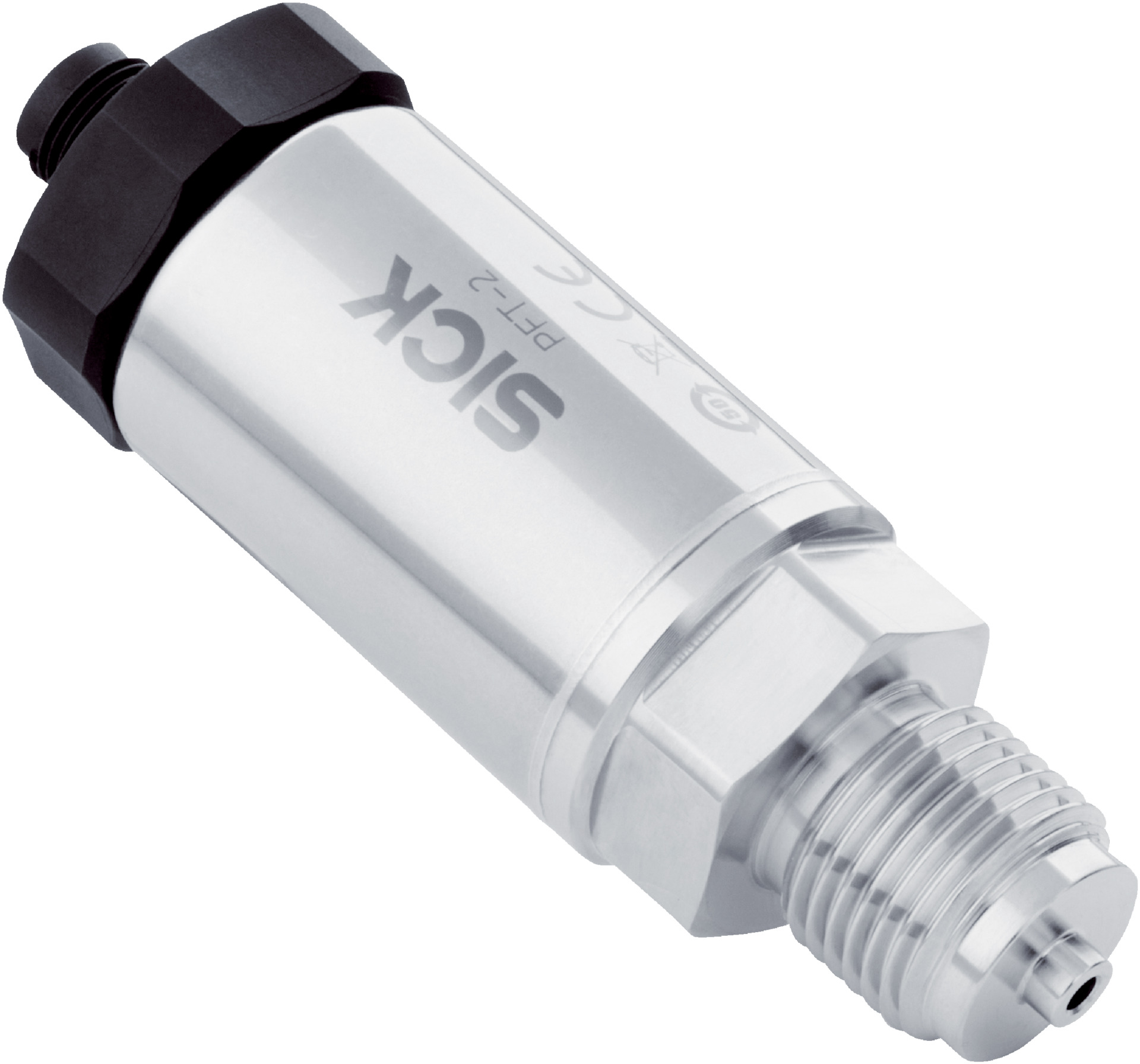

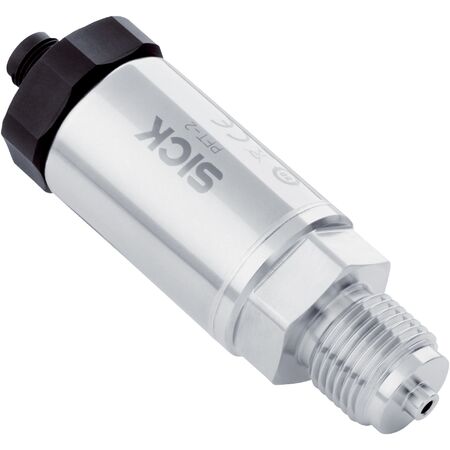

Pressure Transmitter PFT-2DULM | 0-100 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2DULM Pressure Transmitter measures gauge pressure from 0 to 100 bar, making it ideal for industrial process control of liquids and gases. With a high accuracy of ≤ ±0.5% of span and a fast response time of approximately 15 ms, this robust sensor features a durable stainless steel housing and is IP66/IP67 rated for dust and water protection. Perfect for environments requiring reliability and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 100 bar (0 psi to 1450.4 psi)
- Pressure type: Gauge pressure
- Process temperature range: –40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection at 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Connection type: M12 round connector, 4-pin
- Process connection: G ½ B (EN 837)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 100 bar (0 to 1450.4 psi)
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and wetted parts
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- Temperature range from –40 °C to +100 °C for process temperature
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Use in environments requiring high accuracy and durability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste by extending product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PFT-2DULM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
