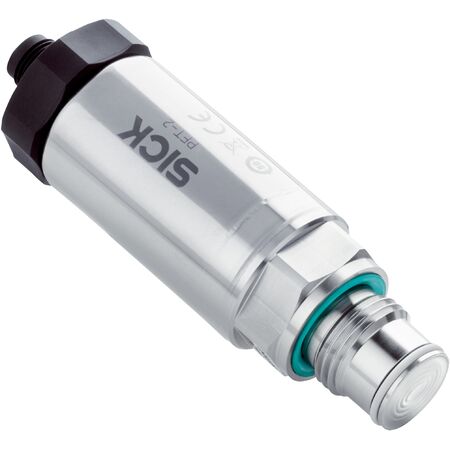

Pressure Transmitter PFT-2LUKM | 0-60 Bar Gauge Pressure | High Accuracy | IP66 & IP67 Rated | by SICK
The PFT-2LUKM Pressure Transmitter measures gauge pressure from 0 to 60 bar, making it ideal for industrial process control of liquid and gaseous media. With a high accuracy of ≤ ± 0.5% of span and a fast response time of approximately 15 ms, this robust sensor features a durable stainless steel 316L housing and is IP66 and IP67 rated for dust and water protection. Perfect for applications requiring precise pressure monitoring in hydraulic and pneumatic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 60 bar (0 psi to 870.2 psi)
- Process temperature range: –40 °C to +100 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Housing material: Stainless steel 316L
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Protection class: Class III
- Accuracy: ≤ ± 0.5% of span (DIN EN 60770-1)
- Response time (10% to 90%): Approx. 15 ms
- Long-term drift/one-year stability: < 0.15%
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 80mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 60 bar
- Suitable for liquid and gaseous media
- High accuracy of ≤ ± 0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated enclosure for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- Temperature range operation from –40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Use in environments requiring high accuracy pressure measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste through long service life
- Low power consumption with 2-wire 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PFT-2LUKM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
