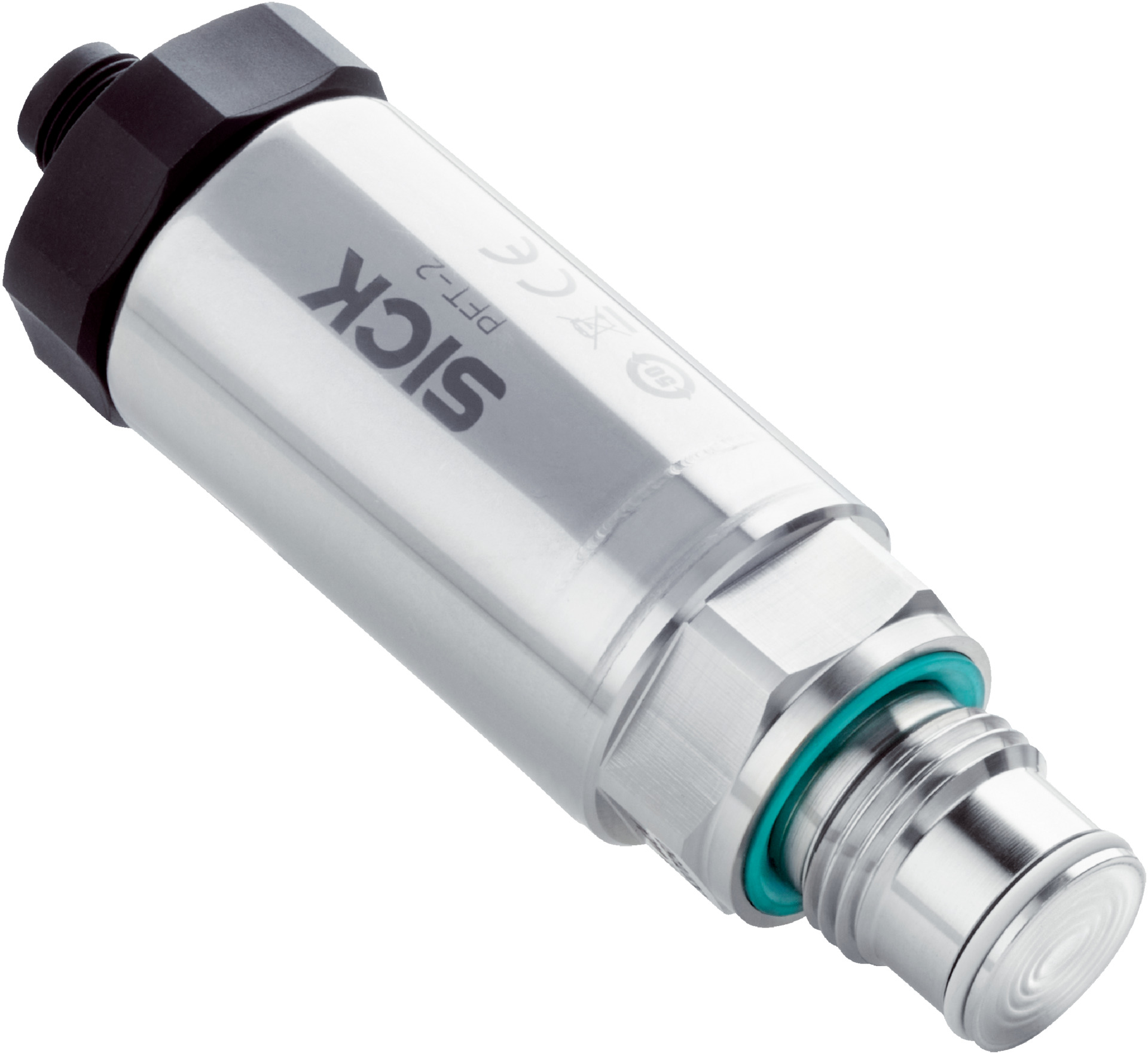

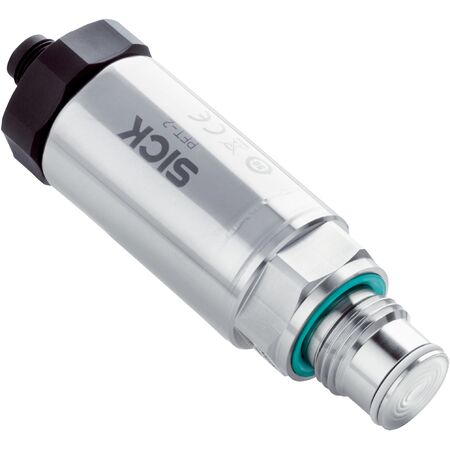

Pressure Transmitter PFT-2LULM | 0-100 Bar Gauge Pressure | IP66 & IP67 Rated | by SICK
The PFT-2LULM Pressure Transmitter measures gauge pressure from 0 to 100 bar, making it ideal for industrial process control of liquid and gaseous media. With a high accuracy of ≤ ±0.5% of span and a fast response time of approximately 15 ms, this robust sensor is built for environments requiring precise pressure measurement, ensuring reliability and durability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 100 bar (0 psi to 1450.4 psi)
- Pressure type: Gauge pressure
- Process temperature range: -40 °C to +100 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 12 V DC to 35 V DC
- Process connection: G ½ flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Silicone oil
- Electrical safety: Overvoltage protection at 39 V DC
- Dielectric strength: 500 V AC
- Enclosure rating: IP66 and IP67
- Accuracy: ≤ ±0.5% of span (DIN EN 60770-1)
- Response time: Approx. 15 ms
- Long-term drift: < 0.15% within nominal measuring range
- Temperature coefficient: < 0.15% per 10 K
- Operating ambient temperature: -40 °C to +70 °C
- Shock load: Class 6M4 (50 g, 2.3 ms)
- Vibration load: Class 4M8 (5 g at 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 100 bar
- Suitable for liquid and gaseous media
- High accuracy of ≤ ±0.5% of span
- Fast response time of approximately 15 ms
- Robust stainless steel 316L housing and process connection
- IP66 and IP67 rated for dust and water protection
- Overvoltage protection up to 39 V DC
- Long service life with minimum 10 million load cycles
- M12 round 4-pin connector for electrical connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Use in environments requiring high accuracy pressure measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste through long service life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS directive ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PFT-2LULM Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
