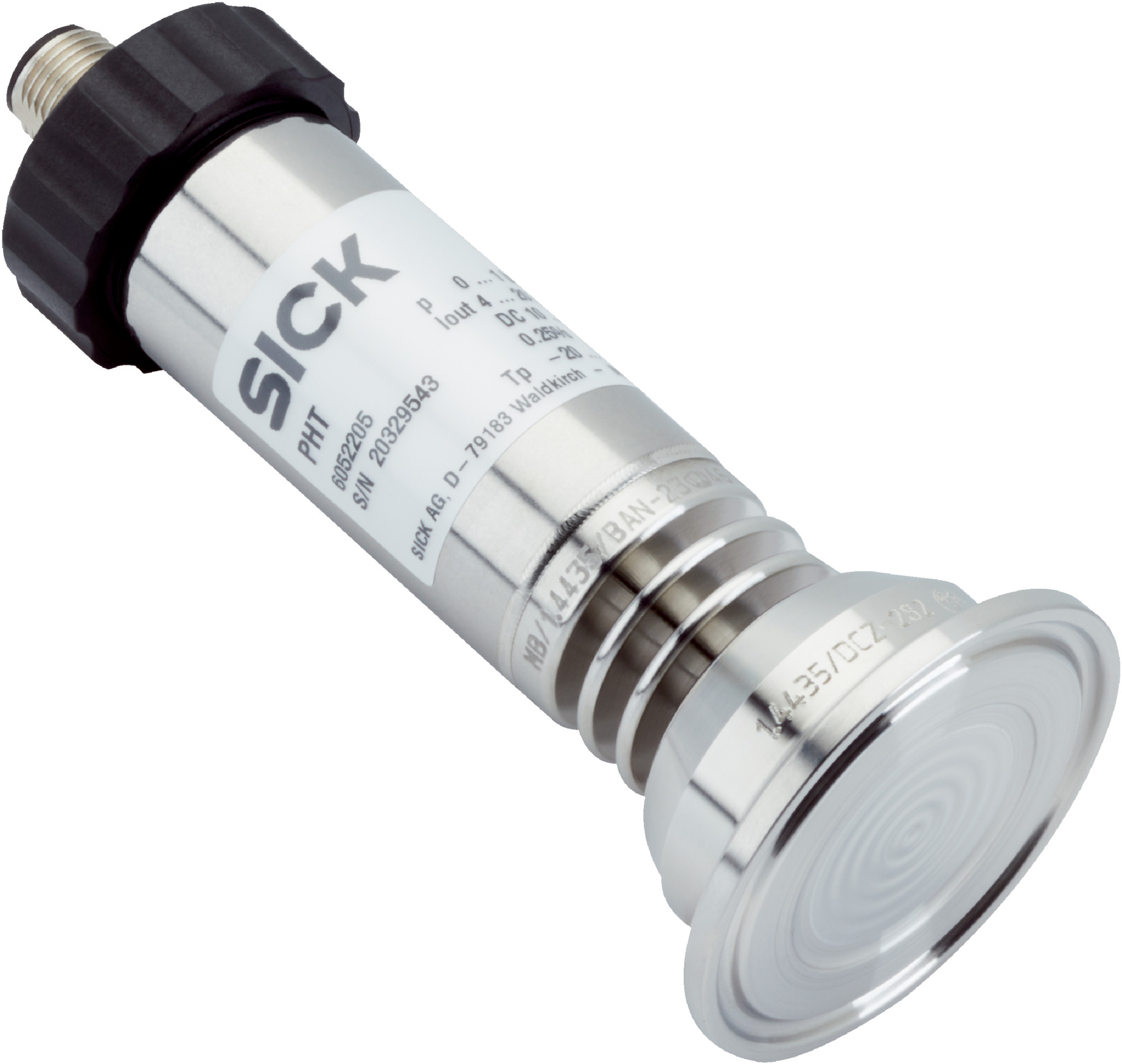

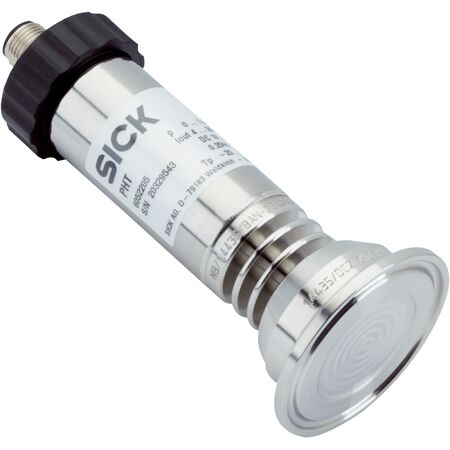

Pressure Transmitter PHT-CB010ST10S0AMS0Z | Measures -1 to 9 Bar | IP67 Rated | by SICK
The Pressure Transmitter PHT-CB010ST10S0AMS0Z is designed for accurate measurement of compound pressure in both liquid and gaseous media, with a range of -1 bar to 9 bar. Ideal for industrial process control and applications in the food and pharmaceutical industries, it features a durable stainless steel housing and FDA-approved internal fluid, ensuring safety and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Compound pressure
- Measuring range: -1 bar to 9 bar
- Process temperature: -20 °C to +150 °C
- Maximum ohmic load RA: 4 mA to 20 mA, 2-wire (RA ≤ (L + -10 V) / 0.02 A [Ohm])
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Tri-Clamp 1 ½" (DIN 32676)
- Wetted parts: 316L stainless steel
- Internal transmission fluid: Synthetic oil, FDA approved
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Non-linearity: ≤ ± 0.2% of span (BFSL)
- Accuracy: ≤ ± 0.5% of span (optional 0.25%)
- Non-repeatability: ≤ ± 0.1% of span
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2% of span per year
- Operating ambient temperature: -20 °C to +80 °C
- Storage temperature: -40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.5 kg
Key Features
- Measures compound pressure from -1 bar to 9 bar
- Suitable for liquid and gaseous media
- Process temperature range from -20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Tri-Clamp 1 ½" (DIN 32676) process connection
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2% span drift per year
- High accuracy with optional 0.25% span
- Fast response time ≤ 10 ms
- MTTF of 403 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and process instrumentation to ensure safety and compliance with local regulations.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring compound pressure measurement
- Food and pharmaceutical industry applications due to FDA approved internal fluid
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing ensures long product life reducing waste
- FDA approved synthetic oil supports safe use in food and pharmaceutical industries
- Low power consumption with 4-20 mA output signal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-CB010ST10S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and hygienic applications in food and pharmaceutical industries.
