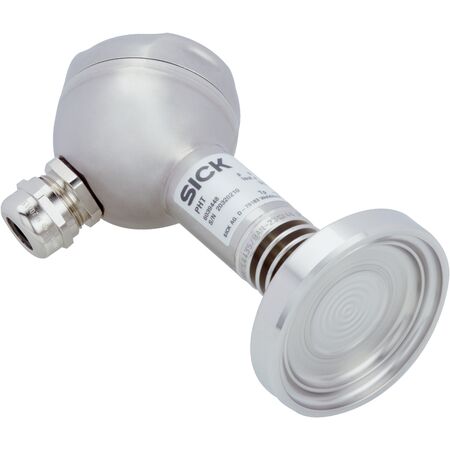

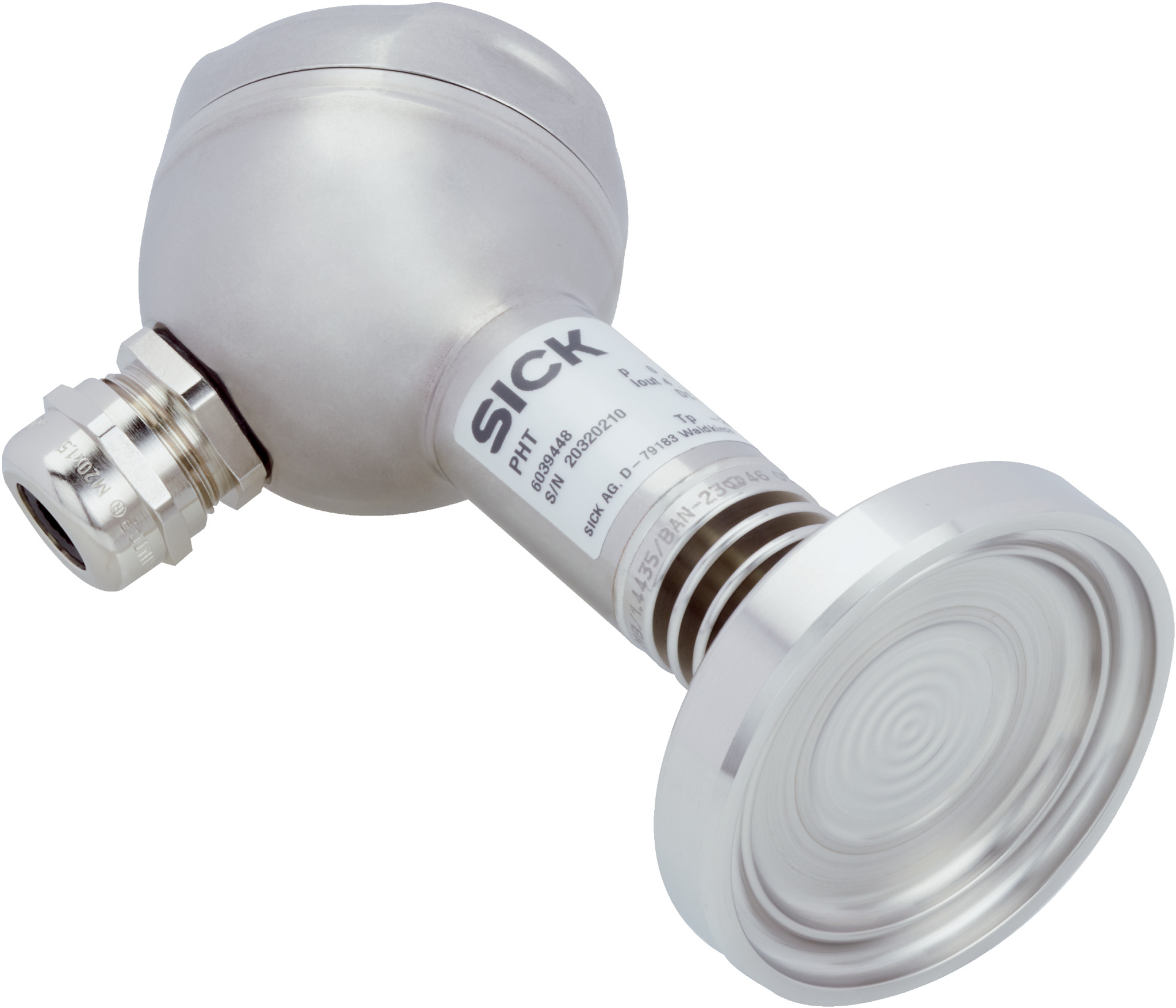

Pressure Transmitter PHT-RB025S650S0AFT0Z | 0-25 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RB025S650S0AFT0Z measures gauge pressure from 0 to 25 bar, making it ideal for industrial process control and food industry applications. With a robust stainless steel housing and FDA-approved internal fluid, it ensures high accuracy and stability, while the IP67 rating provides excellent protection against dust and water. Perfect for precise pressure monitoring in liquids and gases.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 25 bar
- Pressure type: Gauge pressure
- Output signal: 4 mA to 20 mA, 2-wire
- Process temperature: –20 °C to +150 °C
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit protection, reverse polarity protection
- Dielectric strength: 500 V DC
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Non-linearity: ≤ ± 0.2 % of span
- Non-repeatability: ≤ ± 0.1 % of span
- Response time (10 % to 90 %): ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Operating ambient temperature: –20 °C to +80 °C
- Storage temperature: –40 °C to +100 °C
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 150mm x 80mm x 80mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 to 25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 50 form A with union nut
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571 with field housing connection
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- Mean time to failure (MTTF) of 403 years
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquids and gases
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing and components extend product life reducing waste
- High accuracy and stability reduce need for frequent recalibration and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK PHT-RB025S650S0AFT0Z Pressure Sensor is available for immediate purchase. Ideal for industrial and food processing applications requiring precise pressure measurement.
