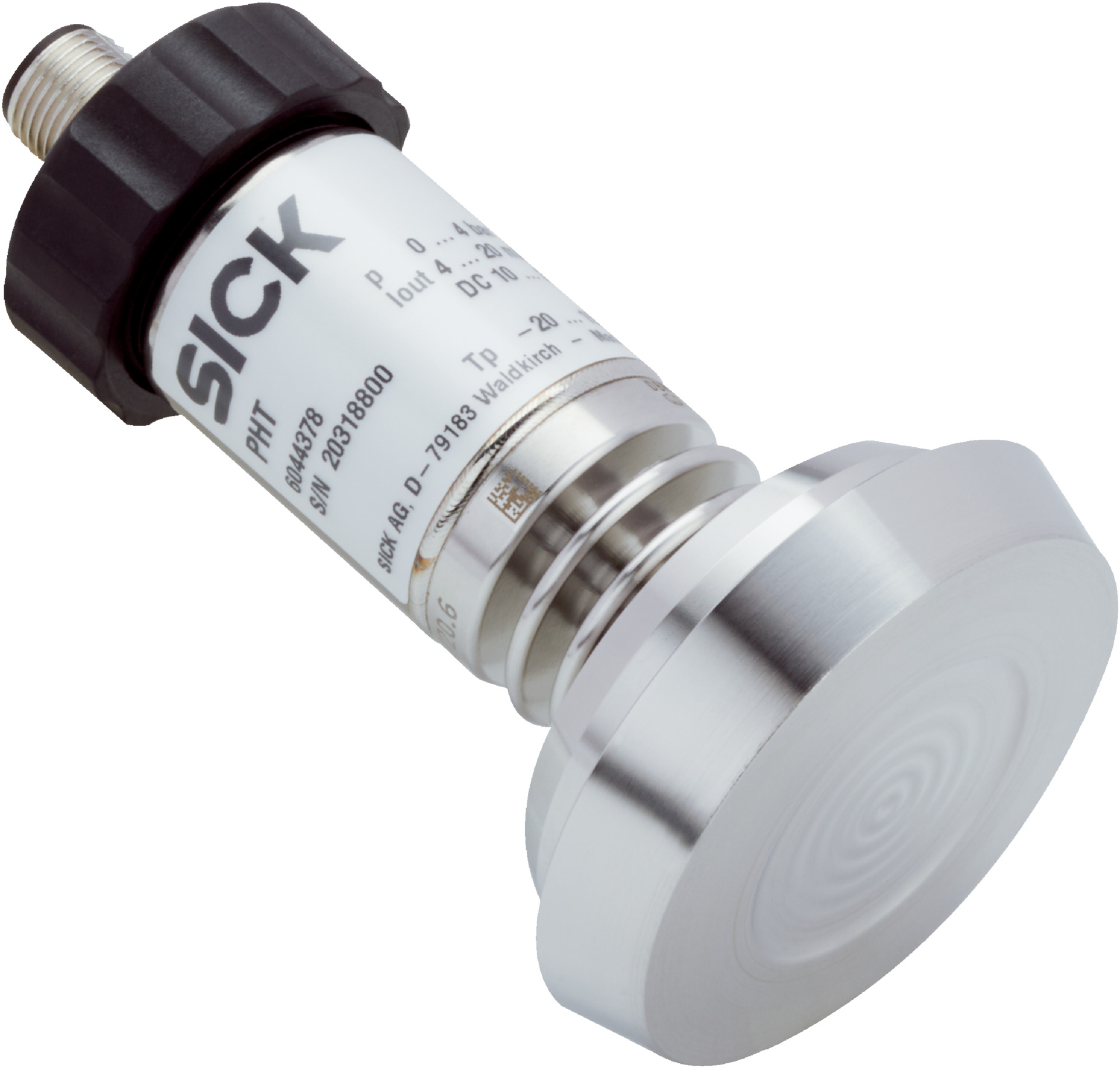

Pressure Transmitter PHT-RBX25S550S0AFT0Z | 0 to 0.25 Bar | IP67 Rated | Stainless Steel Housing | by SICK
The Pressure Transmitter PHT-RBX25S550S0AFT0Z is designed for precise gauge pressure measurement in both liquid and gaseous media. With a measurement range of 0 to 0.25 bar and a robust stainless steel housing, it’s perfect for industrial process control and food industry applications. Featuring FDA-approved internal fluid and high accuracy, this sensor ensures reliable performance and long-term stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 100mm x 70mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.25 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571 with field housing connection
- Supply voltage from 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- High accuracy with ≤ ± 0.5 % of span and optional 0.25 % adjustment
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- MTTF of 403 years ensuring long service life
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal fluid
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing and components reduce waste and replacement frequency
- High accuracy and stability reduce energy waste in process control
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RBX25S550S0AFT0Z Pressure Sensor is available now for immediate purchase. Ideal for industrial process control and food industry applications requiring precise gauge pressure measurement.
