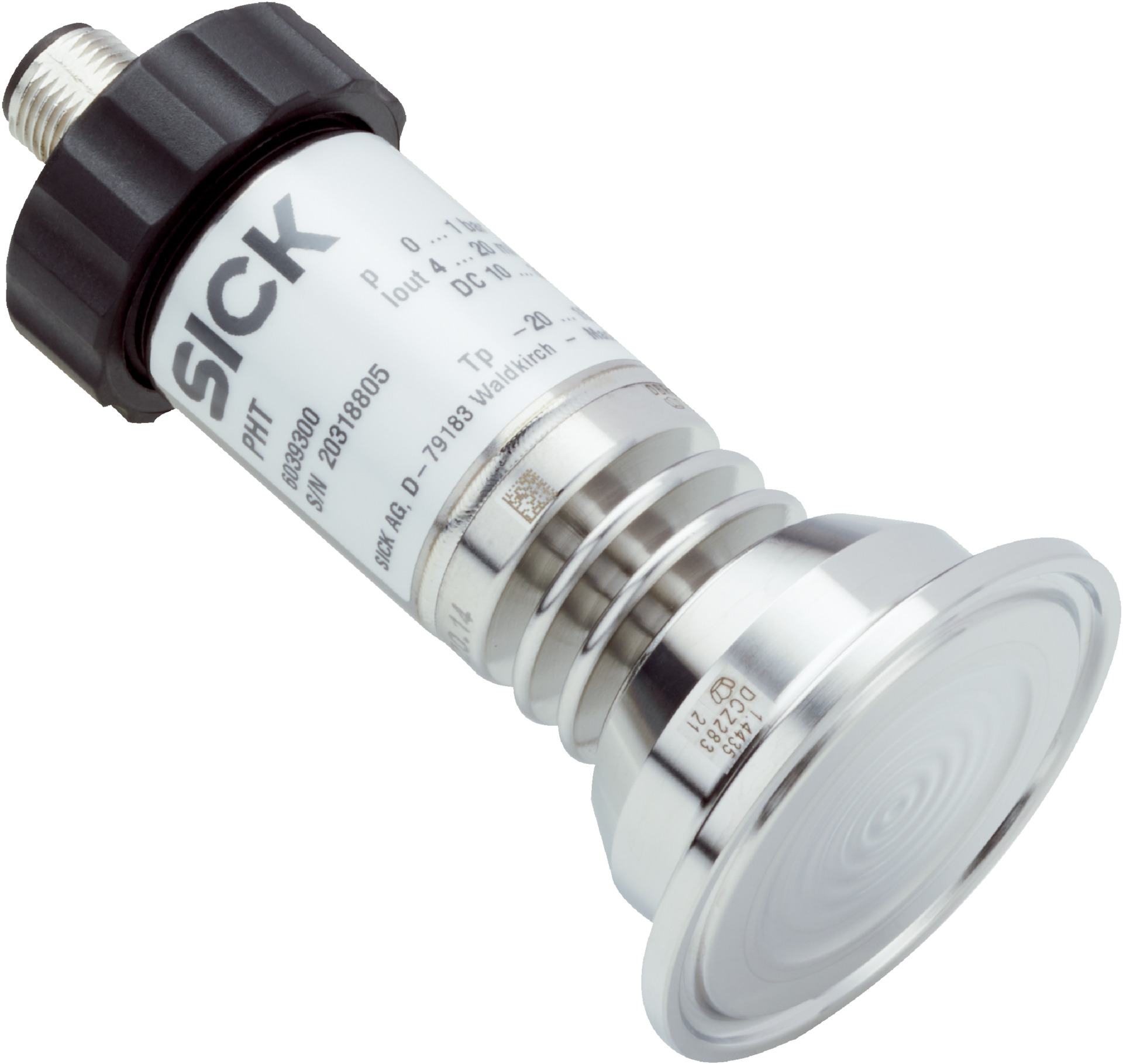

Pressure Transmitter PHT-RBX25SD40S0AFT0Z | 0 to 0.25 Bar | IP67 Rated | FDA Approved | by SICK
The Pressure Transmitter PHT-RBX25SD40S0AFT0Z is designed for precise gauge pressure measurement in both liquid and gaseous media, making it ideal for industrial process control and food industry applications. With a measurement range of 0 to 0.25 bar and an IP67 enclosure rating, this sensor ensures durability and reliability in demanding environments. Its FDA-approved internal transmission fluid and stainless steel construction provide safety and longevity, making it a top choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 200mm x 100mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.25 bar
- Suitable for liquid and gaseous media
- Process connection: Clamp (DIN 32676) DN 40
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571 with field housing connection
- Output signal: 4 mA to 20 mA, 2-wire
- Supply voltage: 11 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- Enclosure rating IP67 for dust and water protection
- High accuracy up to ±0.5% of span, optional 0.25%
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2% drift per year
- Operating temperature range from -20 °C to +80 °C
- Shock and vibration resistant according to IEC standards
- CE conformity and multiple international certifications
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration according to industrial standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing and components extend product life reducing waste
- High accuracy and stability reduce need for frequent recalibration and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RBX25SD40S0AFT0Z Pressure Sensor is available for immediate purchase, ideal for industrial process control and food industry applications.
