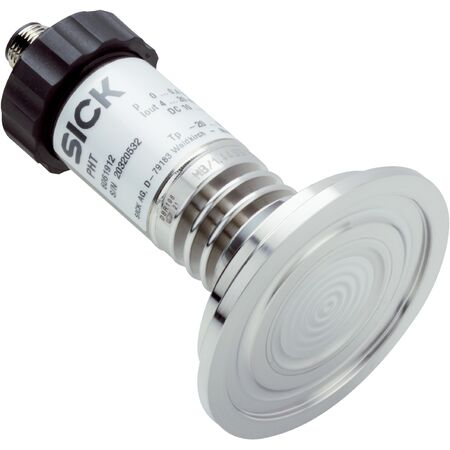

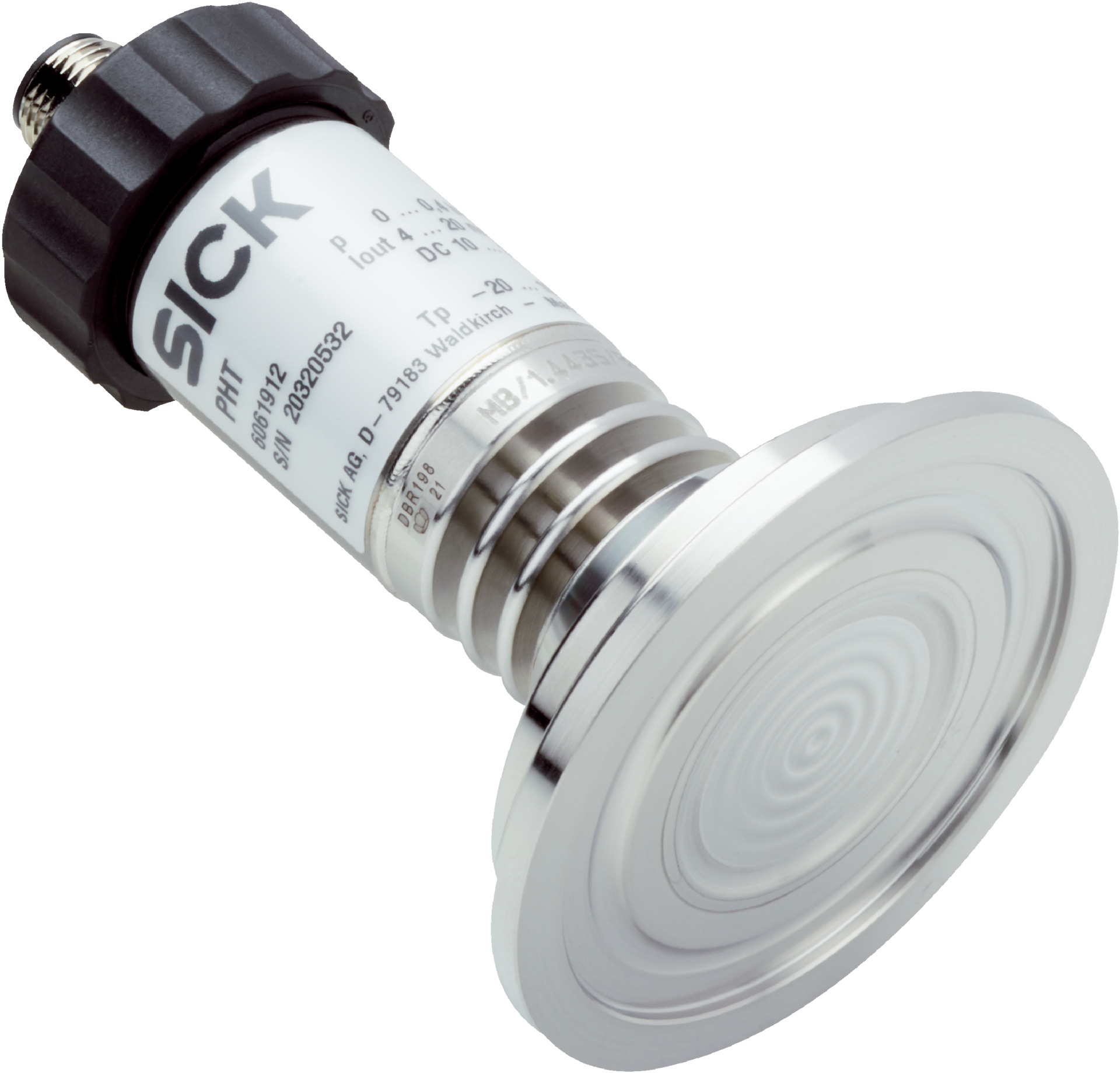

Pressure Transmitter PHT-RBX40S740S0AMS0Z | 0 to 0.4 Bar Gauge Pressure | IP67 Rated | by SICK
The Pressure Transmitter PHT-RBX40S740S0AMS0Z measures gauge pressure from 0 to 0.4 bar, making it ideal for both liquid and gaseous media. With a process temperature range of -20 °C to +150 °C and an IP67 enclosure rating, this sensor is built for industrial applications, including food and beverage processing, ensuring precise monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.4 bar gauge pressure
- Process temperature: –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp (DIN 11864-3) DN 40 form A
- Wetted parts: 316L stainless steel
- Internal transmission fluid: FDA approved synthetic oil
- Housing material: Stainless steel 1.4571
- Connection type: M12 round connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Electrical safety: Overvoltage, short-circuit, reverse polarity protection
- Enclosure rating: IP67
- Accuracy: ≤ ± 0.5 % of span (optional 0.25 %)
- Response time: ≤ 10 ms
- Long-term drift: ≤ 0.2 % of span per year
- Shock load: 500 g IEC 60068-2-27
- Vibration load: 15 g IEC 60068-2-6
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.4 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Clamp (DIN 11864-3) DN 40 form A process connection
- Wetted parts made of 316L stainless steel
- Internal transmission fluid is FDA approved synthetic oil
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage from 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- Long-term stability with ≤ 0.2 % span drift per year
- High accuracy up to ± 0.25 % of span (optional)
- Fast response time ≤ 10 ms
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry applications due to FDA approved internal fluid
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- FDA approved synthetic oil ensures safe use in food industry applications
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient 2-wire 4-20 mA output
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PHT-RBX40S740S0AMS0Z Pressure Sensor is available for immediate purchase, ideal for industrial and food processing applications requiring precise pressure measurement.
