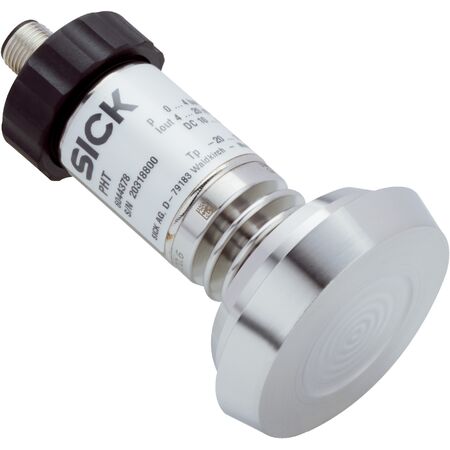

Pressure Transmitter PHT-RBX60S550S0AMS0Z | 0 to 0.6 Bar | IP67 Rated | 4-20 mA Output | by SICK
The Pressure Transmitter PHT-RBX60S550S0AMS0Z measures gauge pressure from 0 to 0.6 bar, making it ideal for both liquid and gaseous media. With a robust stainless steel housing and FDA-approved internal transmission fluid, it’s perfect for industrial process control and food industry applications. Enjoy high accuracy and fast response times, ensuring reliable pressure monitoring in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 150mm x 60mm
- Weight: 0.5 kg
Key Features
- Measures gauge pressure from 0 bar to 0.6 bar
- Suitable for liquid and gaseous media
- Process temperature range from –20 °C to +150 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection with conical coupling (DIN 11851) DN 50 with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 1.4571
- M12 round connector, 4-pin connection type
- Supply voltage from 10 V DC to 30 V DC
- Electrical safety features including overvoltage, short-circuit, and reverse polarity protection
- IP67 rated enclosure for dust and water protection
- High accuracy with ≤ ± 0.5 % of span, optional 0.25 %
- Fast response time ≤ 10 ms
- Long-term stability with ≤ 0.2 % drift per year
- Shock and vibration resistant according to IEC standards
- FDA approved synthetic oil as internal transmission fluid
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food industry applications due to FDA approved internal transmission fluid
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing and wetted parts ensure long product life reducing waste
- FDA approved synthetic oil ensures safe use in food industry minimizing contamination risks
- High accuracy and stability reduce need for frequent recalibration and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PHT-RBX60S550S0AMS0Z Pressure Sensor is available now for immediate purchase. Ideal for industrial process control and food industry applications requiring precise and reliable pressure measurement.
