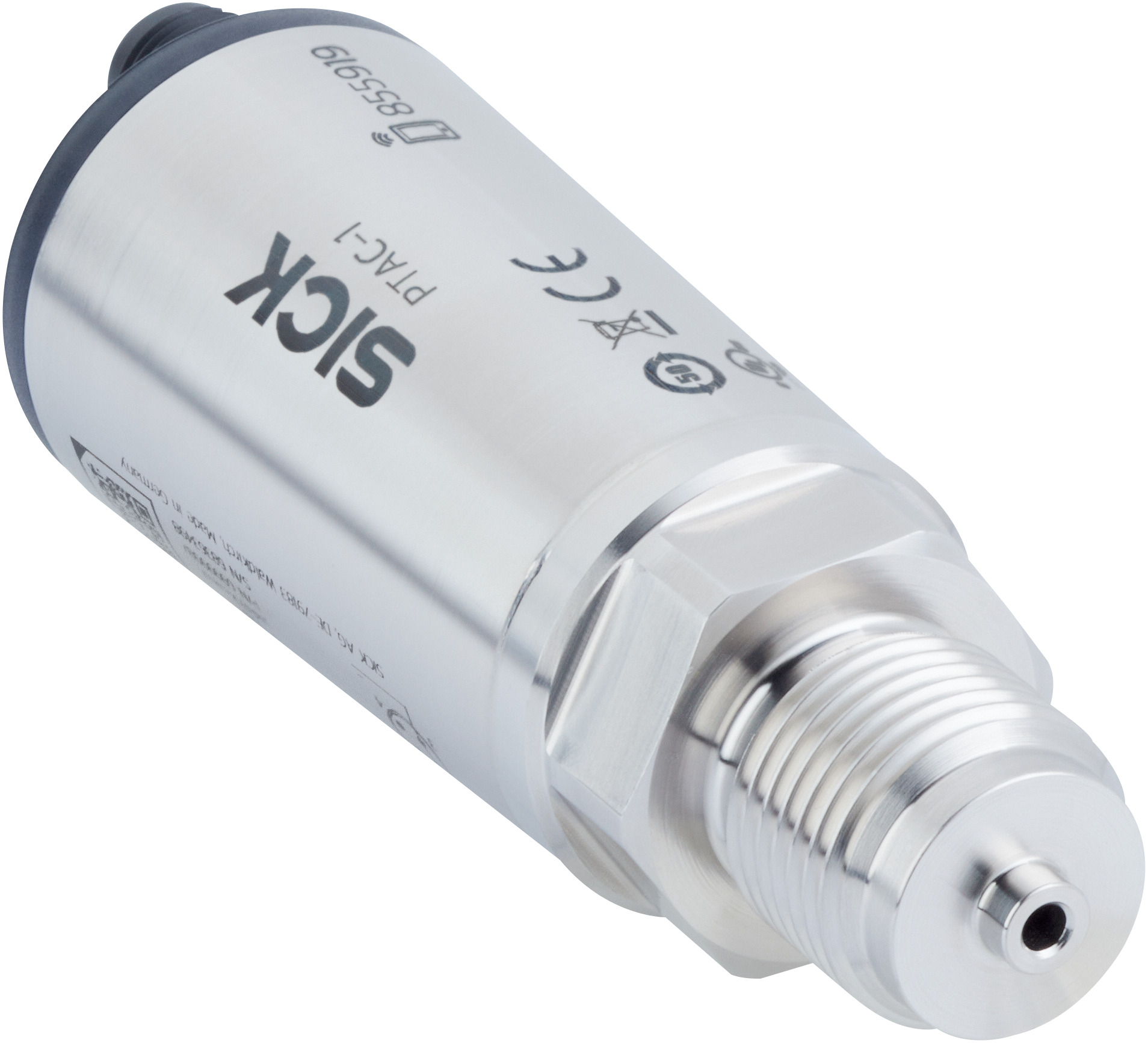

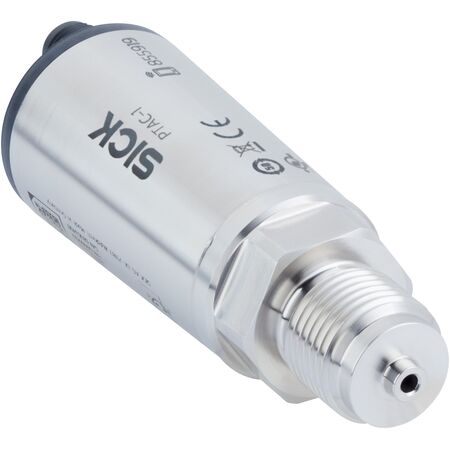

Pressure Transmitter PTAC-1XXXX88A4MZB | Bluetooth Enabled | IP66/IP67/IP69 Rated | High Accuracy | by SICK
The Pressure Transmitter PTAC-1XXXX88A4MZB is designed for precise gauge pressure measurement in industrial applications. With a measuring range of –0.2 bar to 0.2 bar and Bluetooth communication, it ensures easy data access and monitoring. Built for durability with stainless steel construction and an IP66/IP67/IP69 rating, this sensor is perfect for automation systems and process control in manufacturing plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: –0.2 bar to 0.2 bar (–2.9 psi to 2.9 psi)
- Process temperature range: –20 °C to +130 °C
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection at 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Accuracy: ≤ ± 0.3% of span
- Response time (10% to 90%): ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Ambient operating temperature: –40 °C to +80 °C
- Enclosure rating: IP66, IP67, IP69
- Communication interface: Bluetooth
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L and PBT/PC
- Connection type: M12 round connector, 4-pin
- Dimensions (H x L x W): 80mm x 100mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Ceramic pressure measuring cell for high accuracy
- Bluetooth communication interface for easy data access
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ¼ A (ISO 1179-2) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- Enclosure rating IP66, IP67, and IP69 for robust protection
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- High accuracy of ≤ ± 0.3% of span and fast response time ≤ 6 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing plants
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 4-20 mA output signal
- Bluetooth interface reduces wiring needs, minimizing installation impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PTAC-1XXXX88A4MZB pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring precise pressure measurement.
