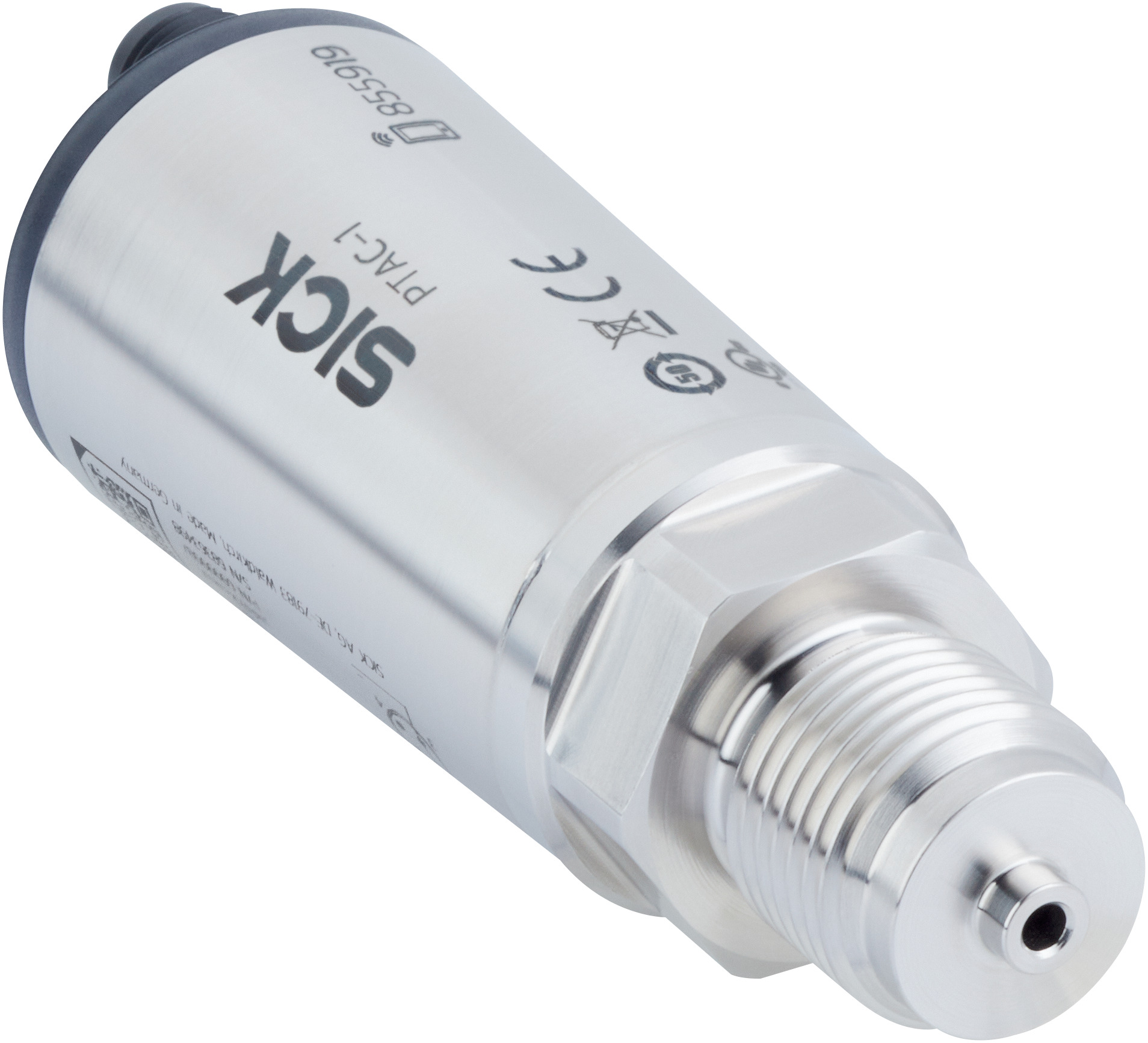

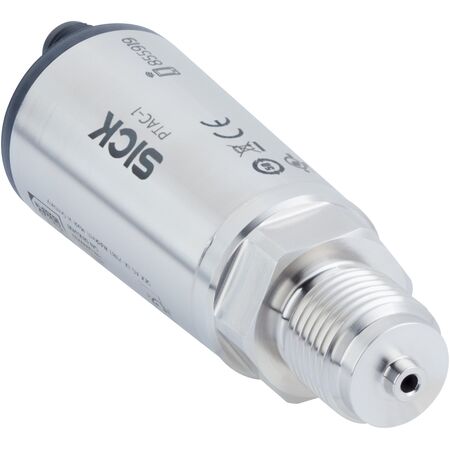

Pressure Transmitter PTAC-1XXXX88ABMZX | 0 to 0.1 Bar Range | IP66, IP67, IP69 Rated | by SICK
The Pressure Transmitter PTAC-1XXXX88ABMZX measures gauge pressure in both liquid and gaseous media, featuring a durable ceramic pressure measuring cell for high precision. With an impressive accuracy of ≤ ± 0.3% of span and a fast response time of ≤ 6 ms, it's perfect for industrial process control and pressure monitoring in manufacturing systems. Built to withstand harsh environments, this sensor is ideal for applications requiring reliable performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 0.1 bar (0 psi to 1.45 psi)
- Process temperature range: –20 °C to +130 °C
- Maximum ohmic load RA: R A < (L+ - 12) / 0.022 A (Ohm)
- Communication interface: None
- Process connection: G ¼ A (ISO 1179-2)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ± 0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.35% per annum
- Operating ambient temperature: –40 °C to +80 °C
- Storage temperature: –40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- MTTF: 156 years
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Ceramic pressure measuring cell for durability and precision
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ¼ A (ISO 1179-2) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin connection type
- Supply voltage range from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ± 0.3% of span and fast response time ≤ 6 ms
- Long-term stability with less than 0.35% drift per annum
- Wide operating temperature range from –40 °C to +80 °C
- Certified with CE, UKCA, RCM, c-UL-us, and EAC approvals
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring high accuracy gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20 mA output
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAC-1XXXX88ABMZX pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
