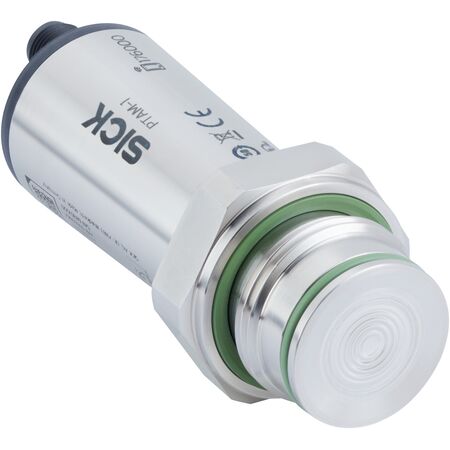

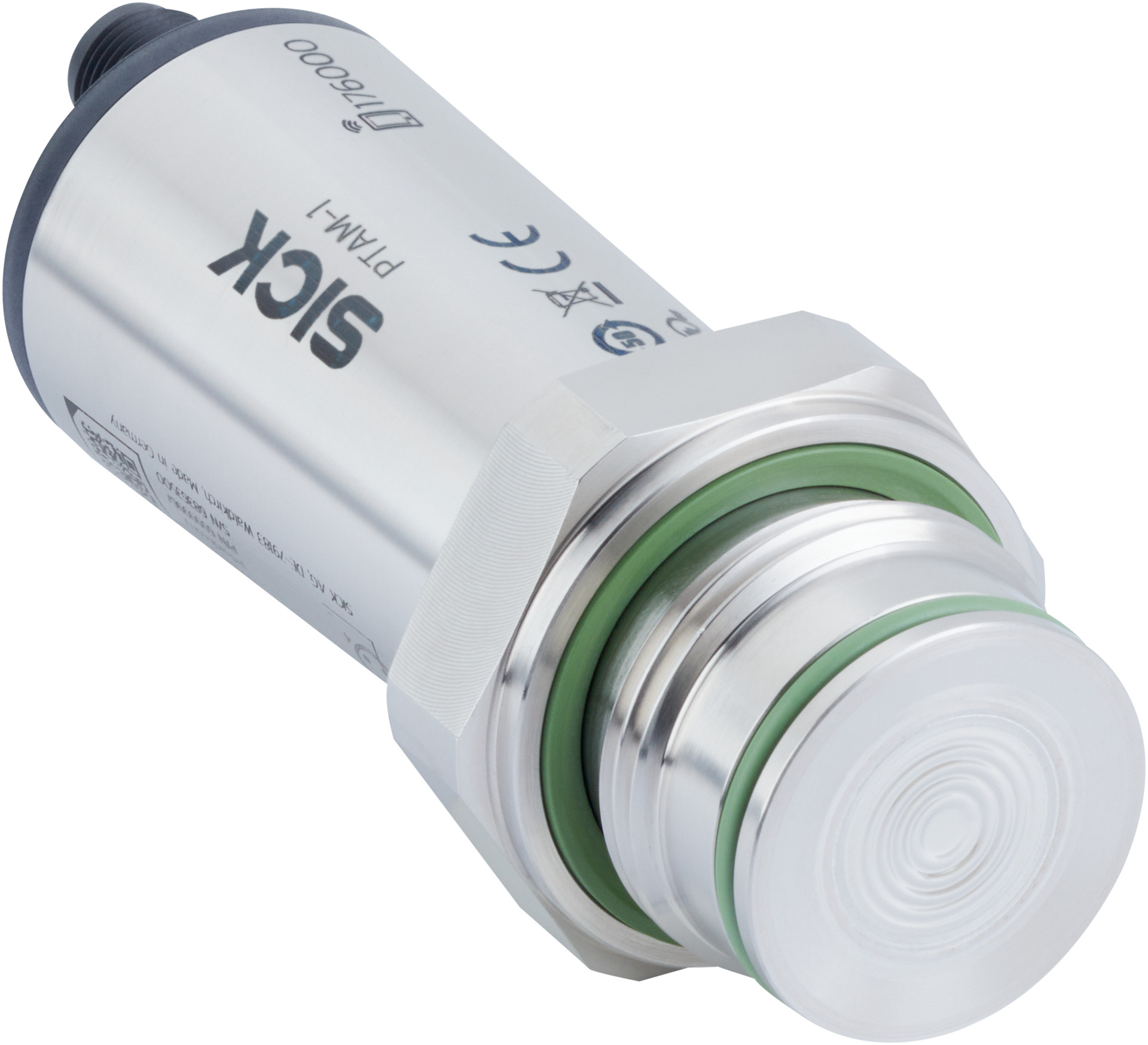

Pressure Transmitter PTAC-1XXXXC5ABMZX | Ceramic Pressure Sensor | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAC-1XXXXC5ABMZX is designed for precise gauge pressure measurement in liquid and gaseous media. Featuring a durable ceramic pressure measuring cell and an output signal of 4 mA to 20 mA, this sensor is perfect for industrial process control and automation systems. With an impressive accuracy of ≤ ±0.3% of span and robust IP66/IP67/IP69 enclosure ratings, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Ceramic pressure measuring cell
- Measuring range: 0 bar to 0.1 bar (0 psi to 1.45 psi)
- Process temperature range: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC, NEC Class 02 power supply
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time (10% to 90%): ≤ 6 ms
- Long-term drift: < 0.35% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +80 °C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Ceramic pressure measuring cell for high durability
- Measuring range from 0 bar to 0.1 bar (0 psi to 1.45 psi)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G 1 flush-mounted (ISO 228-1)
- Housing made of stainless steel 316L and PBT/PC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- Long service life with minimum 10 million load cycles
- High accuracy of ≤ ±0.3% of span and fast response time ≤ 6 ms
