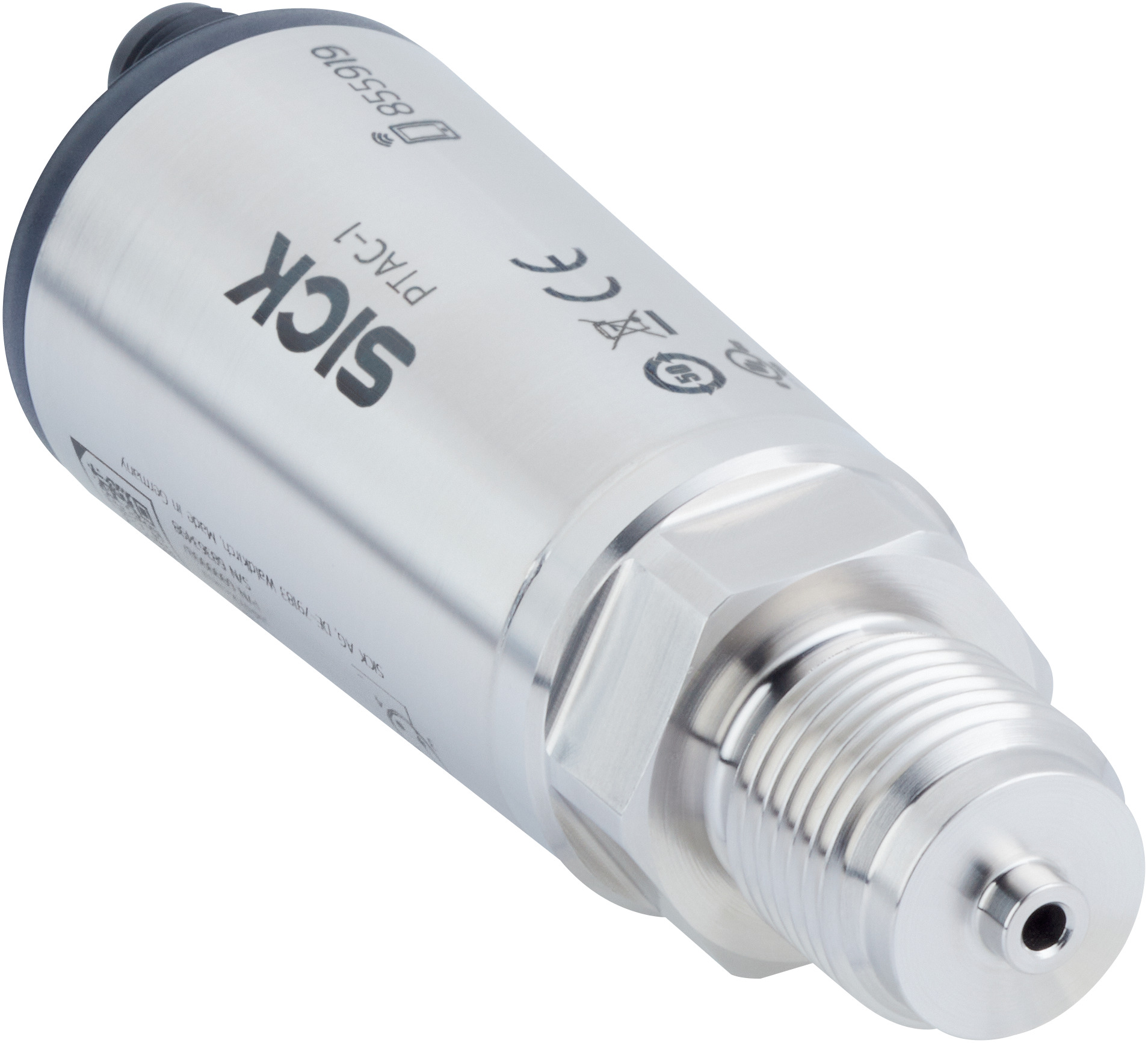

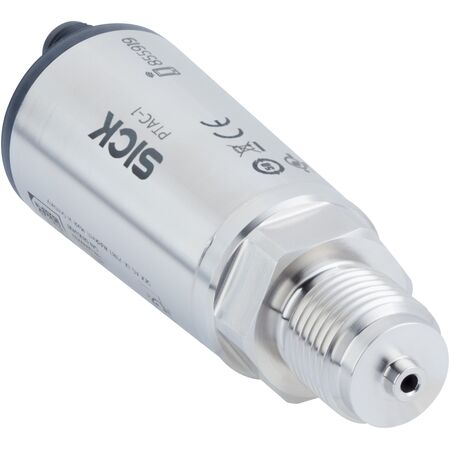

Pressure Transmitter PTAC-1XXXXTJAGMAB | Gauge Pressure Sensor | IP66, IP67, IP69 Rated | by SICK
The Pressure Transmitter PTAC-1XXXXTJAGMAB is designed for precise gauge pressure measurement in liquids and gases, featuring a durable ceramic pressure measuring cell. With a measuring range of 0 to 10 bar and robust IP66, IP67, and IP69 enclosure ratings, it's perfect for industrial process control and automation systems. Built for reliability, this sensor ensures accurate readings and long service life, making it an essential tool for manufacturing plants and pressure monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Ceramic pressure measuring cell
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature: –20 °C to +130 °C
- Maximum ohmic load RA: 370 Ω at 12 V DC, 630 Ω at 18 V DC
- Output signal: 4 mA to 20 mA, IO-Link, transistor, 3-wire
- Communication interface: IO-Link, Bluetooth
- Process connection: G ¼ B (EN 837)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC, NEC Class 02 power supply
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ± 0.3% of span
- Response time (10% to 90%): ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +80 °C
- Storage temperature: –40 °C to +80 °C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 100mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquids and gases
- Ceramic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range from –20 °C to +130 °C
- Output signals include 4 mA to 20 mA, IO-Link, transistor, 3-wire
- Communication interfaces: IO-Link and Bluetooth
- Process connection: G ¼ B (EN 837)
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 316L and PBT/PC
- Supply voltage from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rated IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ± 0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Designed for a minimum of 10 million load cycles
- Shock and vibration resistant according to IEC standards
- Certified with CE, UKCA, RCM, c-UL-us, and EAC approvals
