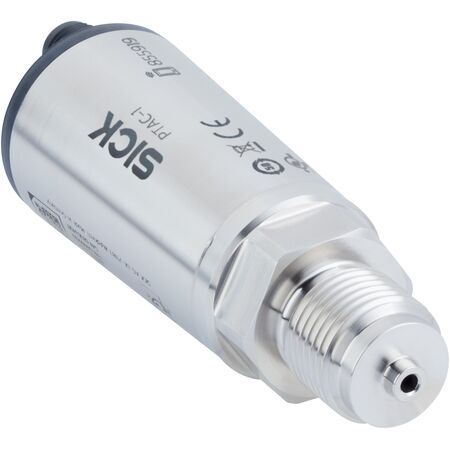

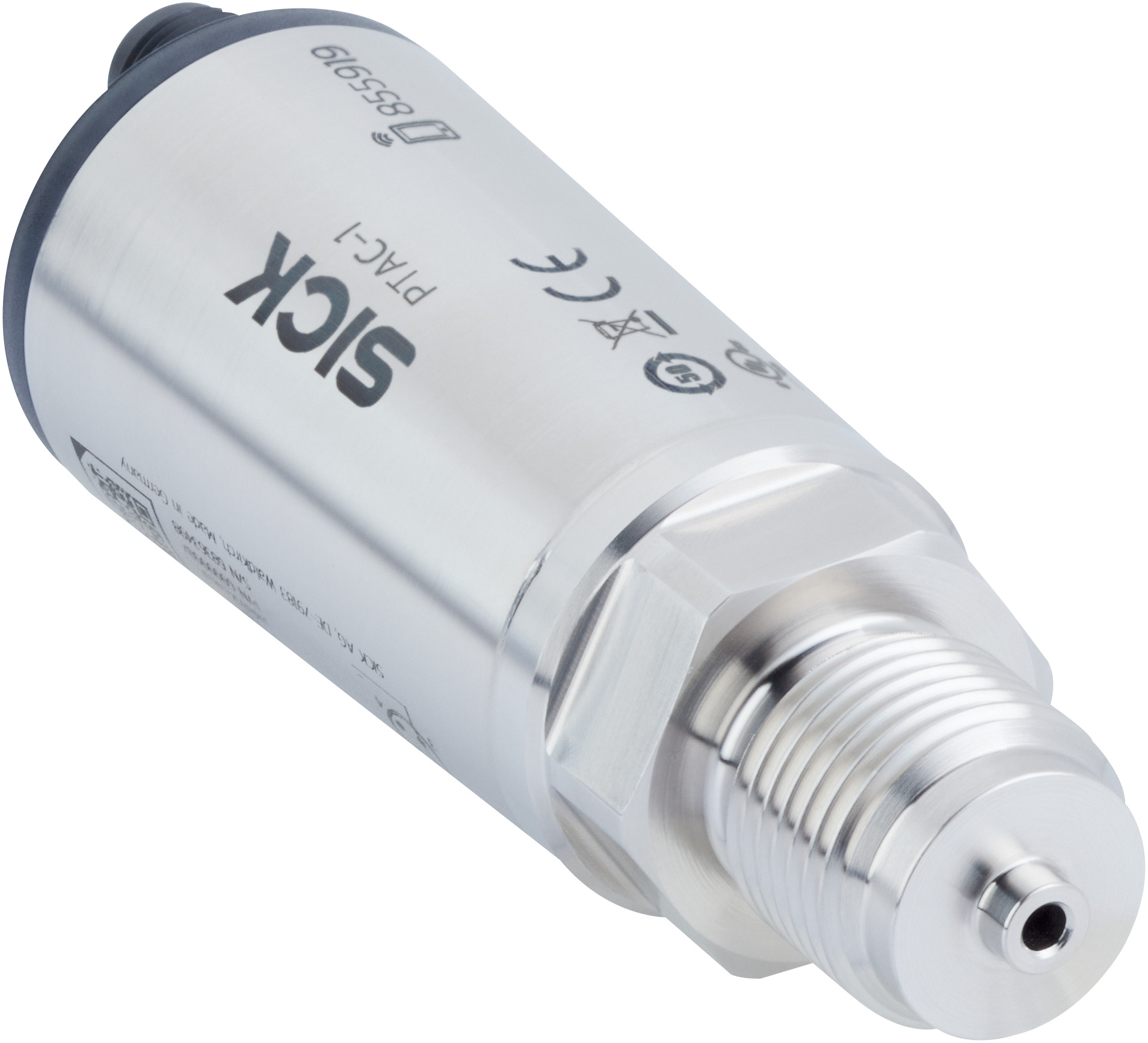

Pressure Transmitter PTAC-1XXXXTJAGMAX | Gauge Pressure Sensor | IO-Link Communication | IP66/IP67/IP69 Rated | by SICK
The PTAC-1XXXXTJAGMAX Pressure Transmitter is designed for precise gauge pressure measurement in liquid and gaseous media. With a measuring range of 0 to 10 bar and a robust ceramic pressure measuring cell, it ensures high accuracy and durability. Ideal for industrial process control and automation systems, this sensor features an IP66/IP67/IP69 enclosure rating for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Ceramic pressure measuring cell
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature: –20 °C to +130 °C
- Maximum ohmic load RA: 370 Ω at 12 V DC, 630 Ω at 18 V DC
- Output signal: 4 mA to 20 mA, IO-Link, transistor, 3-wire
- Communication interface: IO-Link
- Process connection: G ¼ B (EN 837)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ± 0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Ceramic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range from –20 °C to +130 °C
- Output signals include 4 mA to 20 mA, IO-Link, transistor, 3-wire
- Communication interface via IO-Link
- Process connection G ¼ B (EN 837) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ± 0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Shock and vibration resistant according to IEC standards
- MTTF of 156 years ensuring long service life
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring high accuracy and reliability
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient electrical design
- Long service life minimizes environmental impact from manufacturing and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAC-1XXXXTJAGMAX Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
