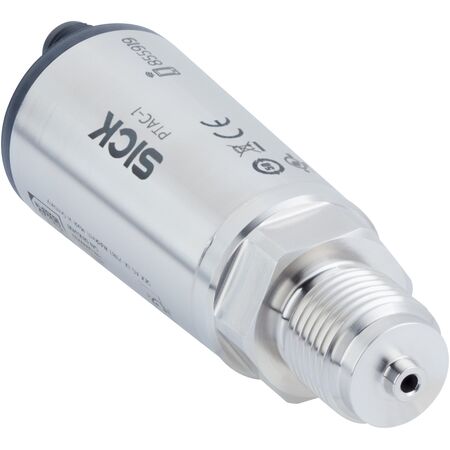

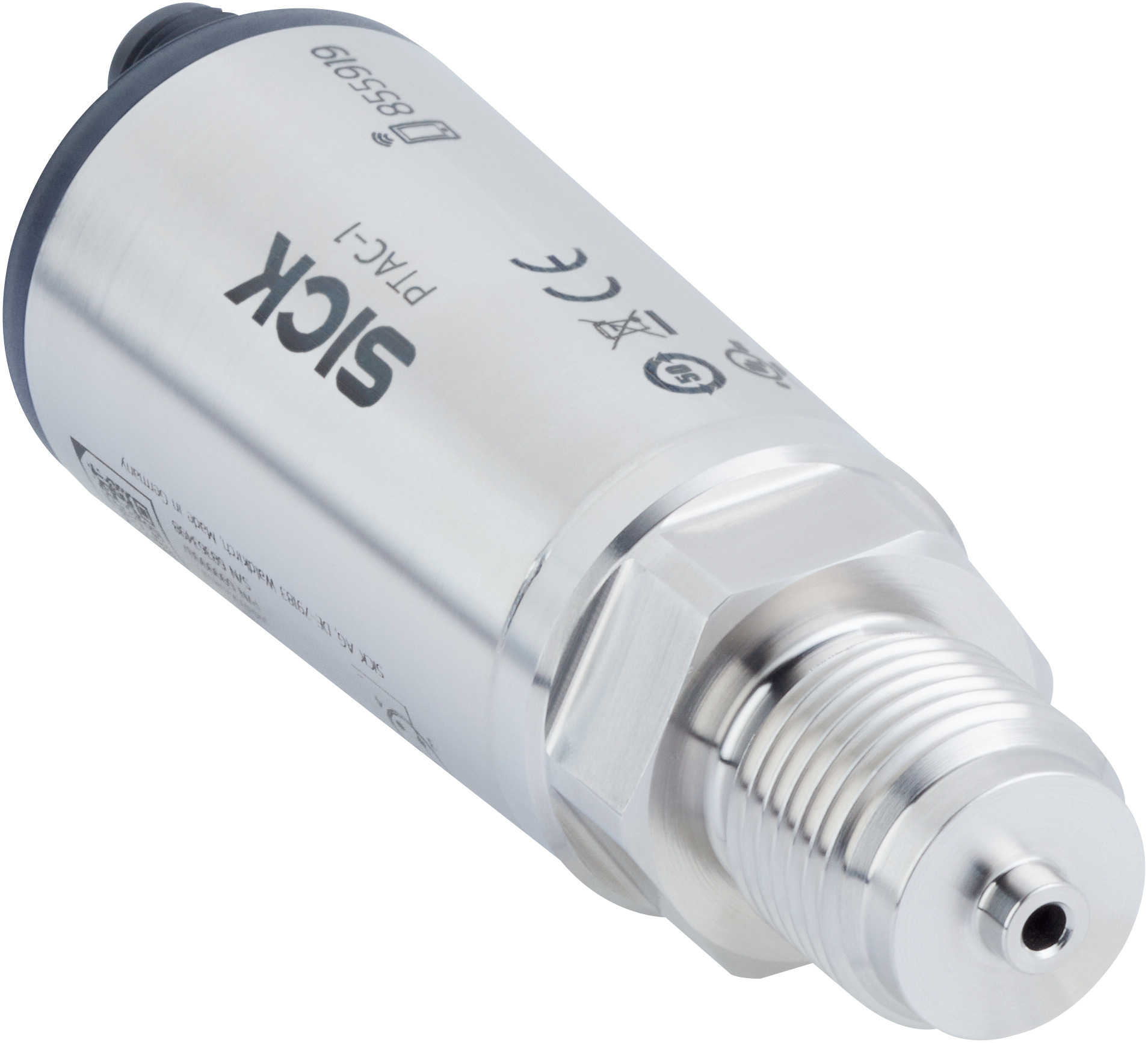

Pressure Transmitter PTAC-1XXXXTJAGMZB | Bluetooth Enabled | 0 to 10 Bar Range | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAC-1XXXXTJAGMZB is designed for precise gauge pressure measurement in both liquid and gaseous media, featuring a robust ceramic pressure measuring cell and Bluetooth communication for easy data access. With a measuring range of 0 to 10 bar and an IP66/IP67/IP69 rating, it's perfect for industrial process control in extreme environments from -40°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Ceramic pressure measuring cell for high durability
- Measuring range from 0 to 10 bar (0 to 145 psi)
- Bluetooth communication interface for easy data access
- Process connection G ¼ B (EN 837) with 316L stainless steel wetted parts
- Stainless steel 316L housing with PBT/PC components
- Output signal 4 mA to 20 mA, 2-wire
- Supply voltage 12 V DC to 35 V DC with overvoltage and short-circuit protection
- High accuracy ≤ ±0.3% of span and fast response time ≤ 6 ms
- Enclosure rated IP66, IP67, and IP69 for robust protection
- Long service life with minimum 10 million load cycles
- Temperature range operation -40°C to +80°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct process connection and electrical safety compliance.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control and monitoring
- Applications requiring gauge pressure measurement up to 10 bar
- Use in environments with temperatures from -40°C to +80°C
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and ceramic construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire output signal
- Bluetooth interface reduces need for wired connections, minimizing material use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PTAC-1XXXXTJAGMZB pressure sensor is available for immediate purchase, ideal for industrial process monitoring and control applications.
