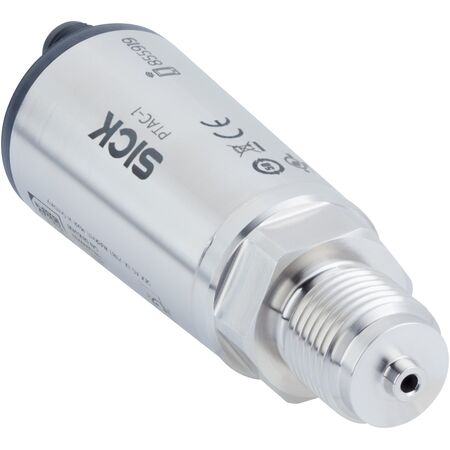

Pressure Transmitter PTAM-1XXXXTJGMZB | Bluetooth Enabled | 0 to 10 Bar Range | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXTJGMZB is designed for accurate gauge pressure measurement in liquids and gases, featuring a robust metallic measuring cell and Bluetooth communication for easy data access. Ideal for industrial process control, this sensor operates within a range of 0 to 10 bar and withstands process temperatures from -20 °C to +130 °C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquids and gases
- Metallic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range from –20 °C to +130 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Bluetooth communication interface for easy data access
- Process connection: G ¼ B (EN 837) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin connection type
- Supply voltage from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rated IP66, IP67, and IP69 for high protection
- High accuracy of ≤ ± 0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Robust against shock and vibration per IEC standards
- Service life of minimum 10 million load cycles
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Environments requiring robust and accurate pressure sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with efficient 2-wire 4-20 mA output
- Bluetooth interface reduces need for physical connections and wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PTAM-1XXXXTJGMZB Pressure Sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
