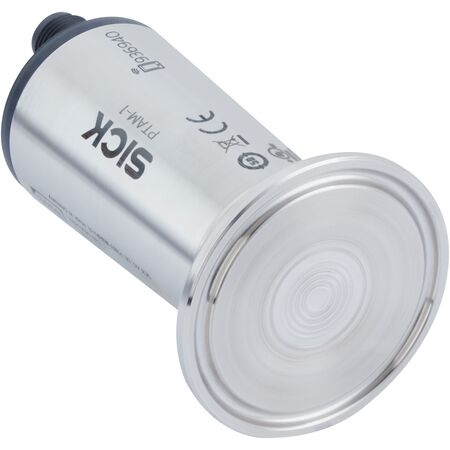

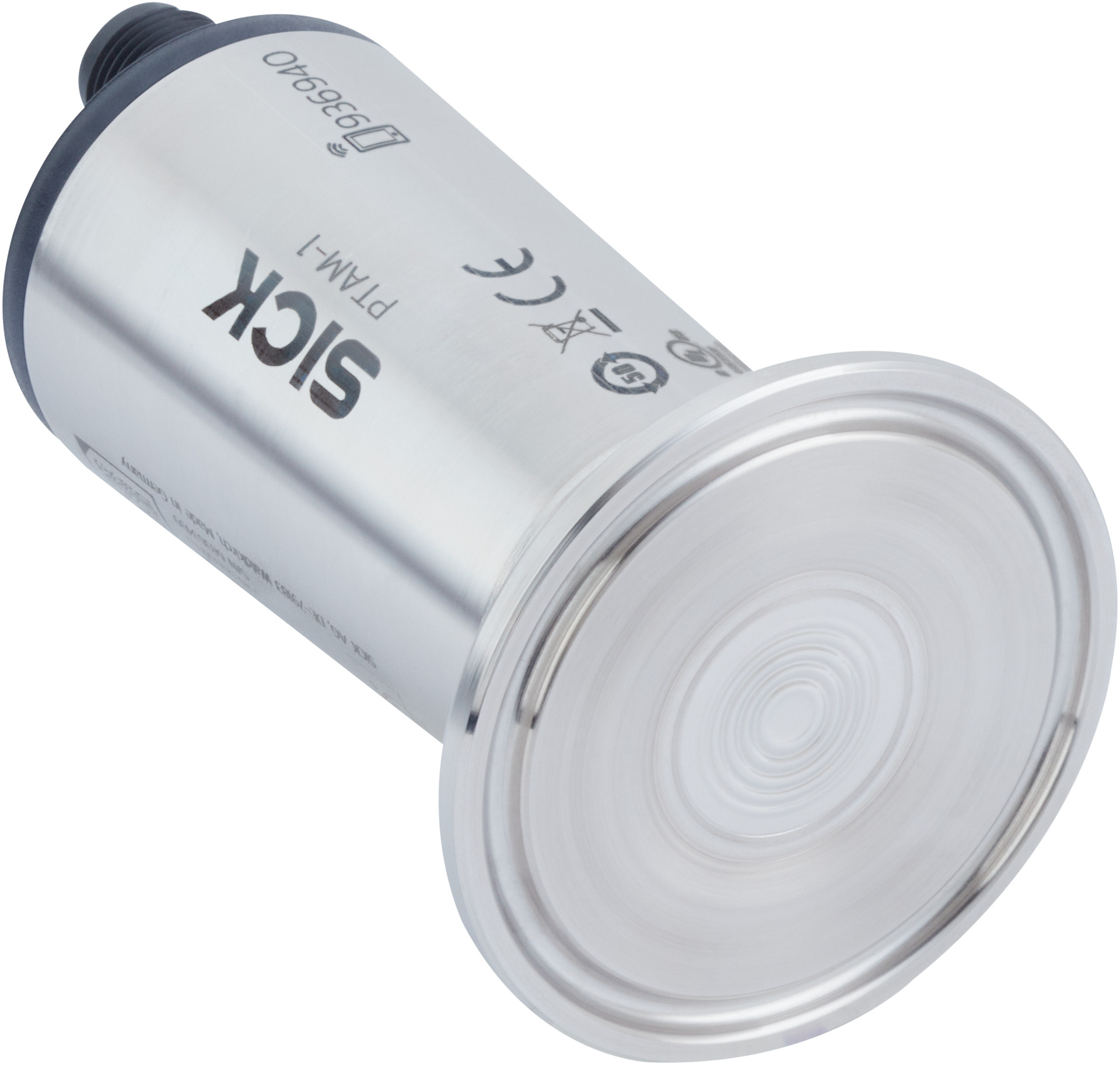

Pressure Transmitter PTAM-1XXXXARDMZX | 0-1 Bar Gauge Pressure | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXARDMZX measures gauge pressure in both liquid and gaseous media, making it ideal for industrial process control. With a high accuracy of ≤ ±0.3% of span and a robust stainless steel housing, it ensures reliable performance in hygienic environments. Designed for durability and safety, this sensor features overvoltage and short-circuit protection, making it a perfect choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0 bar to 1 bar (0 psi to 14.5 psi)
- Pressure type: Gauge pressure
- Medium: Liquid and gaseous
- Process temperature: -20 °C to +130 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp 2'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.15% per annum
- Operating ambient temperature: -40 °C to +80 °C
- Storage temperature: -40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- MTTF: 156 years
- Dimensions (H x L x W): 100mm x 100mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell with high accuracy ≤ ±0.3% of span
- Flush-mounted clamp 2'' process connection made of 316L stainless steel
- Output signal 4 mA to 20 mA, 2-wire
- Robust stainless steel 316L housing with IP66, IP67, and IP69 protection ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Fast response time ≤ 6 ms
- Wide operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Use in hygienic environments requiring flush-mounted sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Complies with RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PTAM-1XXXXARDMZX pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications.
