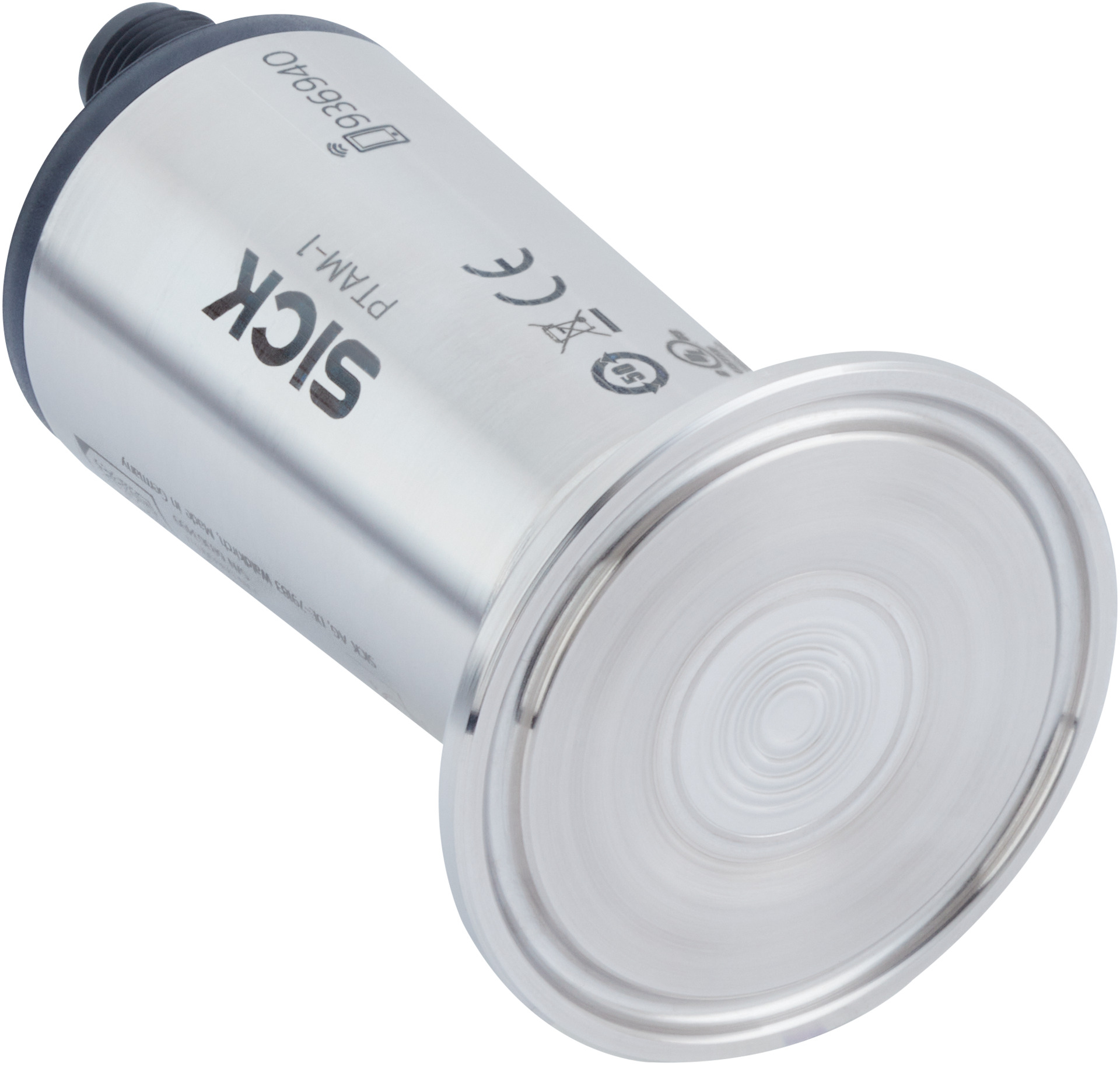

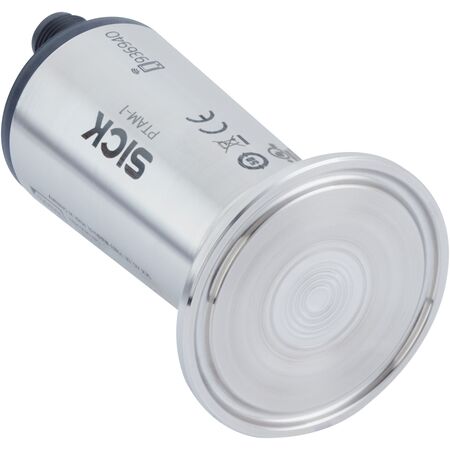

Pressure Transmitter PTAM-1XXXXAVDMZX | Gauge Pressure Measurement | IP66, IP67, IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXAVDMZX is designed for precise gauge pressure measurement in both liquid and gaseous media. With a high accuracy of ≤ ±0.3% of span and a robust 316L stainless steel construction, it’s perfect for industrial process control, especially in the food and beverage and pharmaceutical sectors. Its fast response time of ≤ 6 ms and high protection ratings make it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: 0 bar to 1 bar (0 psi to 14.5 psi)
- Process temperature: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.15% per annum
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +80 °C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell with high accuracy ≤ ±0.3% of span
- Flush-mounted clamp 1'' process connection made of 316L stainless steel
- Output signal 4 mA to 20 mA, 2-wire
- High protection rating IP66, IP67, IP69 for harsh environments
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Fast response time ≤ 6 ms
- Temperature range operation from –40 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial pressure sensors and electrical wiring standards to ensure safety and compliance.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Pharmaceutical and chemical processing requiring hygienic clamp connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20 mA output signal
- Compliant with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAM-1XXXXAVDMZX Pressure Sensor is available for immediate purchase, ideal for hygienic industrial process control applications.
