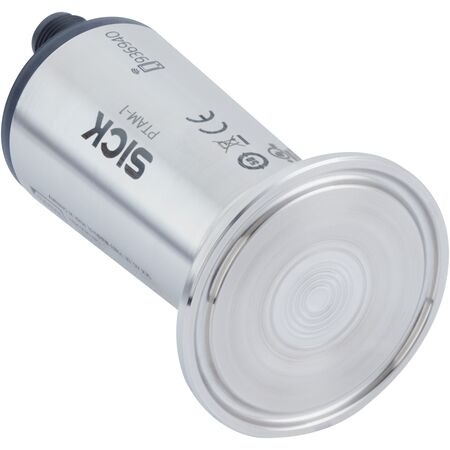

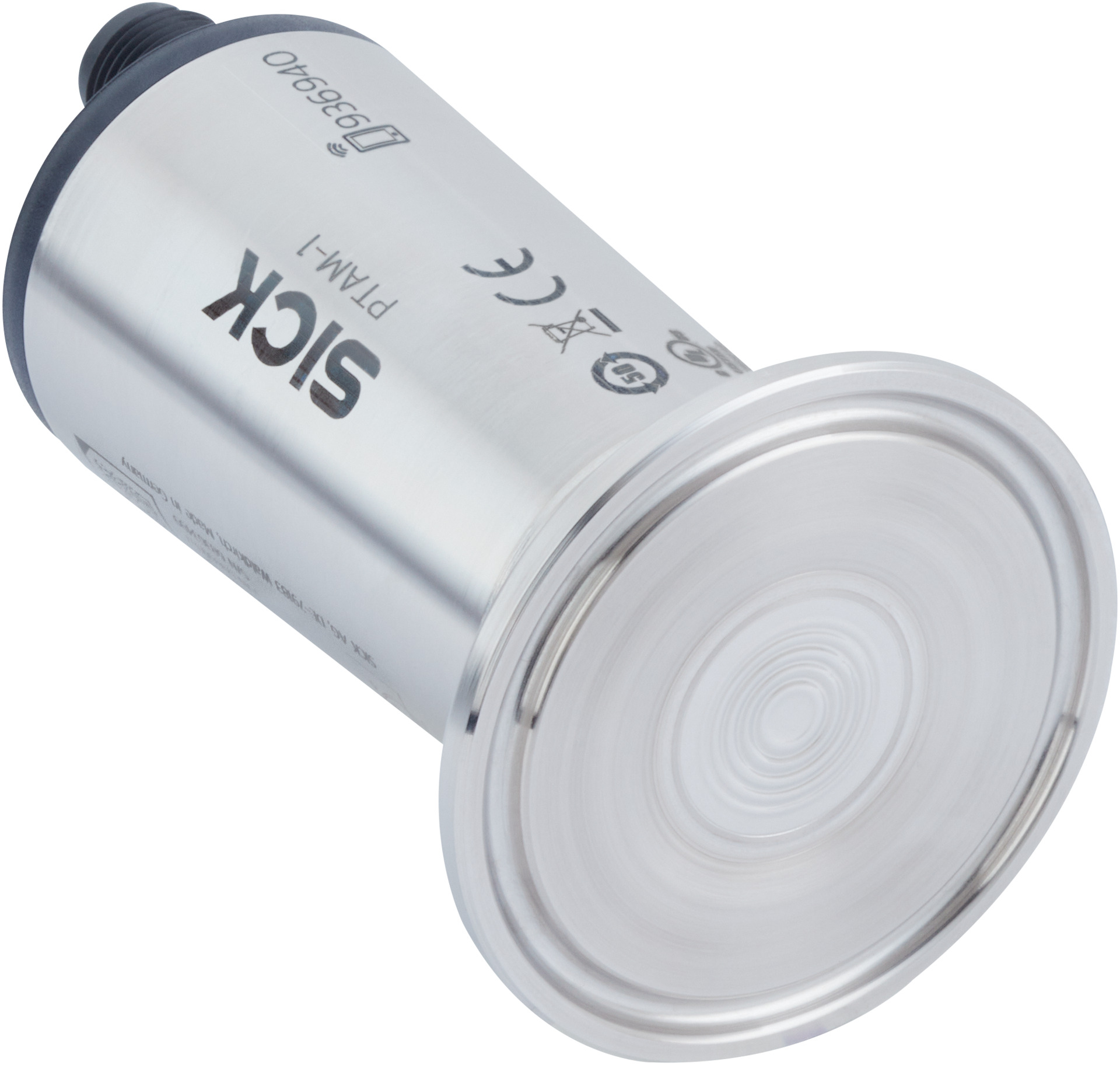

Pressure Transmitter PTAM-1XXXXAVFMZB | Bluetooth Enabled | Gauge Pressure Sensor | IP66/IP67/IP69 Rated | by SICK
The PTAM-1XXXXAVFMZB pressure transmitter is designed for precise gauge pressure measurement in both liquid and gaseous media. With a measuring range of 0 to 5 bar and Bluetooth communication, it’s perfect for industrial process control and hygienic applications. Built with a durable 316L stainless steel housing and high protection ratings, this sensor ensures reliability and accuracy in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 5 bar (0 psi to 72 psi)
- Process temperature range: -20 °C to +130 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: Bluetooth
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Operating ambient temperature: -40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 5 bar (0 to 72 psi)
- Metallic pressure measuring cell for durability
- Bluetooth communication interface for wireless data access
- Flush-mounted clamp 1'' process connection made of 316L stainless steel
- Output signal: 4 mA to 20 mA, 2-wire
- High protection rating: IP66, IP67, IP69
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- High accuracy of ≤ ±0.3% of span and fast response time ≤ 6 ms
- Wide operating temperature range from -40 °C to +80 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection, calibration, and compliance with safety standards.
Applications
- Measurement of gauge pressure in liquid and gaseous media
- Industrial process control requiring precise pressure monitoring
- Food and beverage industry due to hygienic clamp connection
- Environments requiring robust and corrosion-resistant sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with 4-20 mA output signal
- Bluetooth interface reduces need for wired connections, minimizing material use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAM-1XXXXAVFMZB pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications.
