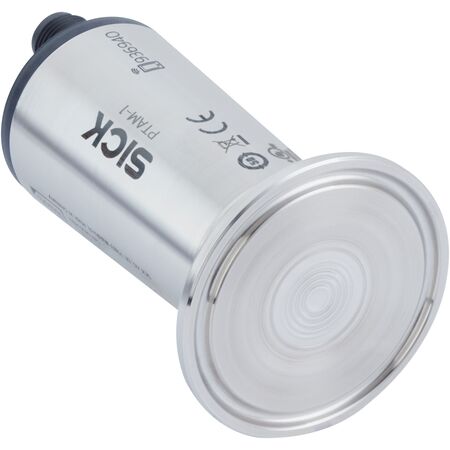

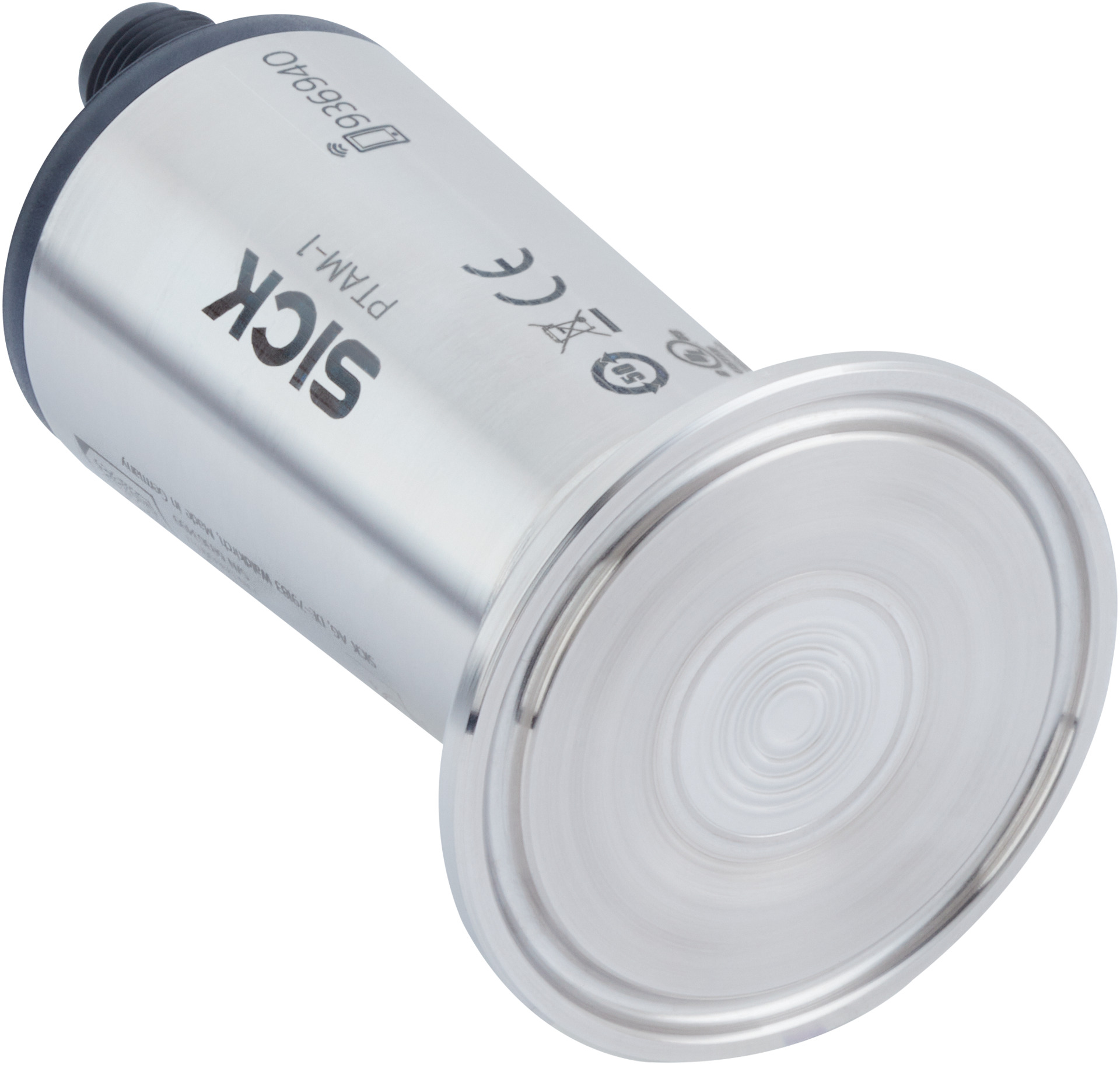

Pressure Transmitter PTAM-1XXXXAVGMZX | 0 to 10 Bar | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXAVGMZX measures gauge pressure from 0 to 10 bar, making it ideal for industrial process control in liquid and gaseous media. With a robust 316L stainless steel housing and IP66/IP67/IP69 protection ratings, it ensures high accuracy and reliability in hygienic environments, perfect for the food and beverage industry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range: –20 °C to +130 °C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Ambient temperature operation: –40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 40mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 to 10 bar (0 to 145 psi)
- Metallic pressure measuring cell with 316L stainless steel process connection
- Flush-mounted clamp 1'' connection compliant with DIN 32676 and ISO 2852
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy of ≤ ±0.3% of span
- Fast response time ≤ 6 ms
- Robust stainless steel 316L housing with IP66, IP67, and IP69 protection ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Certified for food contact and multiple international conformity declarations
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in food and beverage industry
- Use in hygienic environments requiring flush-mounted sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with 4-20mA output signal
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAM-1XXXXAVGMZX pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications requiring precise pressure measurement.
