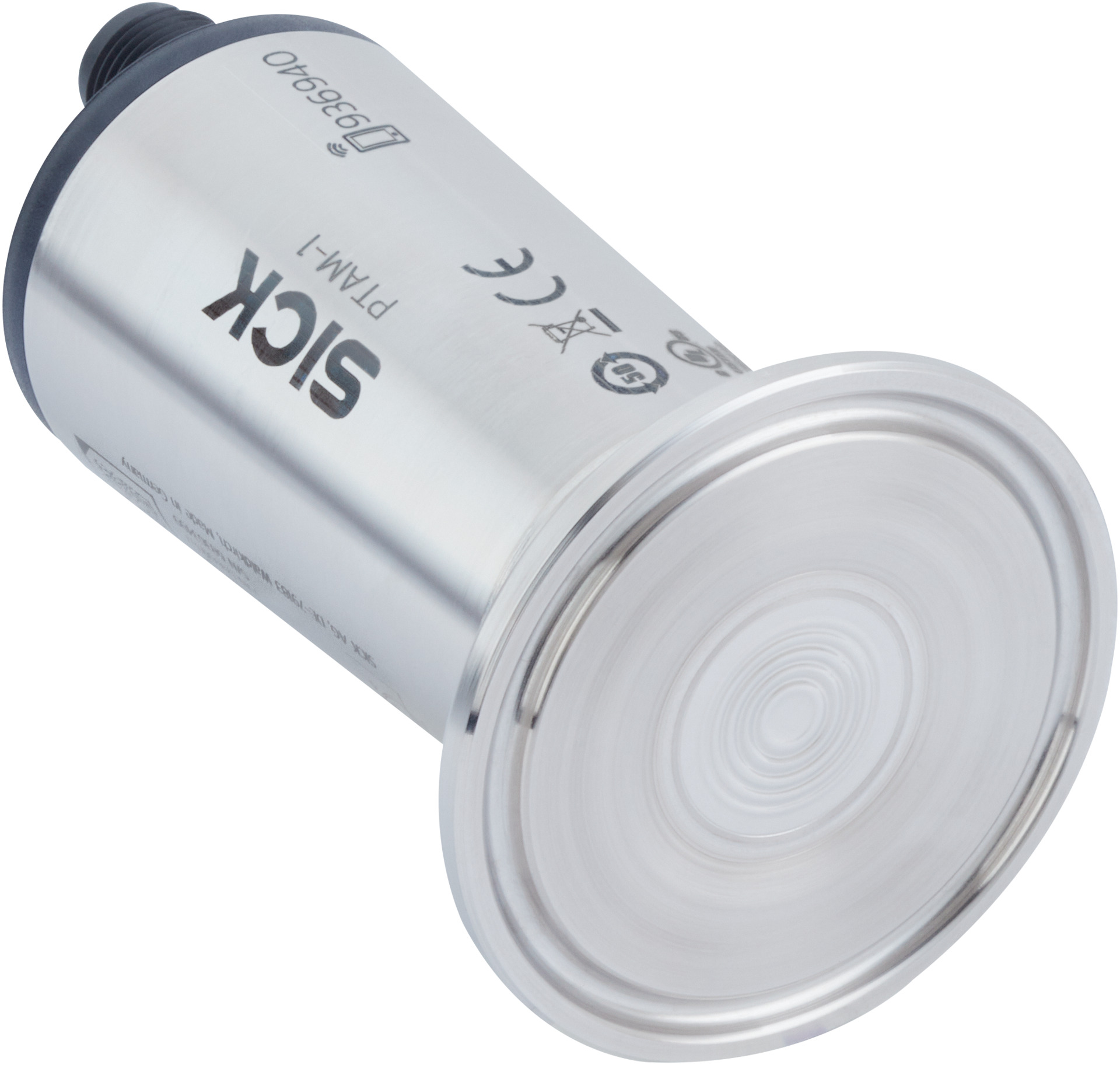

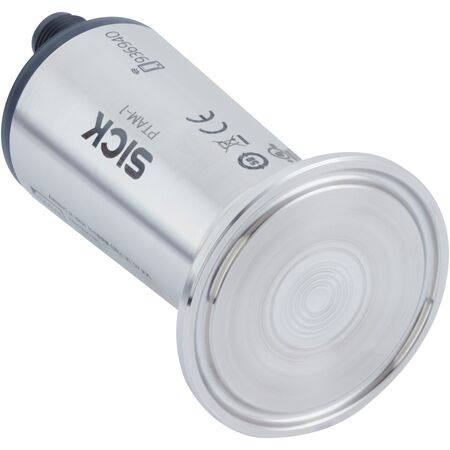

Pressure Transmitter PTAM-1XXXXAVGMZB | Bluetooth Enabled | Gauge Pressure Sensor | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXAVGMZB is designed for precise gauge pressure measurement in liquids and gases, featuring a robust metallic pressure measuring cell and Bluetooth communication for easy data access. Ideal for industrial process control and applications in the food and beverage industry, this sensor ensures high accuracy and durability with a long service life of over 10 million load cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: Bluetooth
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L (Ra < 0.38 μm)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC, NEC Class 02 power supply
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time (10% to 90%): ≤ 6 ms
- Long-term drift/one-year stability: < 0.1% p.a.
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +80 °C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 40mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquids and gases
- Metallic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Bluetooth communication interface for easy data access
- Clamp 1'' process connection compliant with DIN 32676 and ISO 2852 standards
- High protection class with IP66, IP67, and IP69 ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- High accuracy of ≤ ±0.3% of span and fast response time ≤ 6 ms
- Stainless steel 316L housing and wetted parts for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with pressure sensor devices and electrical safety standards to ensure proper connection and compliance with local regulations.
Applications
- Measurement of liquid and gaseous media pressure
- Industrial process control requiring gauge pressure monitoring
- Food and beverage industry with hygienic process connections
- Environments requiring high protection ratings (IP66, IP67, IP69)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Bluetooth interface enables wireless monitoring reducing wiring and installation impact
- Long service life minimizes resource consumption and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAM-1XXXXAVGMZB pressure sensor is available for immediate purchase, ideal for industrial process control and hygienic applications requiring precise pressure measurement.
