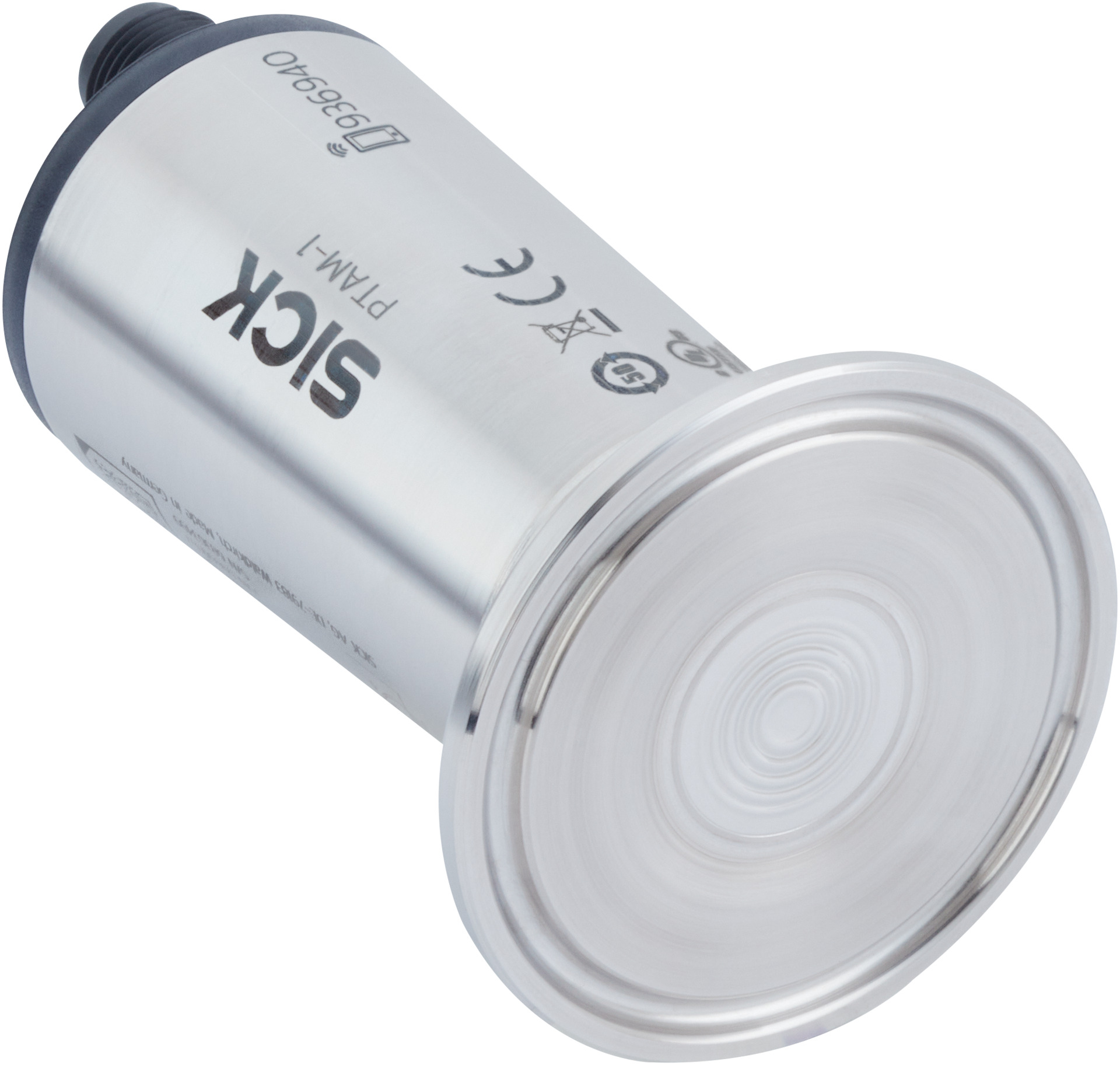

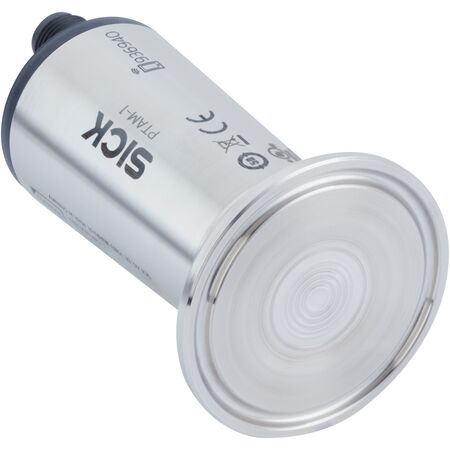

Pressure Transmitter PTAM-1XXXXAVTMZX | Gauge Pressure Measurement | IP66, IP67, IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXAVTMZX is designed for precise gauge pressure measurement in both liquid and gaseous media. With a robust metallic pressure measuring cell and a durable 316L stainless steel housing, it ensures high accuracy of ≤ ±0.3% of span and a fast response time of ≤ 6 ms. Ideal for industrial process control and applications in the food and beverage industry, this sensor is built to last with a minimum service life of 10 million load cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: –1 bar to 0 bar (–14.5 psi to 0 psi)
- Process temperature range: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Clamp 1'' (DIN 32676, ISO 2852), PN 40, flush-mounted, 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time (10% to 90%): ≤ 6 ms
- Long-term drift: < 0.35% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: –40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell for durability
- Flush-mounted clamp 1'' process connection made of 316L stainless steel
- Output signal: 4 mA to 20 mA, 2-wire
- High accuracy of ≤ ±0.3% of span
- Fast response time ≤ 6 ms
- Robust stainless steel 316L housing with IP66, IP67, and IP69 protection ratings
- Overvoltage, short-circuit, and reverse polarity protection
- Long service life with minimum 10 million load cycles
- Certified for food contact material applications
