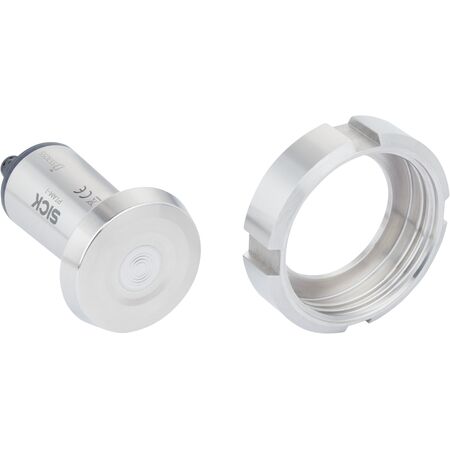

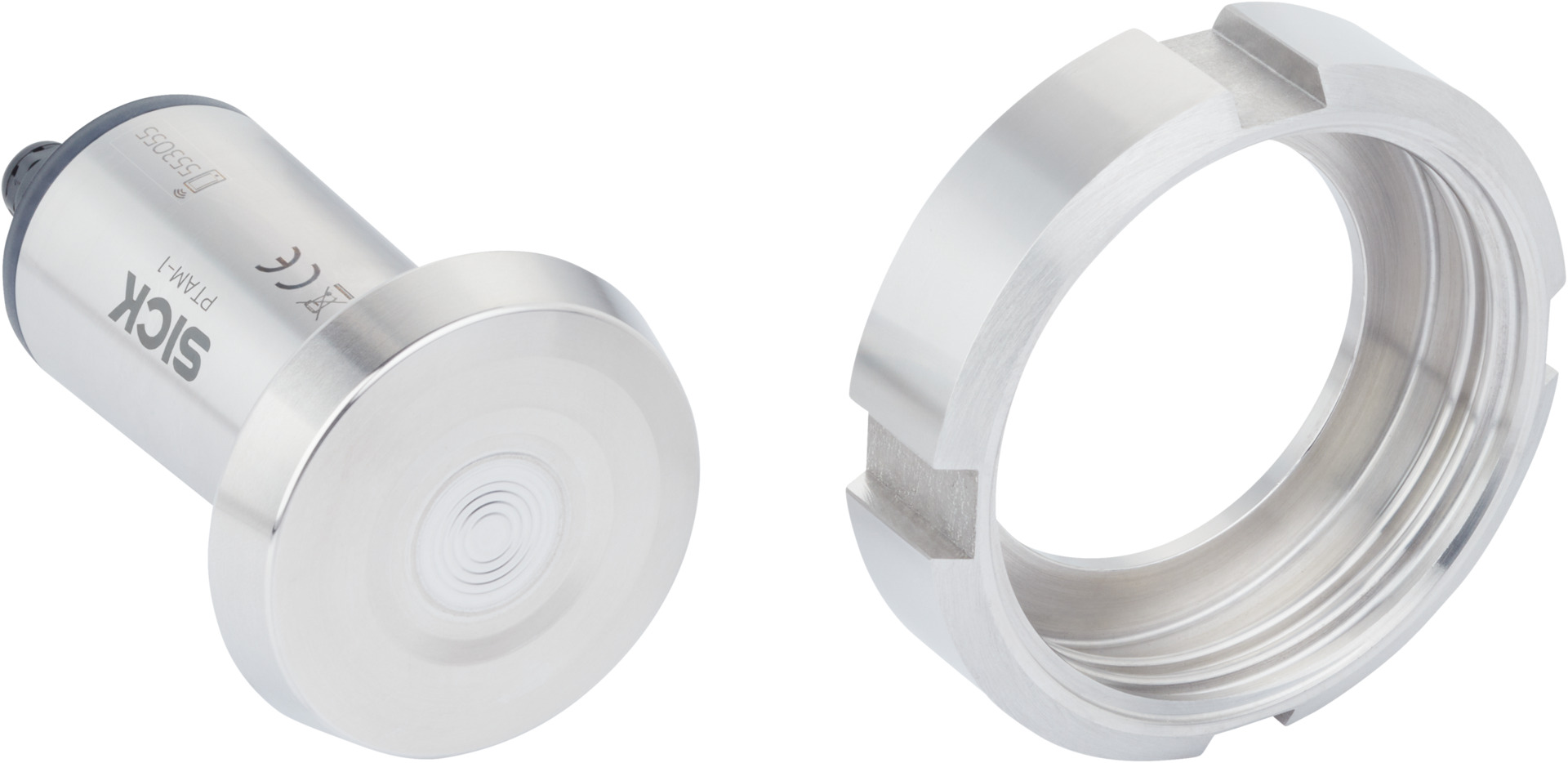

Pressure Transmitter PTAM-1XXXXE5GMZX | Gauge Pressure Sensor | 0-10 Bar Range | IP66, IP67, IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXE5GMZX is designed for precise gauge pressure measurement in both liquid and gaseous media. With a robust metallic pressure measuring cell and a measuring range of 0 to 10 bar (0 to 145 psi), it ensures high accuracy and reliability. Ideal for industrial process control, this sensor features a durable stainless steel construction and operates effectively in ambient temperatures from -40°C to +80°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature: -20°C to +130°C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: None
- Process connection: Coupling (DIN 11864-1) DN 25 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- CE conformity: EMC Directive 2014/30/EU, EN 61326-1, EN 61326-2-3:2013, 2014/53/EU
- Ex-approvals: Ex-free area (CE, UKCA, RCM, c-UL-us, EAC)
- Seal: FKM
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Temperature coefficient: < 0.15% / 10 K
- Rated temperature range: 0°C to +100°C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40°C to +80°C
- Storage temperature: -40°C to +80°C
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell for durability
- Measuring range from 0 to 10 bar (0 to 145 psi)
- Process temperature range from -20°C to +130°C
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 25 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin connection type
- Supply voltage from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ±0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Rated for operation in ambient temperatures from -40°C to +80°C
- Shock and vibration resistant according to IEC standards
- MTTF of 156 years ensuring long service life
- Minimum 10 million load cycles service life
