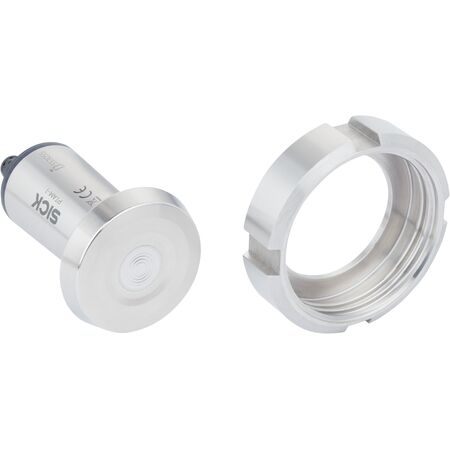

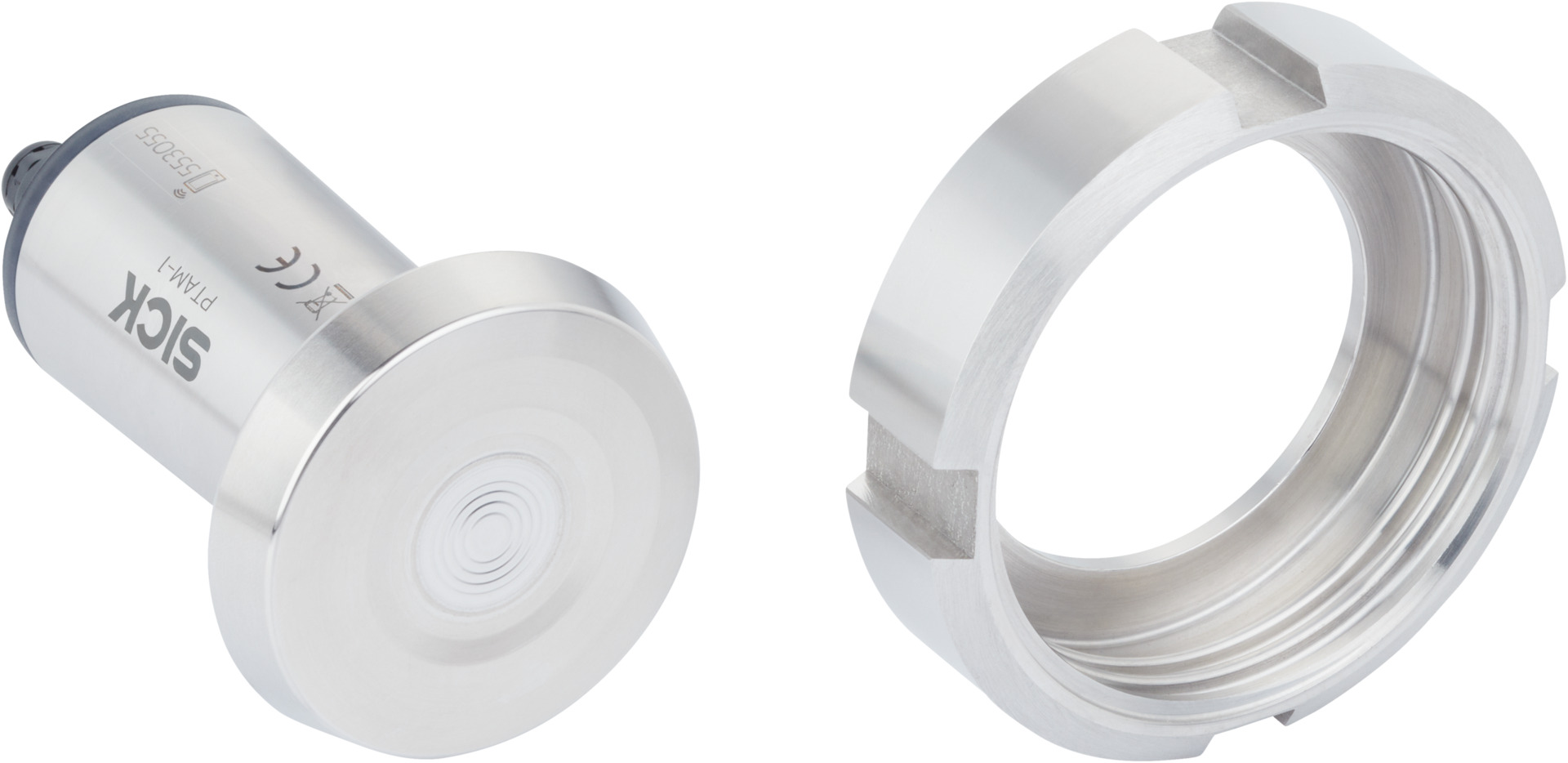

Pressure Transmitter PTAM-1XXXXE5IMZX | 0-25 Bar Range | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXE5IMZX is designed for precise gauge pressure measurement in liquids and gases, featuring a robust metallic pressure measuring cell and a wide range of 0 to 25 bar (0 to 360 psi). Ideal for industrial process control and food applications, this sensor ensures high accuracy with an output signal of 4 mA to 20 mA, and is built to withstand harsh environments with its IP66, IP67, and IP69 ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: 0 bar to 25 bar (0 psi to 360 psi)
- Process temperature: -20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 25 form A with union nut
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ±0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Ambient temperature operation: -40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 120mm x 50mm x 50mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquids and gases
- Pressure range from 0 bar to 25 bar (0 psi to 360 psi)
- Metallic pressure measuring cell for durability
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: Coupling (DIN 11864-1) DN 25 form A with union nut
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 316L and PBT/PC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rated IP66, IP67, and IP69 for protection against dust and water
- High accuracy of ≤ ±0.3% of span
- Fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Wide operating temperature range from -40 °C to +80 °C
- Certified for food contact and multiple international conformity declarations
