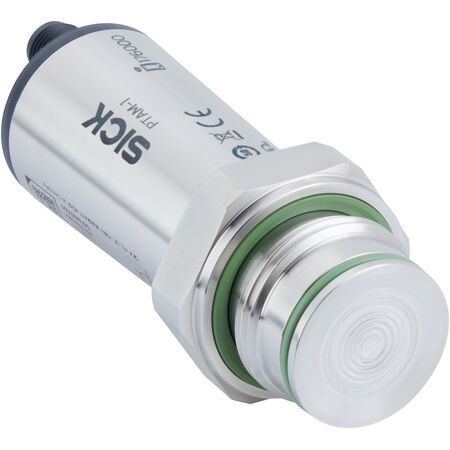

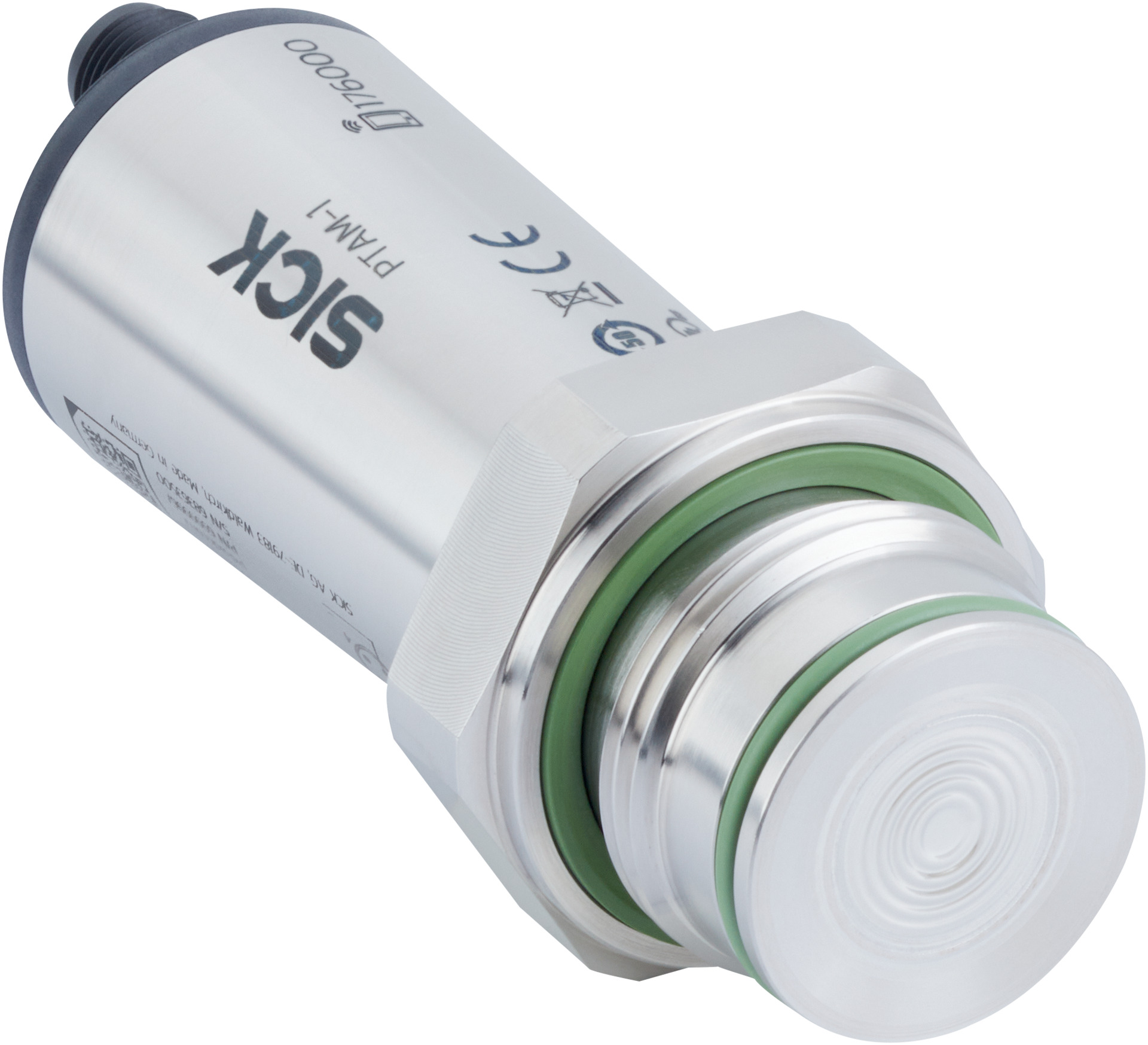

Pressure Transmitter PTAM-1XXXXLULMZX | 0 to 100 Bar Range | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXLULMZX is designed for precise gauge pressure measurement in both liquid and gaseous media. With a wide measuring range from 0 to 100 bar and a durable metallic pressure measuring cell, it’s perfect for industrial process control and automation systems. Featuring a robust stainless steel housing and high accuracy of ±0.3% of span, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 100mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell for durability
- Wide measuring range from 0 bar to 100 bar (0 psi to 1450 psi)
- Output signal: 4 mA to 20 mA, 2-wire
- Process connection: G ½ (ISO 228-1) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin
- Supply voltage from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- High enclosure rating: IP66, IP67, IP69
- Long service life with minimum 10 million load cycles
- High accuracy ≤ ±0.3% of span and fast response time ≤ 6 ms
- Temperature range for operation: -40 °C to +80 °C
- Certified with CE, UKCA, RCM, c-UL-us, and EAC approvals
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Automation systems requiring precise gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption with 4-20 mA output signal
- Long service life minimizes environmental impact from manufacturing and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PTAM-1XXXXLULMZX pressure sensor is available for immediate purchase, ideal for industrial and automation applications requiring reliable pressure measurement.
