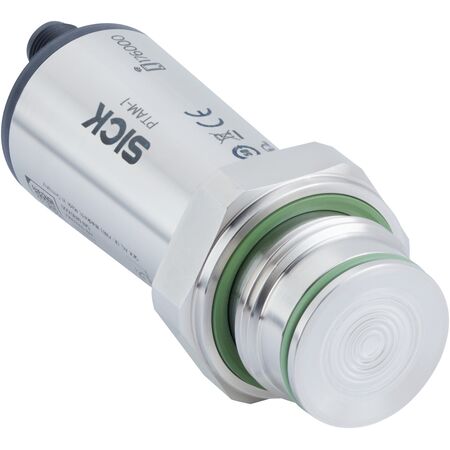

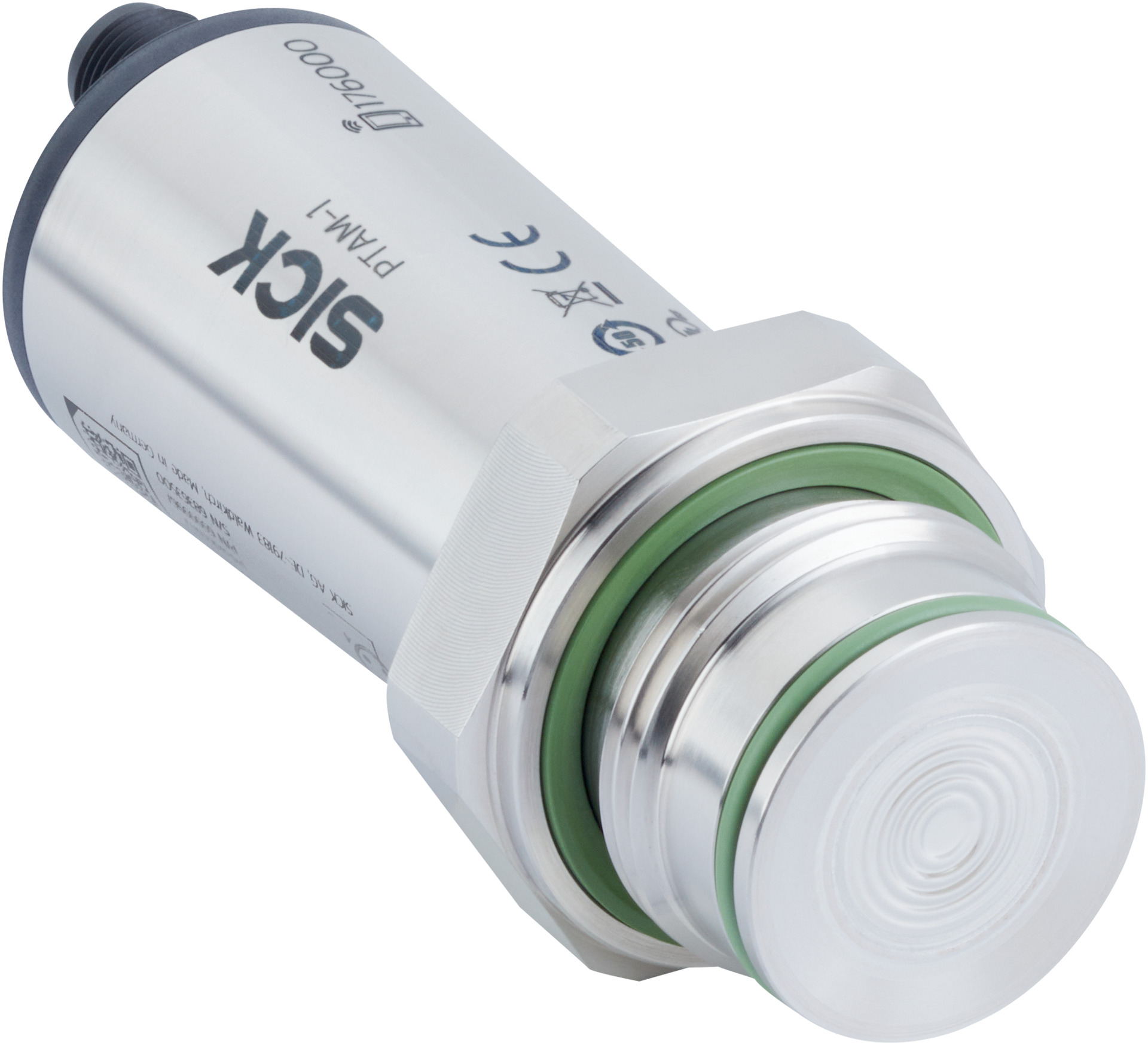

Pressure Transmitter PTAM-1XXXXLUOMZB | 0 to 600 Bar | Bluetooth Communication | IP66/IP67/IP69 Rated | by SICK
The Pressure Transmitter PTAM-1XXXXLUOMZB is designed for precise gauge pressure measurement from 0 to 600 bar, making it ideal for industrial process control of liquids and gases. With a robust stainless steel construction and Bluetooth communication for easy configuration, this sensor ensures high accuracy and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 600 bar (0 psi to 8,700 psi)
- Process temperature range: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: 4 mA to 20 mA, 2-wire
- Communication interface: Bluetooth
- Process connection: G ½ (ISO 228-1)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ± 0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Operating ambient temperature: –40 °C to +80 °C
- Storage temperature: –40 °C to +80 °C
- Shock load: Class 6M4 (50 g; 2.3 ms)
- Vibration load: Class 4M8 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 100mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure from 0 bar to 600 bar (0 psi to 8,700 psi)
- Metallic pressure measuring cell for durability
- Output signal: 4 mA to 20 mA, 2-wire
- Bluetooth communication interface for easy configuration
- Process connection: G ½ (ISO 228-1) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- Electrical safety features including overvoltage protection, short-circuit resistance, and reverse polarity protection
- Enclosure rated IP66, IP67, and IP69 for robust protection
- High accuracy of ≤ ± 0.3% of span and fast response time ≤ 6 ms
- Long-term stability with less than 0.1% drift per annum
- Wide operating temperature range from –40 °C to +80 °C
- Certified with CE, UKCA, RCM, c-UL-us, and EAC approvals
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in hydraulic and pneumatic systems
- Use in environments requiring high accuracy and reliability
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient 4-20 mA output signal
- Bluetooth interface reduces need for physical adjustments, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PTAM-1XXXXLUOMZB pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
