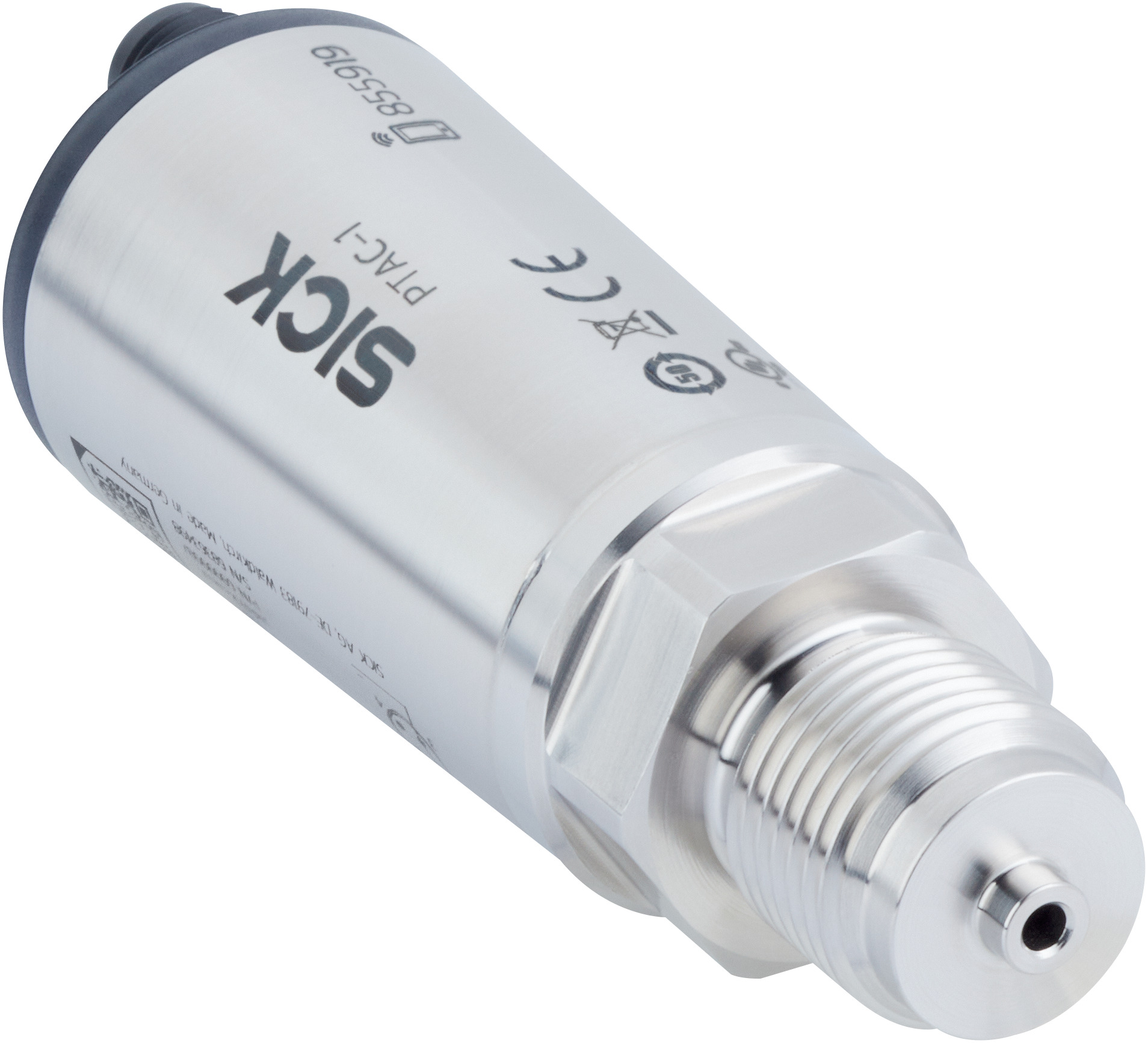

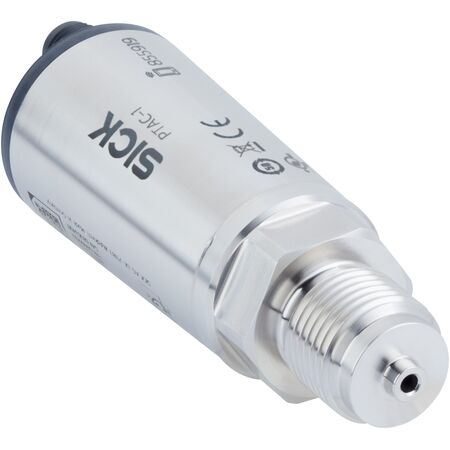

Pressure Transmitter PTAM-1XXXXTJGMAB | Gauge Pressure Sensor | IO-Link & Bluetooth | IP66, IP67, IP69 | by SICK
The Pressure Transmitter PTAM-1XXXXTJGMAB is designed for precise gauge pressure measurement in both liquid and gaseous media. With a robust metallic pressure measuring cell and a measuring range of 0 to 10 bar, it’s perfect for industrial process control. Featuring IO-Link and Bluetooth communication, this sensor ensures reliable performance in demanding environments, making it ideal for manufacturing and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Liquid, gaseous
- Pressure type: Gauge pressure
- Pressure unit: bar, psi
- Measuring chamber type: Metallic pressure measuring cell
- Measuring range: 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature: –20 °C to +130 °C
- Maximum ohmic load RA: RA < (L+ - 12) / 0.022 A (Ohm)
- Output signal: IO-Link, 3-wire, 2x transistor or 4–20 mA plus 1x transistor
- Communication interface: IO-Link, Bluetooth
- Process connection: G ¼ B (EN 837)
- Wetted parts: 316L stainless steel
- Housing material: Stainless steel 316L (1.4404), PBT/PC
- Connection type: M12 round connector, 4-pin
- Supply voltage: 12 V DC to 35 V DC
- Electrical safety: Overvoltage protection 36 V DC, short-circuit resistance, reverse polarity protection
- Dielectric strength: 500 V AC, NEC Class 02 power supply
- Enclosure rating: IP66, IP67, IP69
- Accuracy: ≤ ± 0.3% of span
- Response time: ≤ 6 ms
- Long-term drift: < 0.1% per annum
- Temperature coefficient: < 0.15% per 10 K
- Rated temperature range: 0 °C to +100 °C
- Service life: Minimum 10 million load cycles
- Shock load: Class 6M4 IEC60721-3-6 (50 g; 2.3 ms)
- Vibration load: Class 4M8 IEC60721-3-4 (5 g, 4 Hz to 200 Hz)
- Dimensions (H x L x W): 80mm x 30mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range from –20 °C to +130 °C
- Output signals include IO-Link, 3-wire, 2x transistor, or 4–20 mA plus 1x transistor
- Communication interfaces: IO-Link and Bluetooth
- Process connection: G ¼ B (EN 837) with 316L stainless steel wetted parts
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin connection type
- Supply voltage range: 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, reverse polarity protection
- Enclosure rating IP66, IP67, and IP69 for robust protection
- Long service life with minimum 10 million load cycles
- High accuracy of ≤ ± 0.3% of span and fast response time ≤ 6 ms
- Shock and vibration resistant according to IEC standards
- Certifications including CE, UKCA, RCM, c-UL-us, EAC, and food contact material declaration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pressure sensor integration and electrical safety standards.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation systems
- Use in environments requiring gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption with efficient electronic design
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK PTAM-1XXXXTJGMAB pressure sensor is available for immediate purchase, ideal for industrial and process control applications requiring precise pressure measurement.
