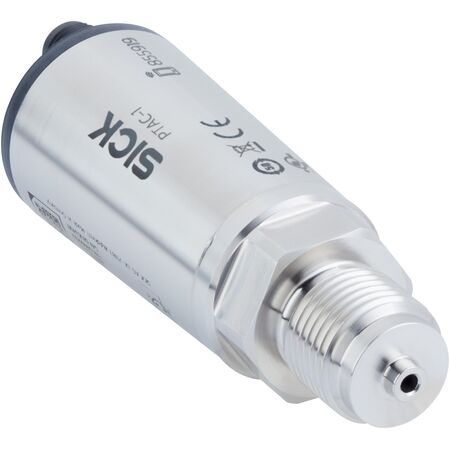

Pressure Transmitter PTAM-1XXXXTJGMAX | 0 to 10 Bar Range | IO-Link & High Accuracy | IP66/IP67/IP69 Rated | by SICK
The PTAM-1XXXXTJGMAX Pressure Transmitter is designed for precise gauge pressure measurement in both liquid and gaseous media. With a measuring range of 0 to 10 bar and an IP66/IP67/IP69 rating, it’s perfect for industrial automation and process control applications. Built with a durable metallic pressure measuring cell and featuring IO-Link communication, this sensor ensures high accuracy and long-term stability, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 80mm x 50mm x 30mm
- Weight: 0.25 kg
Key Features
- Measures gauge pressure in liquid and gaseous media
- Metallic pressure measuring cell for durability
- Measuring range from 0 bar to 10 bar (0 psi to 145 psi)
- Process temperature range from –20 °C to +130 °C
- Output signals include IO-Link, 3-wire, 2x transistor or 4-20 mA plus 1x transistor
- Communication interface: IO-Link
- Process connection: G ¼ B (EN 837)
- Wetted parts made of 316L stainless steel
- Housing made of stainless steel 316L and PBT/PC
- M12 round connector, 4-pin
- Supply voltage from 12 V DC to 35 V DC
- Electrical safety features including overvoltage protection, short-circuit resistance, reverse polarity protection
- Enclosure rating IP66, IP67, IP69 for robust protection
- High accuracy ≤ ± 0.3 % of span
- Fast response time ≤ 6 ms
- Long-term stability with drift < 0.1 % per annum
- Rated temperature range 0 °C to +100 °C
- Shock and vibration resistant according to IEC standards
- MTTF of 156 years ensuring long service life
- Minimum 10 million load cycles service life
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and calibration, especially for IO-Link communication and electrical safety compliance.
Applications
- Industrial process control for liquid and gaseous media
- Pressure monitoring in manufacturing and automation
- Use in environments requiring high accuracy gauge pressure measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- High accuracy and stability reduce energy waste in process control
- Compliant with China-RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK PTAM-1XXXXTJGMAX Pressure Sensor is available for immediate purchase, ideal for industrial automation and process control applications.
