Probe-PRO Tracing Probe | Non-Metallic Conductive Tip | Auto Power-Off | Work Light | @Each by Wattmaster
The Probe-PRO Tracing Probe is designed for efficient wire tracing in telecommunications and data wiring. Featuring a replaceable non-metallic conductive tip and a built-in work light, it’s perfect for use in dark environments. With a 3.5 mm headphone jack for audio monitoring, this tool is ideal for professionals needing reliable performance in noisy settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Probe-PRO Tracing Probe | Non-Metallic Conductive Tip | Auto Power-Off | Work Light | @Each by Wattmaster
Brand: Wattmaster
SKU: A-VDV500-123
Alternatively Known As: Tone Tracer Probe, Wire Tracing Probe, Non-Active Wire Tracer, Probe-Pro Tone Tracer
Technical Specifications
- Power Source: 4 x AAA batteries (included)
- Battery Life: Approximately 25 hours
- Tip: Replaceable non-metallic conductive tip
- Indicators: Power-on LED, low-battery LED, terminal block confirmation LED
- Connectivity: 3.5 mm headphone jack for audio monitoring
- Auto Power-Off: Yes
- Material: Plastic and metal construction
- Overall Length: 227 mm
- Overall Width: 30 mm
- Overall Height: 36 mm
- Dimensions (H x L x W): 227mm x 36mm x 30mm
- Weight: 0.2 kg

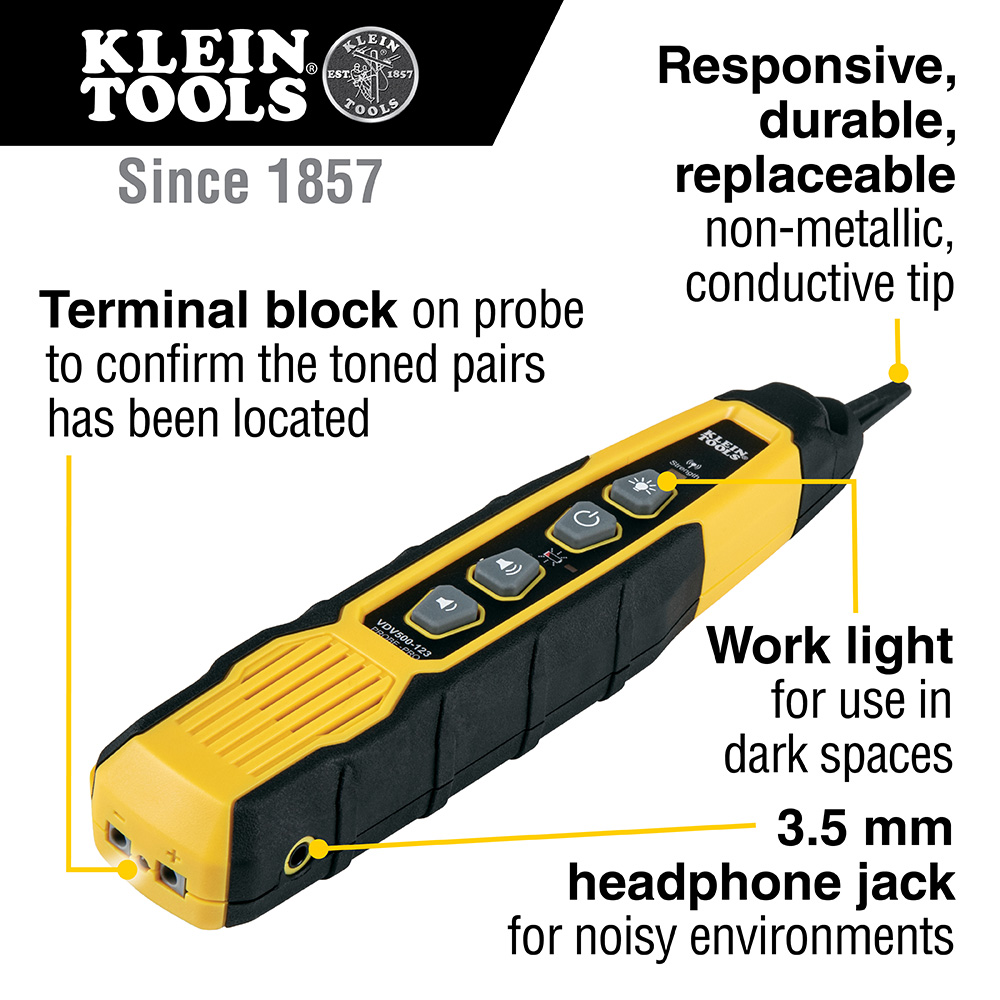

Key Features
- Traces open-ended, non-energised wiring when used with Toner-Pro Tone Generator

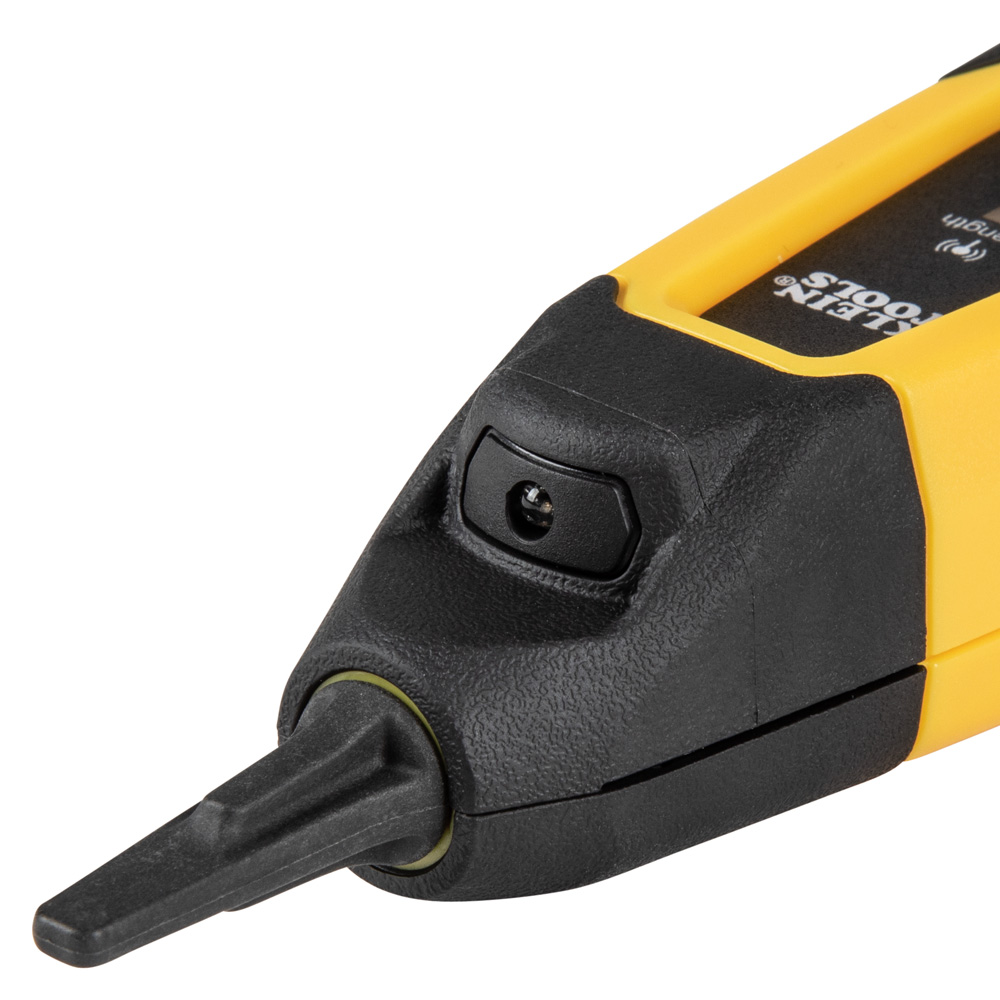

- Responsive, durable, replaceable non-metallic conductive tip
- Work light for use in dark spaces
- 3.5 mm headphone jack for use in noisy environments
- Terminal block to confirm the toned pair has been located
- Tool-less, twist-and-lock replacement tip available
- One-push power button with power-on LED indicator
- Auto Power-Off and low-battery indicator
- Includes 4 x AAA batteries and a loop for a lanyard
- Compatible with Klein's Scout™ Pro, LAN Scout™, Jr. and Commander™ testers
Professional Installation Requirements
- No professional installation required; designed for use by trained technicians and professionals familiar with wire tracing equipment.
Applications

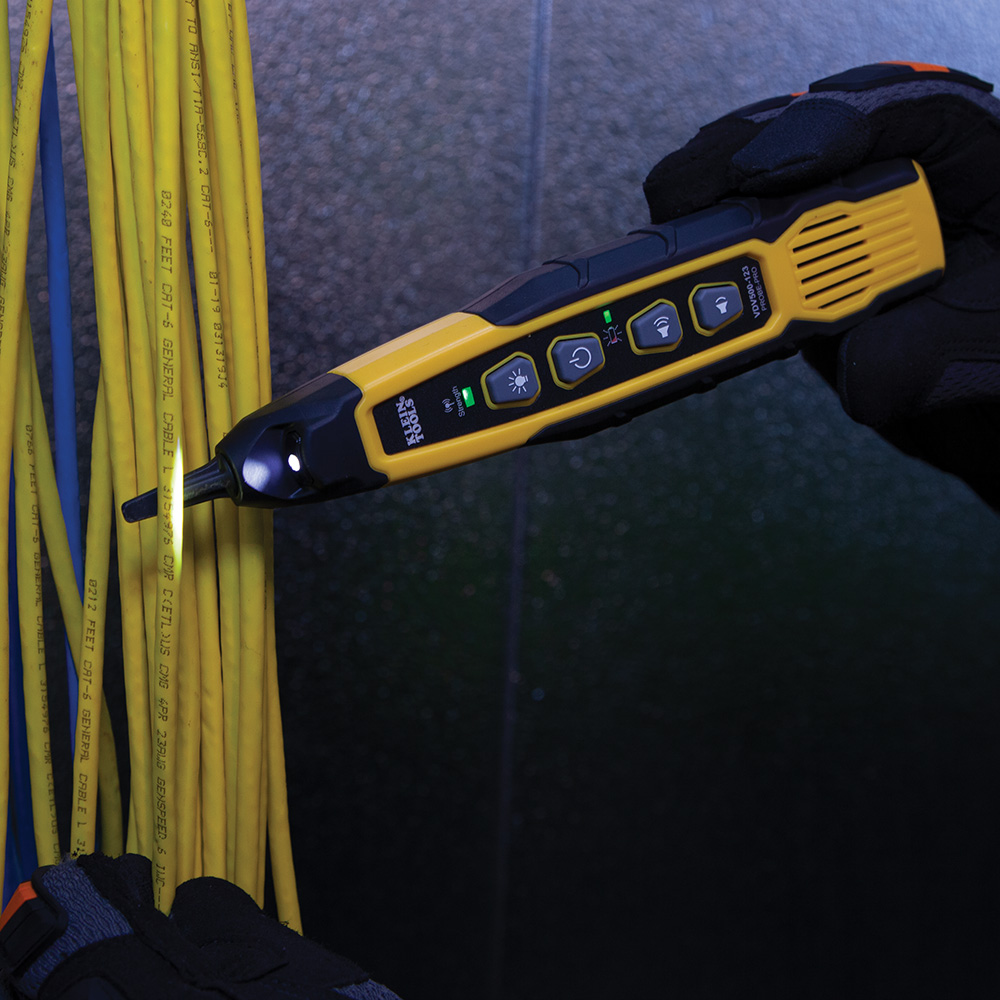

- Wire tracing in telecommunications and data wiring

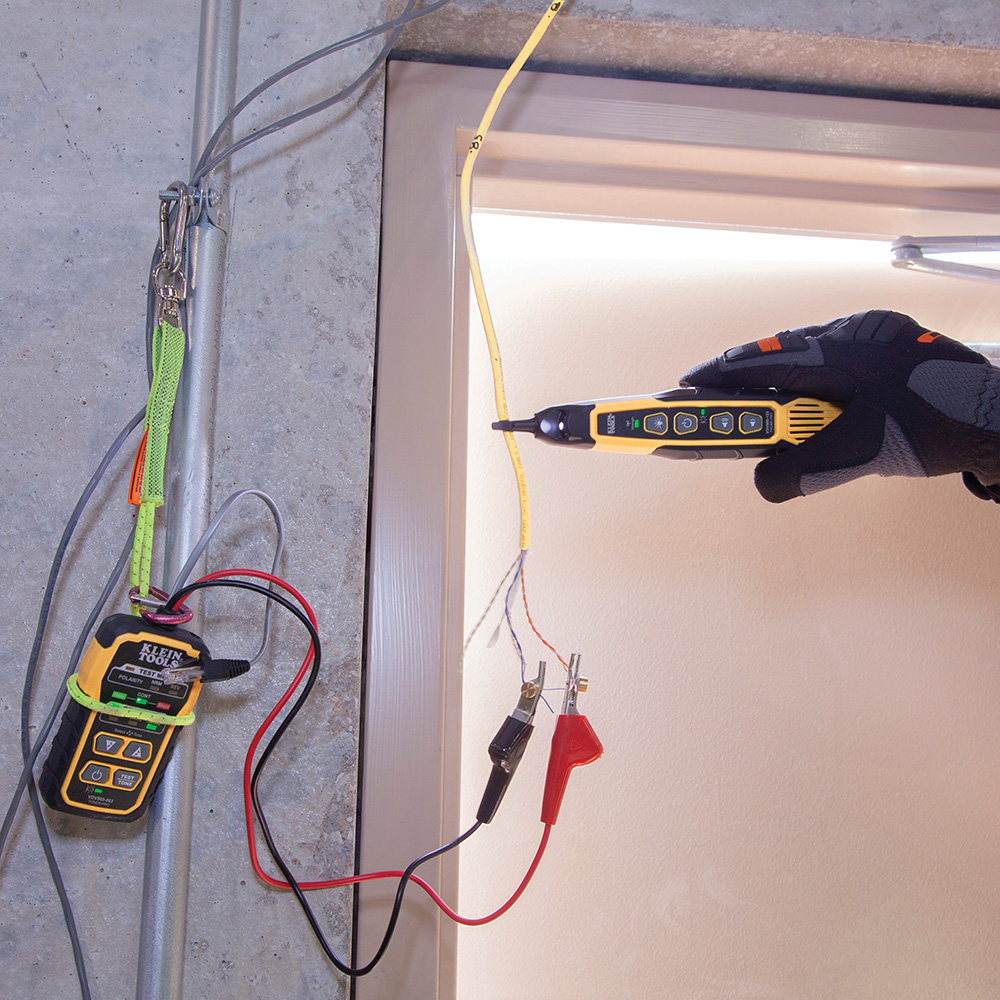

- Use with Toner-Pro Tone Generator for non-active wiring tracing
- Ideal for noisy environments with headphone jack compatibility
- Suitable for use in dark spaces with built-in work light
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Includes auto power-off feature to conserve battery life
- Uses replaceable batteries to reduce electronic waste
Warranty Information
Warranty details available upon purchase; typically includes manufacturer defects coverage.
Available Now
The Wattmaster Probe-PRO Tracing Probe is available for immediate purchase, ideal for telecommunications and data wiring professionals requiring reliable wire tracing tools.
