Product information:

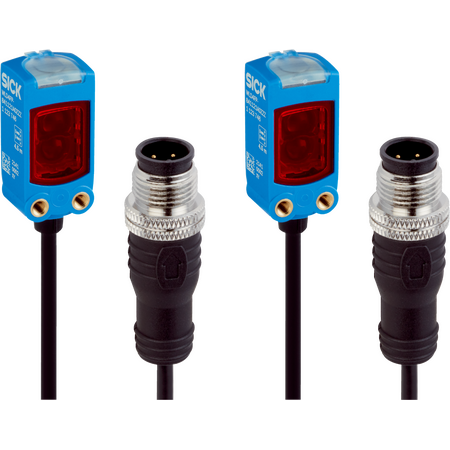

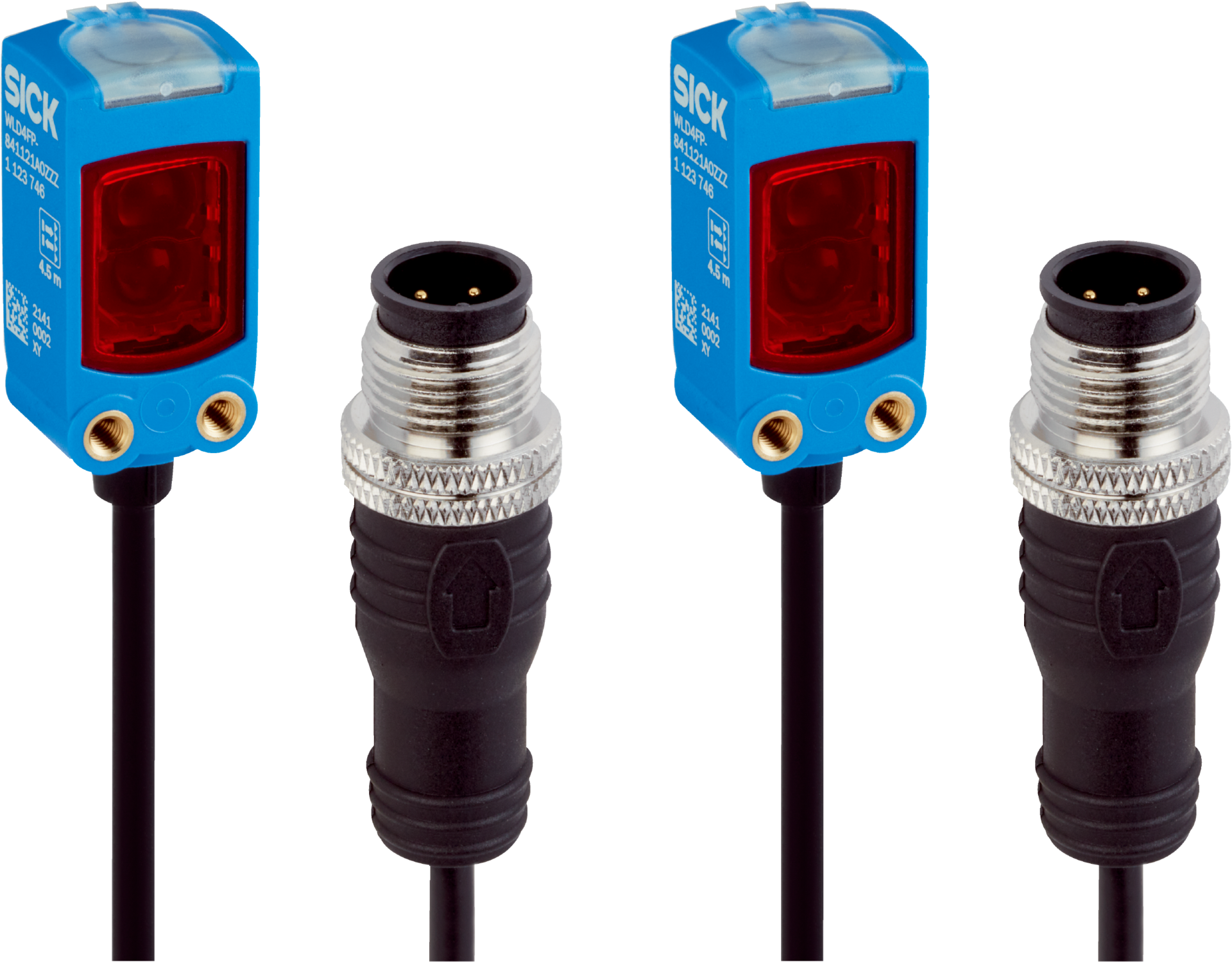

The SICK Through-beam Photoelectric Sensor WEO4FP-84161100A00 offers reliable object detection with a sensing range up to 10 meters, featuring durable construction, IO-Link communication, and high ambient resistance for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Product information:
Brand: SICK
SKU: 2126122
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, SICK sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 10 m (recommended 0 m to 7.5 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Cable: PVC, 140 mm length with M12 male connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz
- EMC: EN 60947-5-2 compliant
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 10 m with recommended best performance up to 7.5 m
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 communication interface for sensor configuration and Smart Task functions
- Dual complementary push-pull digital outputs with dark switching
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- EMC compliant with EN 60947-5-2 standard
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and configuration using IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK Through-beam Photoelectric Sensor WEO4FP-84161100A00 is available for immediate purchase, ideal for industrial automation and safety applications.
