Product information:

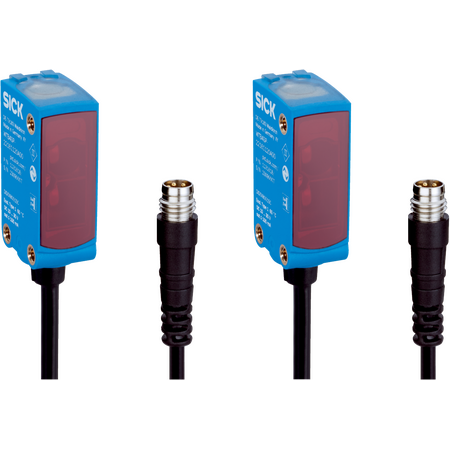

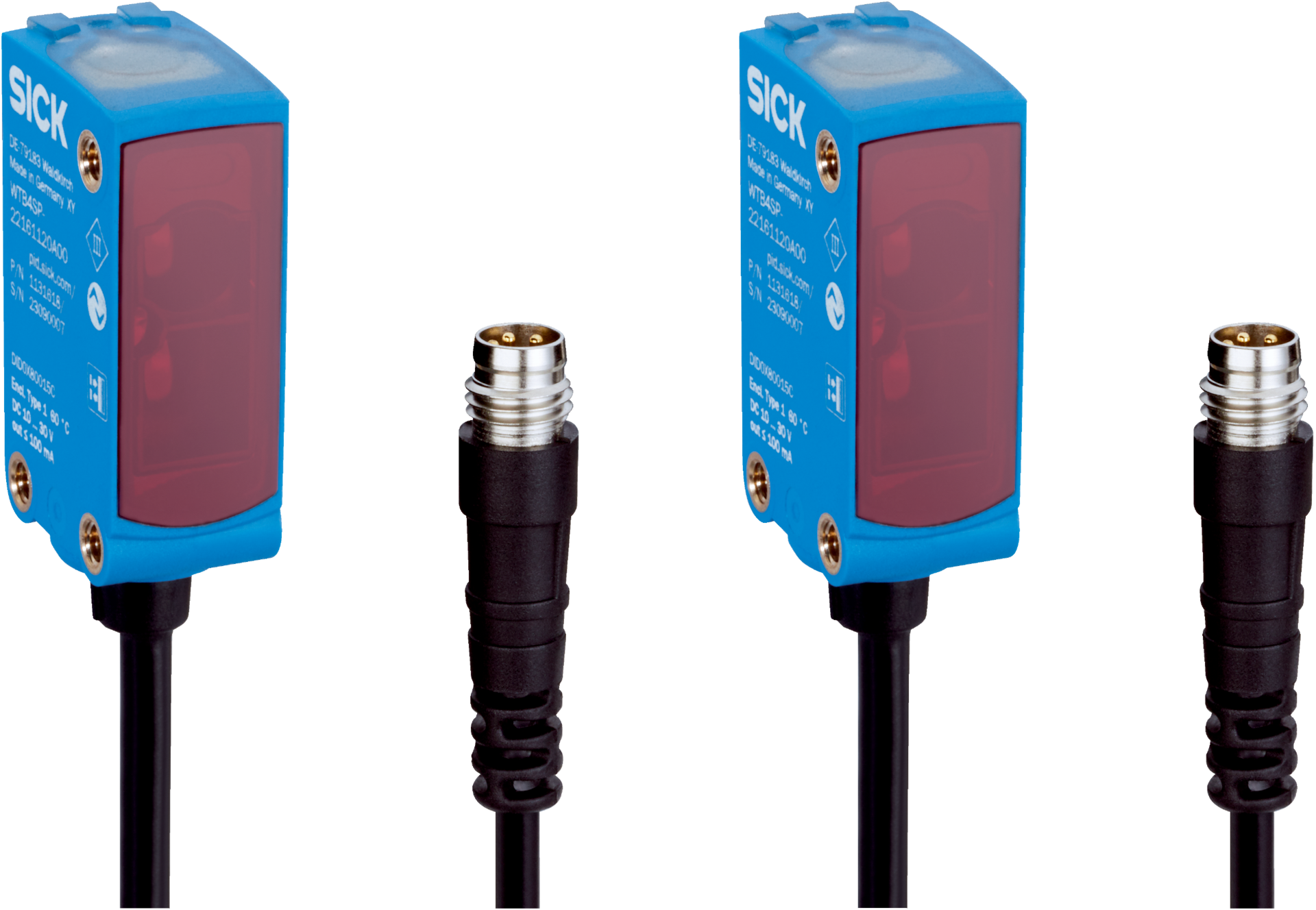

The SICK WSO4SP-323ZZ1A0ZZZ through-beam photoelectric sensor offers reliable object detection with a sensing range up to 12 meters, featuring IO-Link communication, robust IP66/IP67 housing, and advanced LED indicators for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Product information:
Brand: SICK
SKU: 2139772
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSO4SP sensor, industrial object sensor, IO-Link photoelectric sensor
Technical Specifications
- Sensing range: 0 to 12 m (recommended 0 to 9 m)
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Connection: Cable with M8 male connector, 4-pin, 114 mm length
- Housing material: Plastic VISTAL®
- Compliance: EN 60947-5-2 electromagnetic compatibility
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 12 m, recommended 0 to 9 m for best performance
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment, power, IO-Link mode, and light beam status
- Robust plastic VISTAL® housing with slim design
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Wide ambient operating temperature range from -40°C to +60°C
- IP66 and IP67 rated enclosure for dust and water protection
- Shock resistance 30 g and vibration resistance 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment, wiring, and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK Through-beam Photoelectric Sensor WSO4SP-323ZZ1A0ZZZ is available for immediate purchase, ideal for industrial automation and object detection applications.
