Product information:

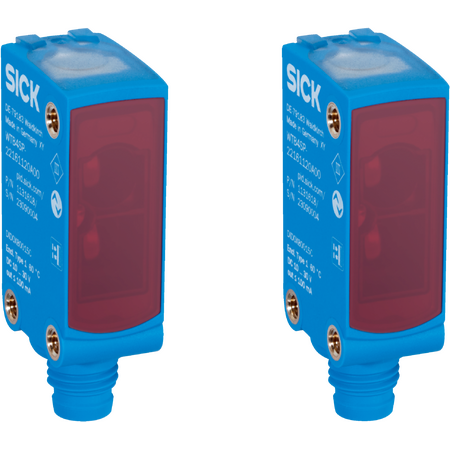

The SICK Through-beam Photoelectric Sensor features a PinPoint LED for precise visible red light detection up to 12 meters, ideal for industrial object detection with robust IP66/IP67 protection and durable construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Product information:
Brand: SICK
SKU: 2141087
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial sensor, Object detection sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), max 100 mA output current
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- LED wavelength: 635 nm, free LED risk group
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- EMC compliant to EN 60947-5-2
- Dimensions (H x L x W): 41.9mm x 18.6mm x 12.1mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Visible red PinPoint LED light source with 635 nm wavelength
- Sensing range up to 12 m, recommended 0 to 9 m for best performance
- LED indicators for alignment, power, and object detection status
- On delay 200 ms on pin 2
- Slim plastic VISTAL® housing with PMMA front screen
- Male M8 4-pin connector
- High shock and vibration resistance
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and secure electrical connections.
Applications
- Industrial automation for object detection
- Detection of poorly remitting and tilted objects
- Use in harsh environments requiring IP66/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
