Profibus Coupler Module | DP-V0 Slave Functionality | IP50 Rated | by SICK
The Profibus Coupler Module WI180C-PBS01 is designed for seamless integration in industrial automation systems, featuring DP-V0 slave functionality and supporting transmission rates from 9.6 kbit/s to 12 Mbit/s. With an IP50 rated enclosure, it ensures reliable performance in fieldbus communication networks, making it ideal for sensor integration and reducing wiring complexity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

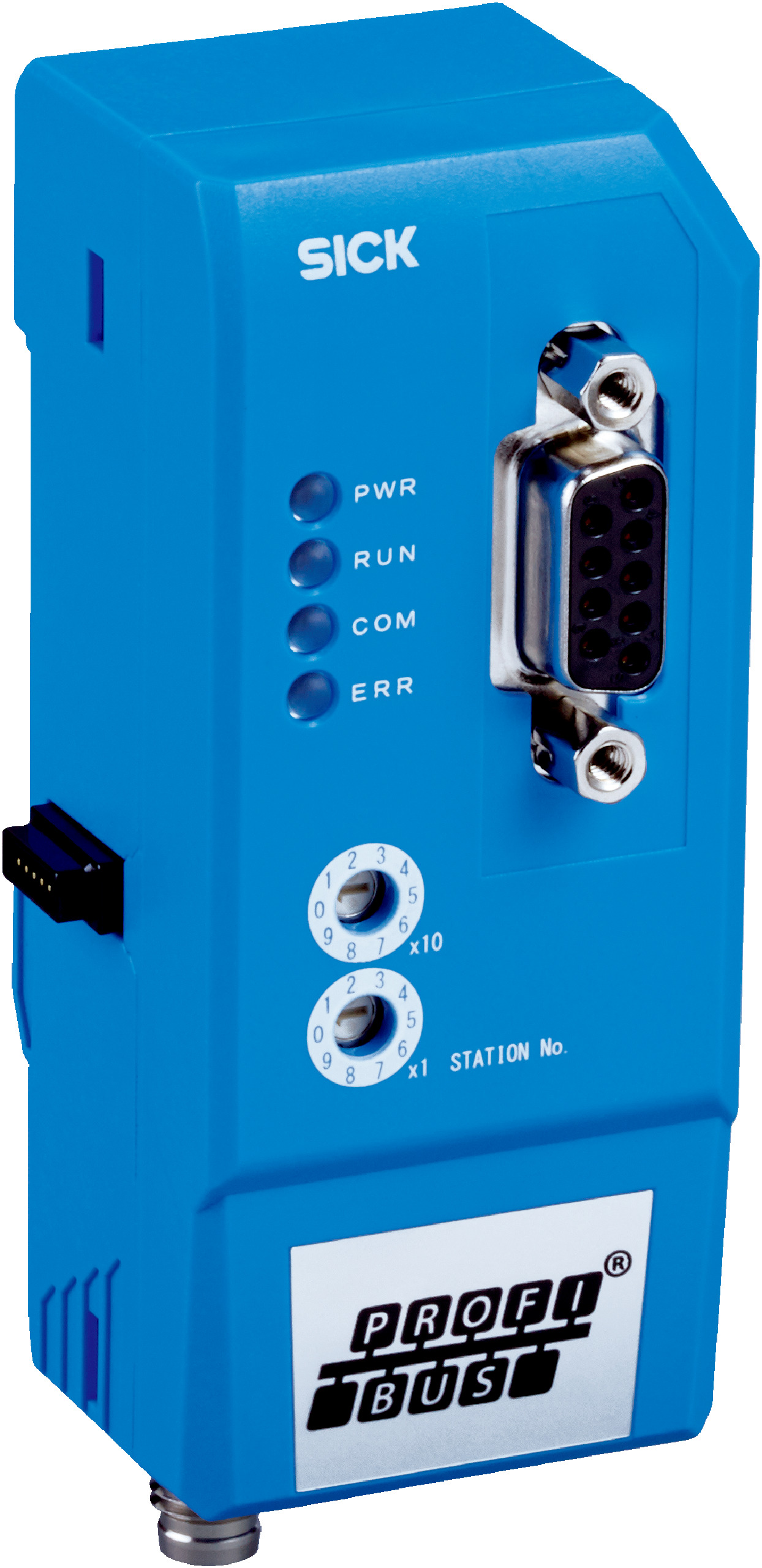

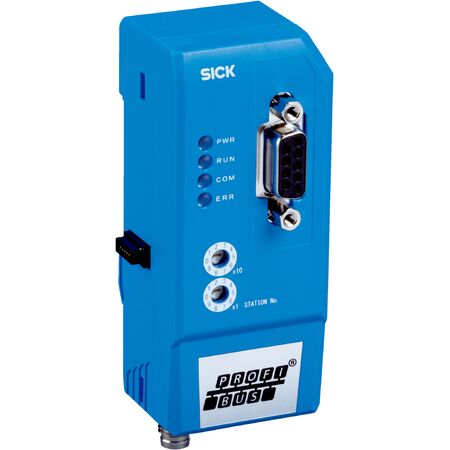

Product Name/Title: Profibus Coupler Module | DP-V0 Slave Functionality | IP50 Rated | by SICK
Brand: SICK
SKU: 6055231
Alternatively Known As: Profibus Coupler Module, Fieldbus Adapter, Profibus DP Slave Module
Technical Specifications
- Accessory group: Fieldbus modules
- Profibus DP-V0 slave functionality
- Transmission rates: 9.6 kbit/s to 12 Mbit/s
- D-Sub 9-pin RS485 Profibus connection
- M8 4-pin connection for sensor switching output
- Enclosure rating: IP50
- Dimensions (H x L x W): 38mm x 103mm x 39mm
- Weight: 0.15 kg
Key Features
- Profibus DP-V0 slave module
- Supports transmission rates from 9.6 kbit/s to 12 Mbit/s
- D-Sub 9-pin RS485 Profibus connection
- M8 4-pin connection for sensor switching output
- IP50 rated enclosure for protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with Profibus networks and electrical safety standards.
Applications
- Industrial automation systems
- Fieldbus communication networks
- Sensor integration with Profibus DP-V0 networks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient communication reducing wiring complexity and material use
- Supports compliance with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WI180C-PBS01 Profibus Coupler Integration Module is available for immediate purchase, ideal for industrial automation and sensor integration applications.
