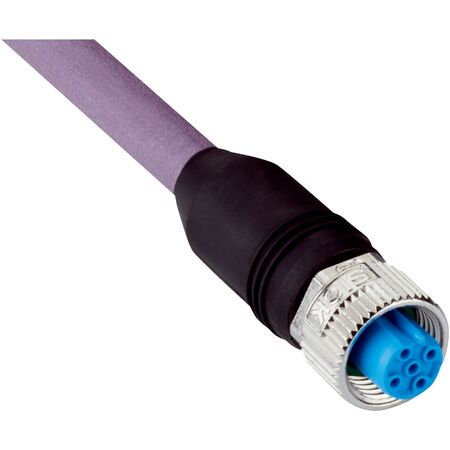

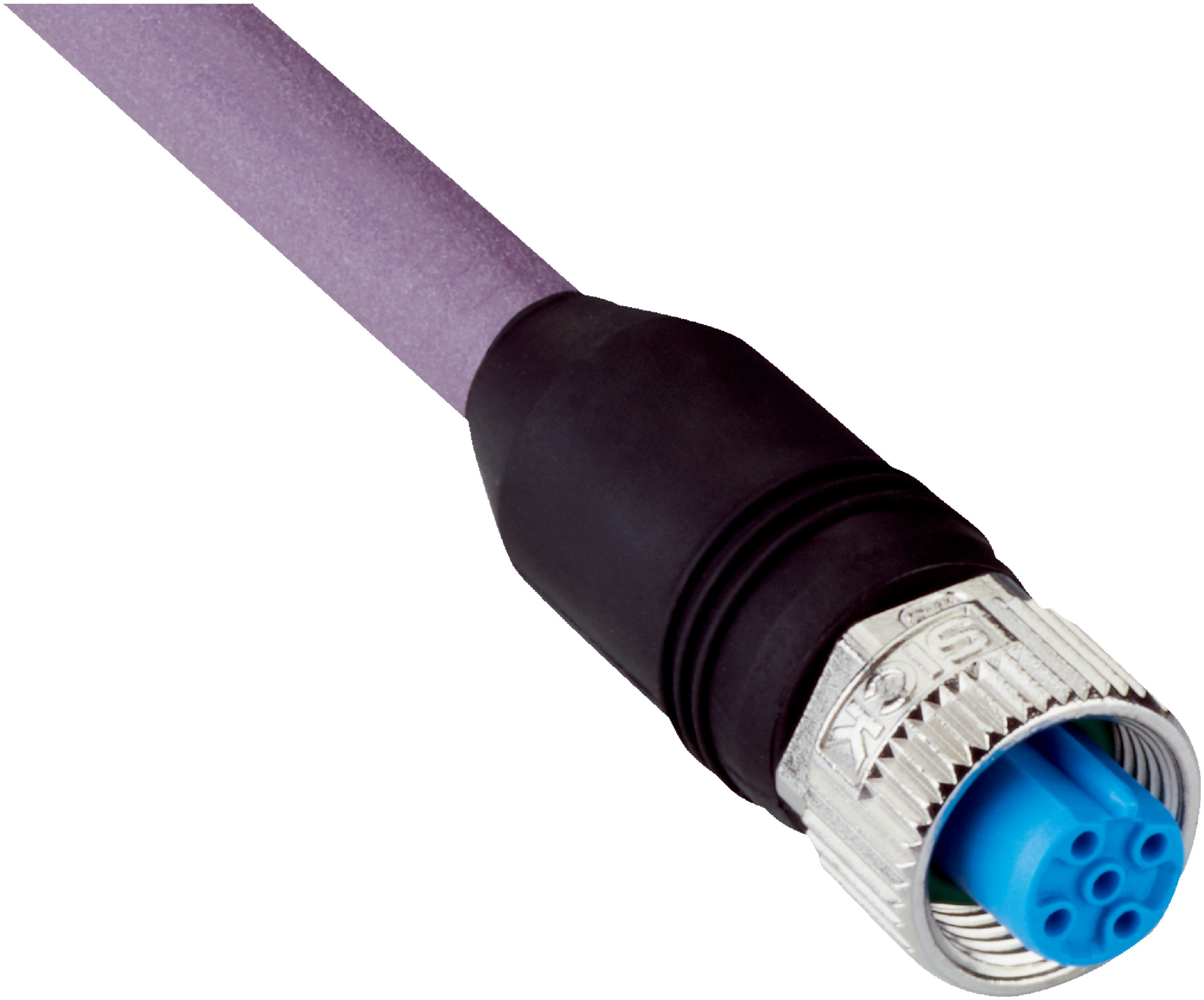

PROFIBUS DP Cable Assembly | M12 B-Coded Connector | 2m Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFIBUS DP cable assembly features a female M12 B-coded connector and flying leads, designed for reliable fieldbus communication in industrial automation. With a robust 2m halogen-free PUR cable and IP65/IP66K/IP67 enclosure rating, it ensures durability in harsh environments, making it ideal for drag chain operations and zones with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 2-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -20 °C to +60 °C, Stationary position -40 °C to +80 °C, Drag chain operation -20 °C to +60 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 2000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 2-pin, straight, B-coded
- Flying leads with screw connection locking plug
- Cable: 2 m, 2-wire, PUR, halogen-free, violet jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on position
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Current loading up to 4 A
- Data transmission rate up to 0.012 Gbit/s
- UL File No. E335179 certified
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems using PROFIBUS DP
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable and flame retardant materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2B22-020PB1XLEAX cable assembly is available for immediate purchase, ideal for industrial automation and fieldbus communication applications.
