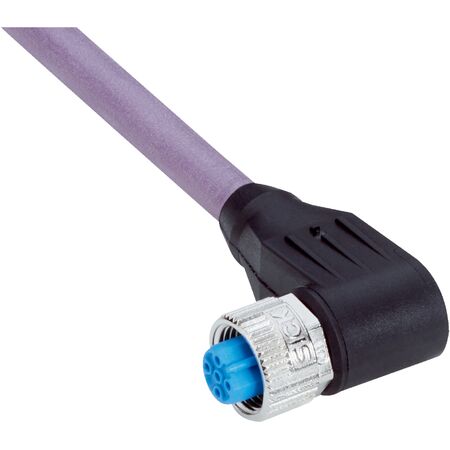

PROFIBUS DP Cable Assembly | M12 Female Connector | 10m Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFIBUS DP cable assembly features a female M12 connector and a 10m halogen-free PUR cable, designed for reliable fieldbus communication in industrial automation. With an IP65/IP66K/IP67 enclosure rating, it withstands harsh environments, making it ideal for drag chain operations and zones with oils and lubricants. This cable supports data transmission rates up to 0.012 Gbit/s, ensuring efficient communication in your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 2-pin, angled, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 7.5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -20 °C to +60 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -20 °C to +60 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector M12, 2-pin, angled, B-coded
- 10 m PUR halogen-free cable with 2 wires and shielding
- High bending radius suitable for flexible and stationary use
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Supports data transmission rate up to 0.012 Gbit/s
- UL and cULus certified with flame retardant cable jacket
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with industrial fieldbus systems and electrical safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems using PROFIBUS DP
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG2B22-100PB1XLEAX PROFIBUS DP cable assembly is available for immediate purchase, ideal for industrial automation and drag chain applications.
