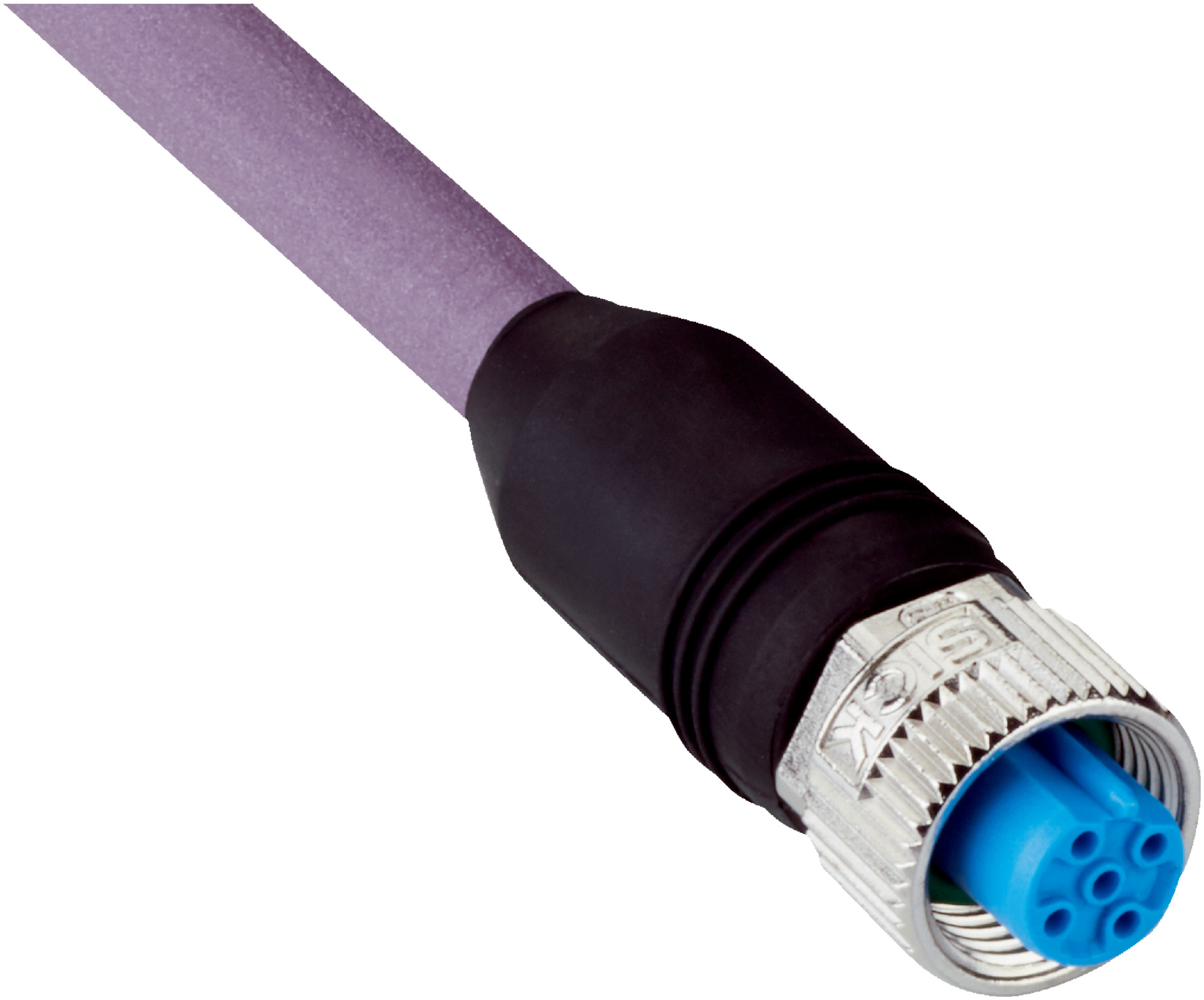

PROFIBUS DP Cable | M12 Female Connector | 10m PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFIBUS DP Cable is designed for reliable fieldbus communication in industrial automation, featuring a 10m PUR halogen-free cable with a robust M12 female connector. Ideal for drag chain operations and environments with oils and lubricants, this cable supports data transmission rates up to 0.012 Gbit/s and operates in extreme temperatures from -40 °C to +85 °C, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 2-pin, straight, B-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 10 m
- Cable type: 2-wire, PUR, halogen-free
- Cable diameter: 7.7 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 7.5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: 5,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, PROFIBUS DP
- Data transmission rate: ≤ 0.012 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -20 °C to +60 °C, Stationary position -40 °C to +80 °C, Drag chain operation -20 °C to +60 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 13mm x 10000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector, M12, 2-pin, straight, B-coded
- 10 m PUR halogen-free cable with violet jacket
- Shielded cable with 0.25 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Supports data transmission rate up to 0.012 Gbit/s
- Rated impulse voltage 1.5 kV and current loading 4 A
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial fieldbus systems and electrical safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems using PROFIBUS DP
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacements and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF2B22-100PB1XLEAX PROFIBUS DP cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
