Profibus DP Communication Module | 9-Way SUB-D Connector | LED Indicators by Clipsal
Profibus DP communication module with 9-way SUB-D connector and LED indicators—ideal for industrial integration with Modicon M241 and M251 controllers. Built for reliable communication, with professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

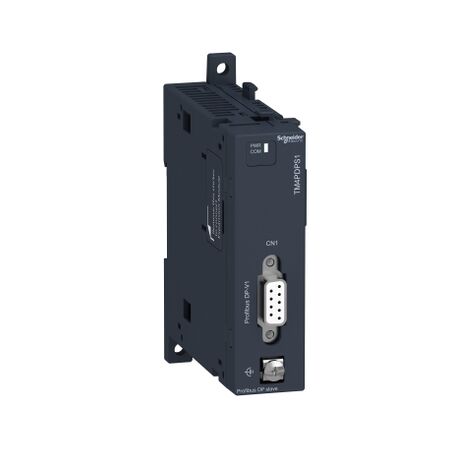

Product Name/Title: Modicon M241, Network Switch Module, 1 Profibus DP Slave
Brand: Clipsal
SKU: TM4PDPS1
Alternatively Known As: Profibus DP Communication Module, Modicon M241 Communication Module
Technical Specifications
- Product type: Profibus DP communication module.
- Compatibility: Modicon M241 and M251 logic controllers.
- Integrated connection type: Profibus DP female SUB-D 9 connector.
- Communication port protocol: Profibus DP V0/V1.
- Current consumption: 290 mA at 5 V DC.
- Power dissipation: 1.5 W.
- Transmission rate: Up to 12 Mbit/s depending on bus length.
- Insulation: 1000 V DC between bus and internal logic.
- Electrical connection: Screw connector terminal and SUB-D 9 connector.
- IP Rating: IP20 with protective cover.
- Dimensions (H x L x W): 90mm x 90mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides slave Profibus DP communication.
- Equipped with a 9-way SUB-D connector.
- Local signaling with LED indicators for power supply and communication.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Integration with Modicon M241 and M251 controllers for communication.
Standards & Compliance
- Complies with IEC 61131-2 and UL 508 standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- PVC free.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon M241 Network Switch Module is available now for immediate purchase. Ideal for industrial applications requiring reliable communication.
