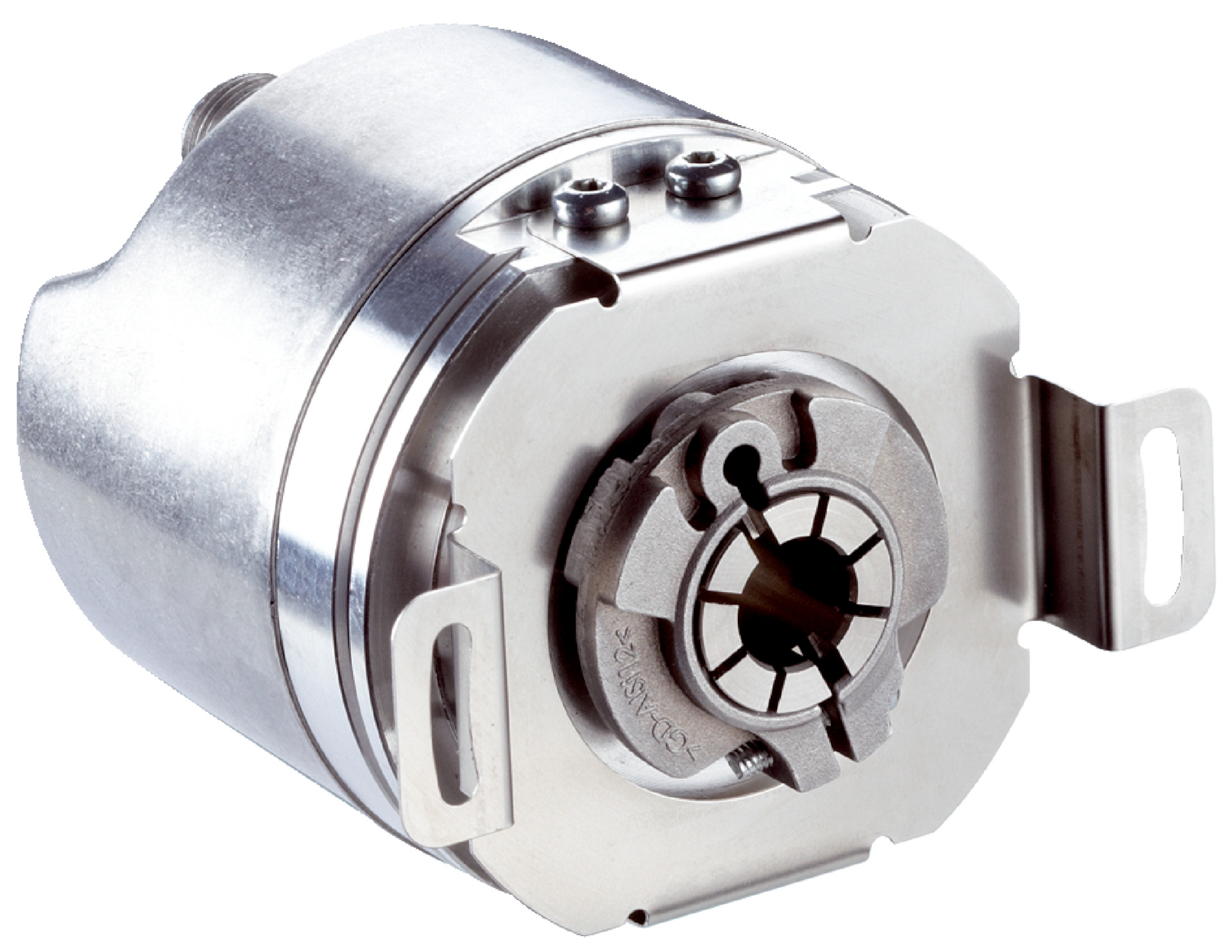

PROFIBUS DP Encoder A3M60A-BDPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
The PROFIBUS DP Encoder A3M60A-BDPB014x17 offers high precision with a maximum resolution of 16,384 steps per revolution and robust IP67 protection. Ideal for industrial automation and motion control, this encoder features a stainless steel shaft and a wide operating temperature range of -30°C to +80°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Encoder A3M60A-BDPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1053331
Alternatively Known As: PROFIBUS DP Encoder, Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 131,072 revolutions (14 bit x 17 bit)
- Error limits G: 0.35° at room temperature
- Repeatability standard deviation σr: 0.15° at room temperature
- Communication interface: PROFIBUS DP (DPV0 / DPV1 / DPV2)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Connection type: 2x Male M12 5-pin axial, 1x Female M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -30°C to +80°C
- Resistance to shocks: 80 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- PROFIBUS DP communication interface with DPV0 / DPV1 / DPV2 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High resistance to shocks (80 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Manufacturing process monitoring and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK A3M60A-BDPB014x17 PROFIBUS DP Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
