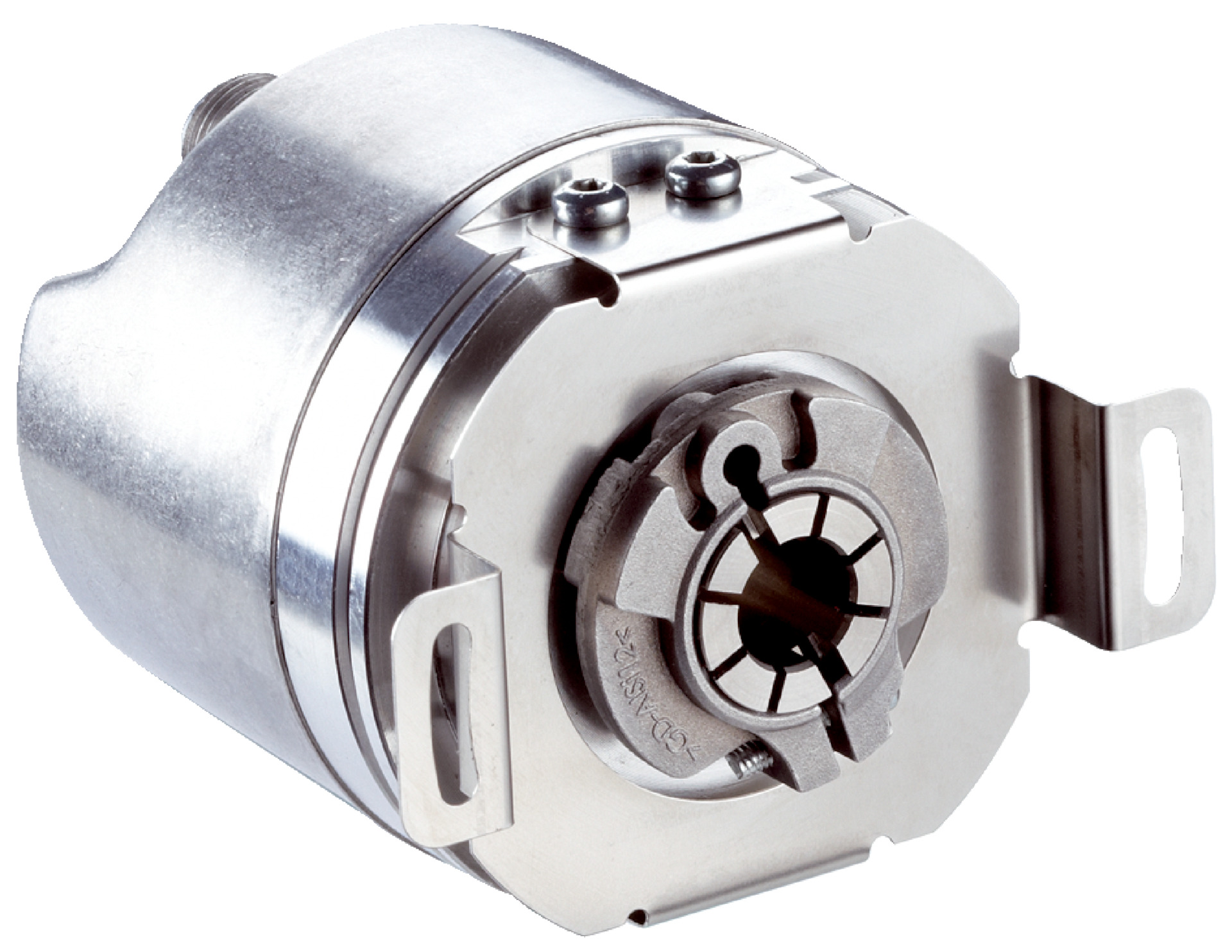

PROFIBUS DP Encoder A3M60A-BEPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
The PROFIBUS DP Encoder A3M60A-BEPB014x17 offers high resolution with 16,384 steps per revolution and robust IP67 protection, making it ideal for industrial automation and motion control applications. Designed for reliability, it features a stainless steel shaft and low power consumption, ensuring long-lasting performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Encoder A3M60A-BEPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1053332
Alternatively Known As: PROFIBUS DP Encoder, High-Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/revolution (14 bit) x 131,072 revolutions (17 bit)
- Error limits: 0.35° at room temperature
- Repeatability standard deviation: 0.15° at room temperature
- Communication interface: PROFIBUS DP with DPV0 / DPV1 / DPV2
- Data transmission rate: up to 12 MBaud
- Initialization time: approx. 1 second
- Connection type: 2x male M12 5-pin axial connectors, 1x female M12 5-pin axial connector
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft, 12 mm diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: 2 Ncm at +20 °C
- Operating torque: 1.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- PROFIBUS DP communication interface with DPV0 / DPV1 / DPV2 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated enclosure for protection against dust and water
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- High operating speed up to 6,000 min⁻¹ and long bearing lifetime
- Comprehensive diagnostics data available including speed, counters, and voltage monitoring
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with PROFIBUS DP systems and industrial encoders to ensure proper connection and configuration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60A-BEPB014x17 encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
