PROFIBUS DP Encoder A3M60A-BCPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
The PROFIBUS DP Encoder A3M60A-BCPB014x17 offers high-resolution measurement with 16,384 steps per revolution and a robust design featuring a stainless steel shaft. Ideal for industrial automation and motion control, this encoder ensures precise position and speed measurement, making it perfect for robotics and machine tool feedback systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

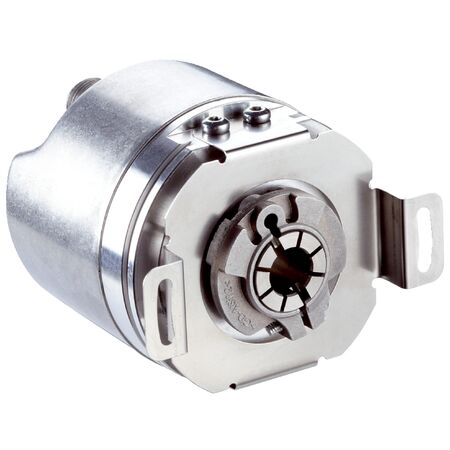

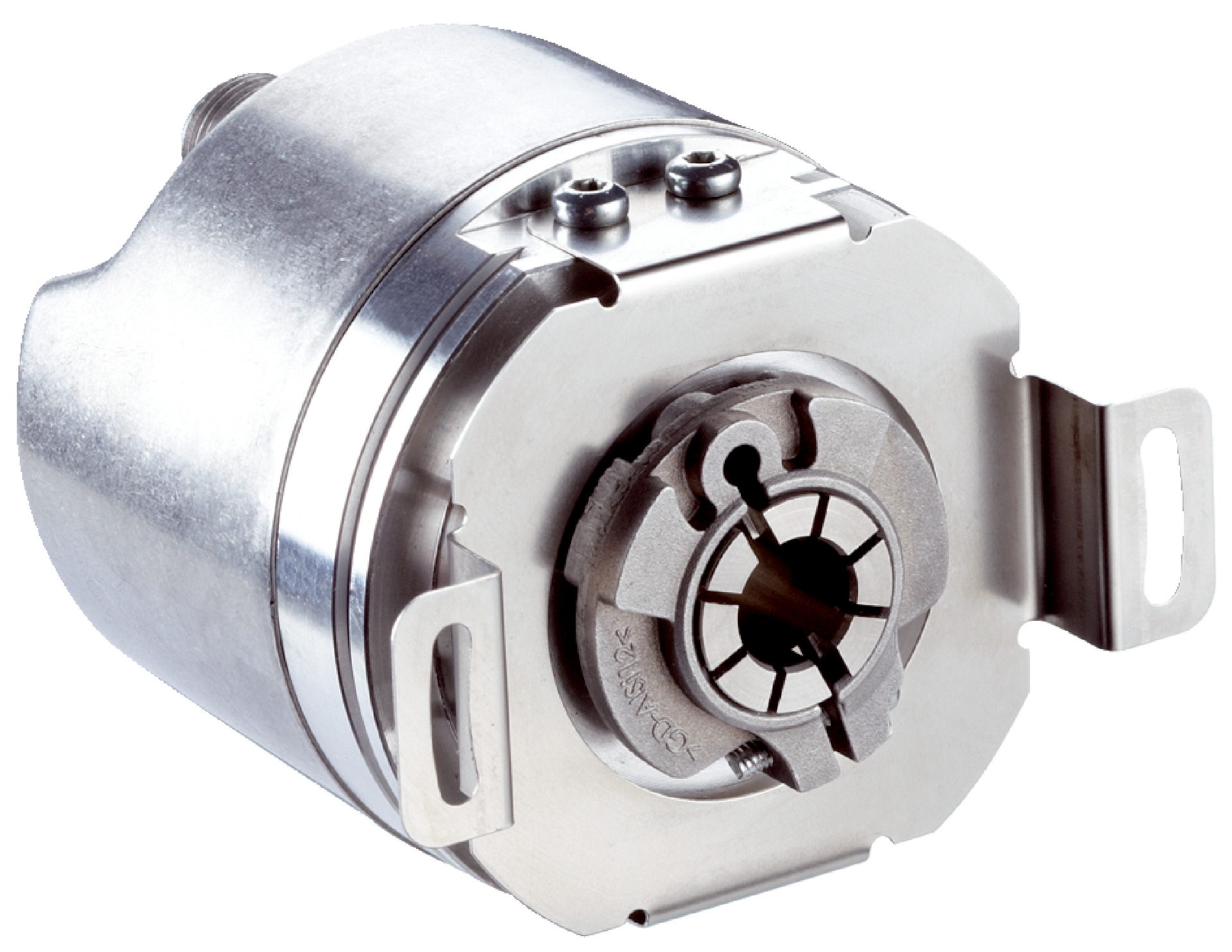

Product Name/Title: PROFIBUS DP Encoder A3M60A-BCPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1053334
Alternatively Known As: PROFIBUS DP Encoder, High-Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 131,072 revolutions (14 bit x 17 bit)
- Error limits G: 0.35° at room temperature
- Repeatability standard deviation σr: 0.15° at room temperature
- Communication interface: PROFIBUS DP (DPV0 / DPV1 / DPV2)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 s
- Parameterising data includes steps per revolution, revolutions, counting direction, sampling rate, speed output unit, round axis functionality
- Diagnostics data available: max speed, power-on counter, operating hour counter, movement counters, voltage limits
- Bus termination: DIP switch
- Connection type: Male connector 2x M12 5-pin axial, Female connector 1x M12 5-pin axial
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 3/8" diameter, front clamp
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 2 Ncm at +20°C
- Operating torque: 1.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Permissible relative humidity: 95% (no condensation)
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 80 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- PROFIBUS DP communication interface with DPV0 / DPV1 / DPV2 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated enclosure for protection against dust and water
- Wide operating temperature range from -30°C to +80°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High reliability with MTTFD of 60 years and bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Machine tool feedback systems
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60A-BCPB014x17 encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
