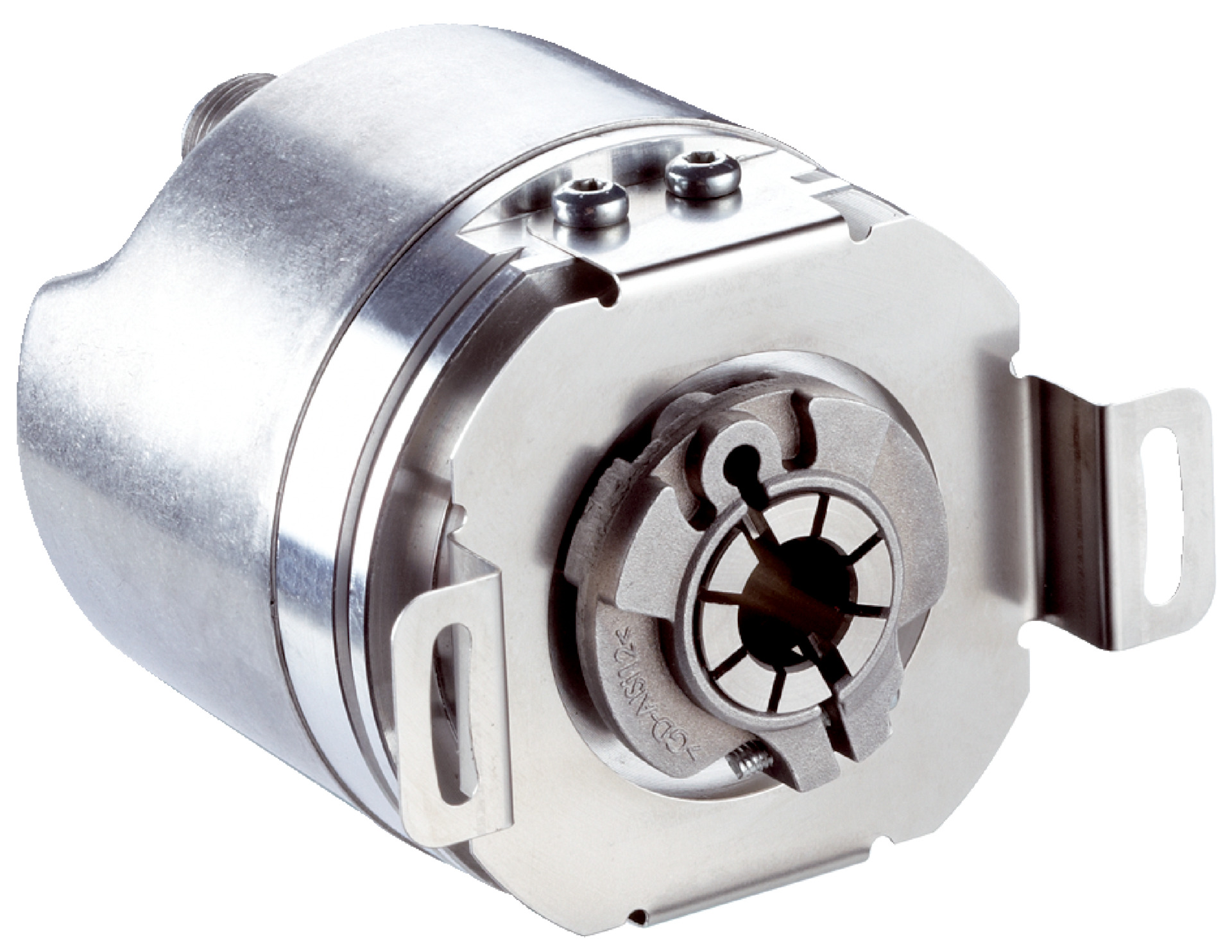

PROFIBUS DP Encoder A3M60A-BJPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
The PROFIBUS DP Encoder A3M60A-BJPB014x17 delivers high precision with a maximum resolution of 16,384 steps per revolution and robust IP67 protection against dust and water. Ideal for industrial automation, robotics, and motion control systems, this encoder features a fast initialization time of approximately 1 second and low power consumption, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFIBUS DP Encoder A3M60A-BJPB014x17 | 16,384 Steps/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1053337
Alternatively Known As: PROFIBUS DP Encoder, High-Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 60 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 131,072 revolutions (14 bit x 17 bit)
- Error limits G: 0.35° at room temperature
- Repeatability standard deviation σr: 0.15° at room temperature
- Communication interface: PROFIBUS DP (DPV0 / DPV1 / DPV2)
- Data transmission rate: ≤ 12 MBaud
- Initialization time: Approx. 1 second
- Supply voltage: 10 to 32 V
- Power consumption: ≤ 1.5 W
- Connection type: Male and female M12, 5-pin axial connectors
- Mechanical design: Blind hollow shaft, 5/8 inch diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -30 °C to +80 °C
- Enclosure rating: IP67 (shaft and housing side)
- Resistance to shocks: 80 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.28 kg
Key Features
- High resolution with 16,384 steps per revolution and 131,072 revolutions
- PROFIBUS DP communication interface with DPV0 / DPV1 / DPV2 support
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated enclosure for protection against dust and water
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- Fast initialization time of approximately 1 second
- Comprehensive diagnostics data available including speed, counters, and voltage monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK A3M60A-BJPB014x17 encoder is available for immediate purchase, ideal for industrial automation and control applications requiring high precision and reliability.
